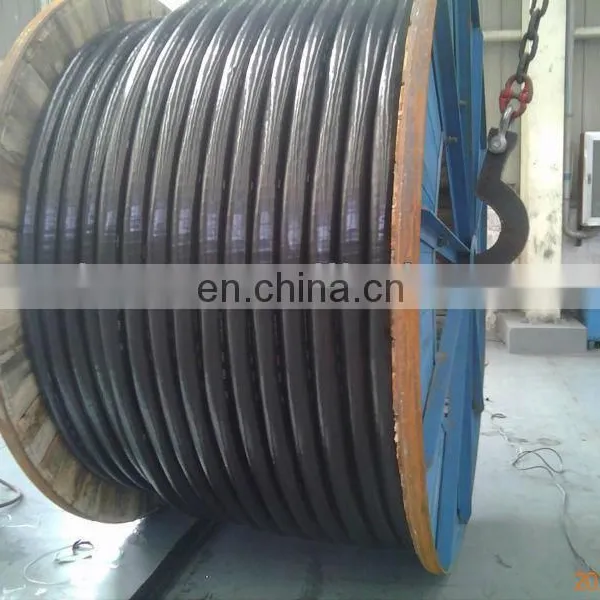

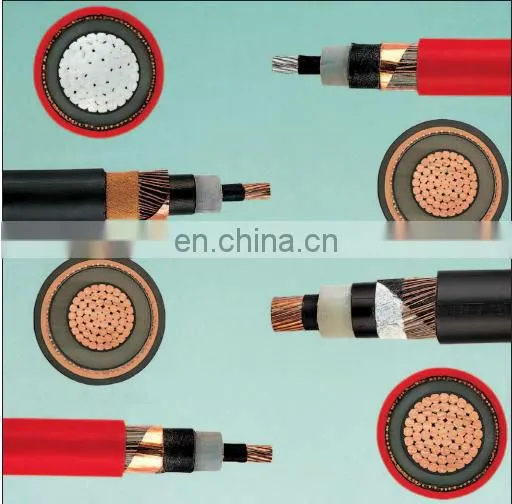

Help CenterHot Sale 4 Core 50mm2 Armoured Power Cable
Related Products
-
Copper Conductor 35kV High Voltage Xlpe Power CableNegotiableMOQ: 1 -
Single Core 3 Cores XLPE Insulated High Voltage Power Cable 35KV 120mm2 150mm2 185mm2 240mm2 300mm2 400mm2 500mm2 630mm2NegotiableMOQ: 1
-
Fire Resistant Shielded Cable Copper Flexible ConductorNegotiableMOQ: 1
-
CHINA Medium Voltage 35KV XLPE Insulated Power Cable for VietnamNegotiableMOQ: 1
-
PVC/XLPE Power Control CableNegotiableMOQ: 1
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products include as belows:
1: AAC, ACSR, AAAC, guy wire
2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cables
PVC/XLPE Insulated Power Cable,producing under IEC,BS,ASTM,DIN and OEM basis
0.6/1kV, 20KV power cable, copper power cables (plastic power cable) is one of high quality products of our company. The product not only has good electric capability, but also has good chemical stabilization, simple structure, easy to use, and the laying of cable do not be limited by the fall. It is widely used at the transformer circuit which rated voltage is 6000V or under. standard power cable size: 70mm2 power cable.
The product is produced against IEC60502 and IEC60331, . And the product can be produced against the standard of BS, DIN, and the standard required by the clients.
1. The long-term permissible operation temperature of the conductor shall not be higher than 70.
2. The max temperature of the conductor of cable should less then 160 when short circuit. (less then 5 second).
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
6. Rated voltage: 0.6/1kV, 3.6/6kV.
7. Number of cores: One, two, three, four, five.
|
Type |
Name |
Usage |
|
VV |
PVC insulated PVC sheathed power cable |
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force |
|
VLV |
||
|
VY |
PVC insulated and PE sheathed power cable |
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
|
VLY |
||
|
|
PVC insulated steel belt armored and PVC sheathed power cable |
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
|
VLV22 |
||
|
VV23 |
PVC insulated steel belt armored and PE sheathed power cable |
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
|
VLV23 |
||
|
VV32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force |
|
VLV32 |
||
|
VV33 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground .Cable can under take mechanism outside force |
|
VLV33 |
||
|
VV42 |
PVC insulated thick steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground,mining well. Cable can under take mechanism outside force |
|
VLV42 |
||
|
VV43 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground,mining well and the places of be terrible polluted. Cable can under take mechanism outside force |
