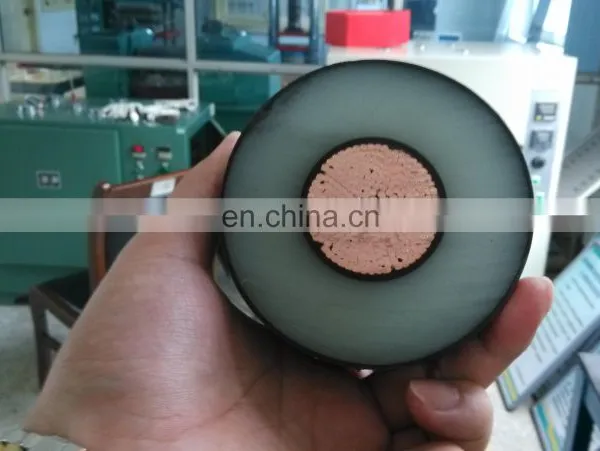

high voltage xlpe power cable
High Voltage and extra High Voltage, The cables High Voltage team has gained overall international experience. The construction is as following:
The Cables
Design and manufacture
A wide variety of high voltage cable designs is offered by aobest cables to provide most economic solutions. Various types of conductors, insulation, metallic screening and sheathing, corrosion protective layers etc. are available.
Conductors
The cable conductors can be made of copper or aluminium. The choice is a matter of
customer's preference or current carrying capacity. Large size solid conductors are
made of aluminium.
Available conductor constructions:
(1)round solid conductors up to 2000 mm2 (RE)
(2)circular stranded compacted conductors up to 1200 mm2 (RM)
(3)circular conductors with shaped wires up to 2000 mm2 (RM, Keystone conductors)
(4)segmental conductors up to 2500 mm2 (RMS, Milliken conductors)
(5)oval shaped stranded compacted conductors up to 800 mm2 for external gas
pressure cables (OM)
The conductors are manufactured to meet the requirements of the relevant national and
international standards. For special applications the conductors can be made watertight.
Insulation
The insulations for low pressure oil filled cables and for conventional pipe type cables
are lapped from high quality insulating papers. Subsequently the paper insulated cable cores are impregnated in appropriate vessels with low viscous oil or high viscous
compound.
For manufacture of XLPE insulated high voltage cables, AOBEST cables disposes of four extrusion lines. Highest quality standards together with latest process control equipment
and combined with decades of experience ensure manufacture of cables meeting the highest requirements and enabling development of most advanced power cable systems.
Metallic Covering
Conventional paper insulated cables require a pressure proof and watertight metallic
enclosure, acting also as metallic screen. At AOBEST cables both, extruded lead sheath as
well as the aluminium sheath can be applied. These types of metal sheaths are, of course,
also used on XLPE insulated cables. While the lead sheath leads to smaller dimensions, the aluminium sheath provides high short circuit current carrying capability and lower weight.
As the XLPE insulated cables do not require an internal overpressure, they are usually
equipped with a copper wire screen. For radial moisture barrier a coated aluminium foil is longitudinally applied. The combination with the polyethylene oversheath is called aluminium polyethylene laminated (APL) sheath. This solution provides high short circuit capability and watertightness combined with lowest weight and smallest dimensions.
A combination of the copper wire screen with a metal sheath is also possible. For all XLPE insulated high voltage cables, the space between cable core and water barrier is made longitudinally watertight.
Oversheath
An extruded polyethylene sheath is provided as the standard solution. With respect
to its excellent mechanical strength it is the optimum for buried cables. If required,
a conductive layer can be provided on the outside. For special applications different
sheathing material may be used, optimized for the purpose.

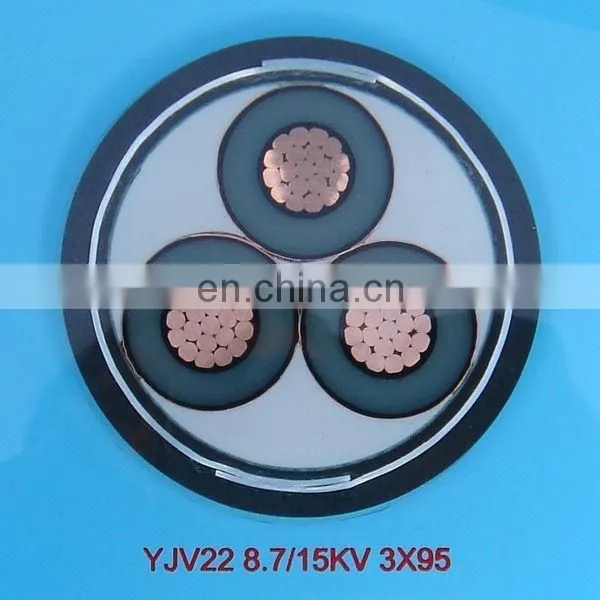

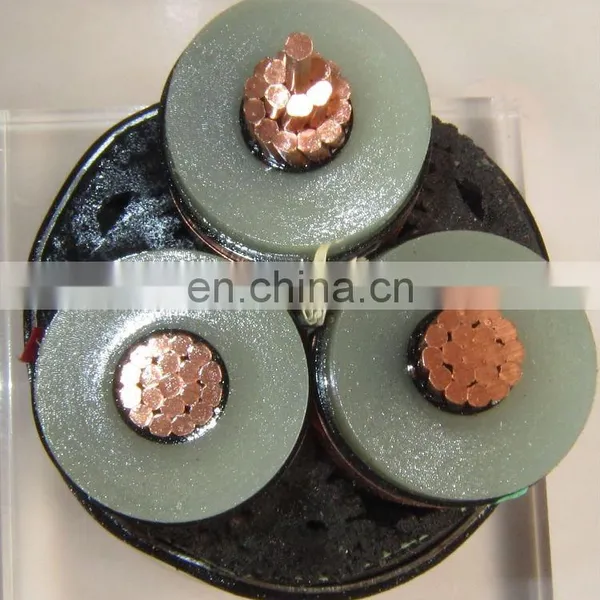

Cabling and Armouring
For the conventional pipe type cables as well as for the City Cable, laying-up of the
three cores and provision of the strong steel armour is an essential feature. Therefore,
AOBEST cables disposes also of the appropriate machinery to carry out these production steps.
