Product Introduction
At present, in most magnetic material production processes, the accuracy and consistency of the magnetization direction of the material are not critical. However, as the application of magnetic materials becomes wider and wider, the accuracy of permanent magnets is getting higher and higher. Compared with the requirements of traditional magnetic materials, the new application technology has more special requirements for the magnetic performance of permanent magnets. Because the final magnetization vector direction (magnetic declination) of permanent magnets has an extremely important impact on the performance of precision magnetic components, permanent magnets The magnetic declination angle of a magnet is an important indicator to measure the performance of permanent magnets. The FE-2100AM permanent magnet magnetic declination measuring instrument provides a set of effective measurement solutions for enterprises to solve the production of high-end magnetic materials.

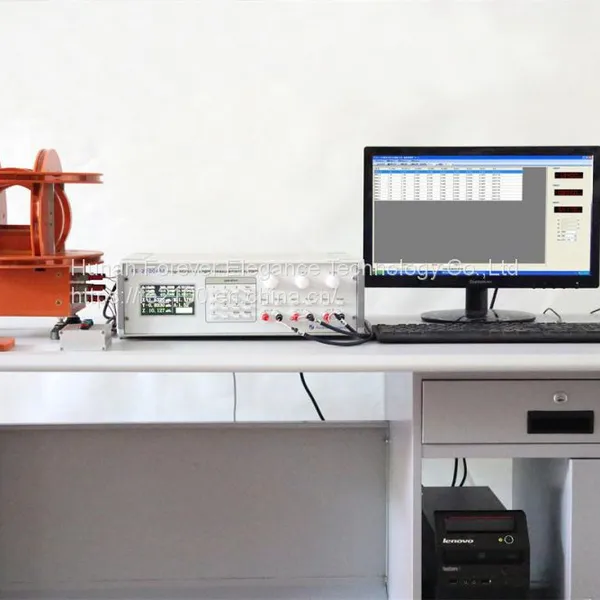

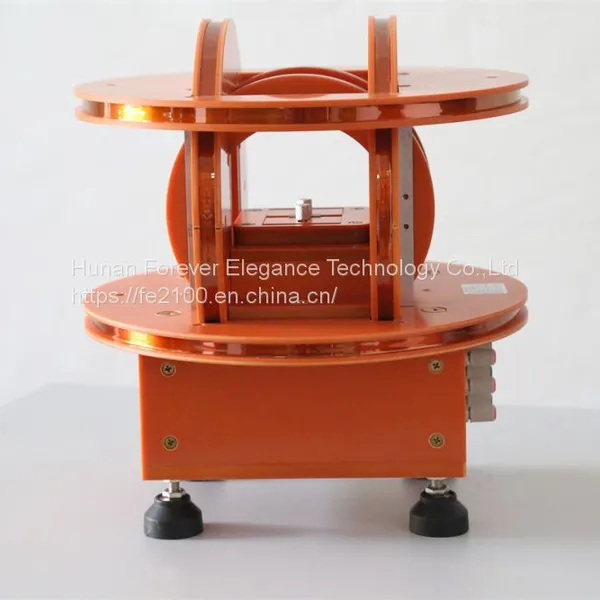

The FE-2100AM permanent magnet magnetic declination measuring instrument is composed of a three-dimensional Helmholtz coil connected to an independent three-component flux meter, which constitutes the hardware test part. The three-component test data is converted by a computer to form a complete set of permanent magnets. Material quality testing system. Put the magnet on the sample table, test the magnetic flux component by the pulling method, and obtain the magnetic moment and the deviation angle of the magnetic field in the direction of the main axis by calculation. It can display the total magnetic moment M, the spindle magnetic deflection angle α, Øx, Øy, Øz and the coil constant of the corresponding test coil.
Instrument characteristics

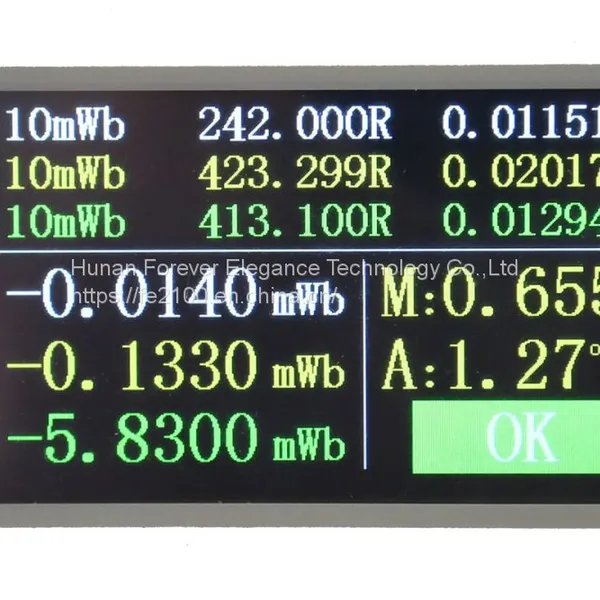

● Directly display the magnetic flux of the three-fluxmeter;
● Directly display the magnetic declination angle θZ of the tested sample;
● The magnetic declination angle θZ can be compared with the set value to judge whether the product is qualified or not, or to classify high-precision products;

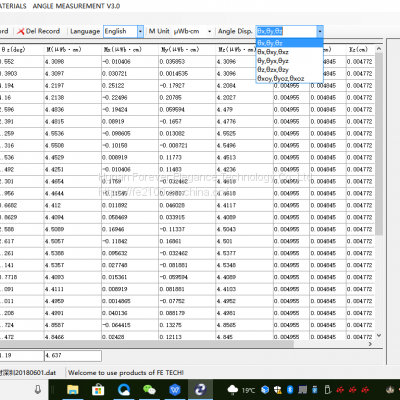

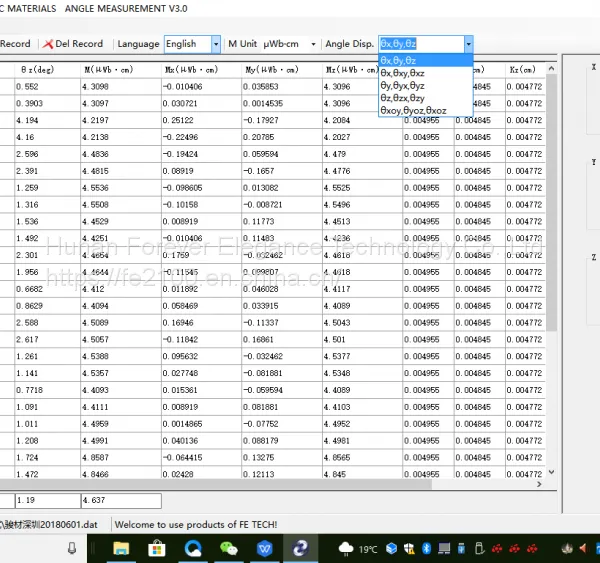

● It can be tested online by a single machine or connected with a computer to test and save the test data;
● Test uncertainty of magnetic moment M: 0.5%, repeatability: ±0.1%;
● Uncertainty of magnetic declination θZ: 0.2° (fix the relative position of the sample and the coil);
● Test repeatability: ±0.1°;
● Software intelligent correction: solve the problem of the influence of fluxmeter drift, initial zero point and coil resistance on integration
