Product Introduction
As people's demand for the quantity and quality of motors has also been greatly improved, these have put forward higher requirements for the production of multi-pole magnetic rings. How to develop and produce high-quality multi-pole magnetic rings, how to identify the quality of multi-poles, and how to use magnetic rings to design high-quality motors all put forward higher requirements for the inspection of magnetic rings. In the past, the manual method of combining simple fixtures was far from being able to meet the requirements of use because of large errors, low accuracy, long time-consuming, and few inspection indicators. Yongyi Technology Co., Ltd. is focusing on these aspects, using computer control and data collection, and combining the actual needs of users to develop this system.

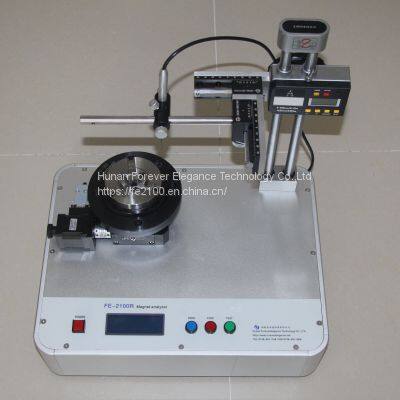

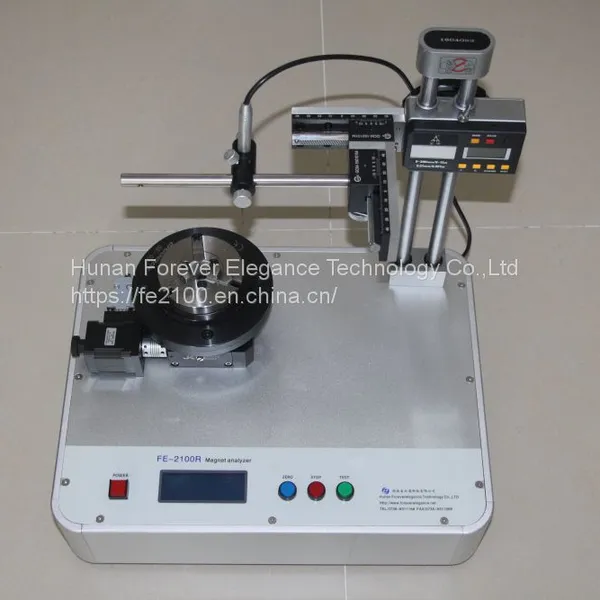

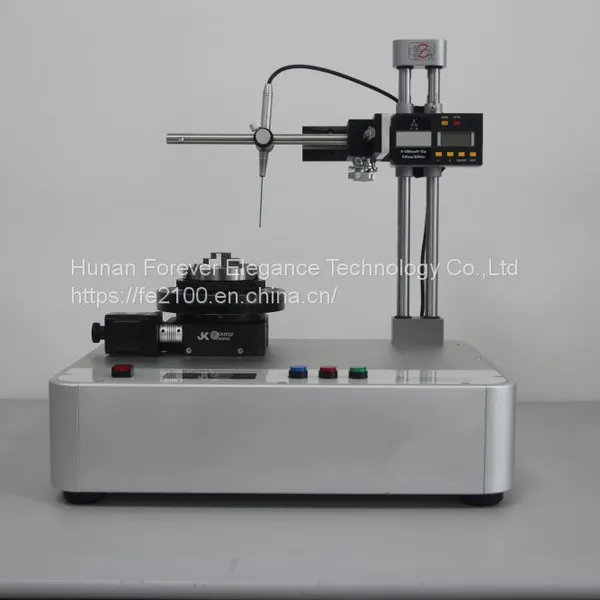

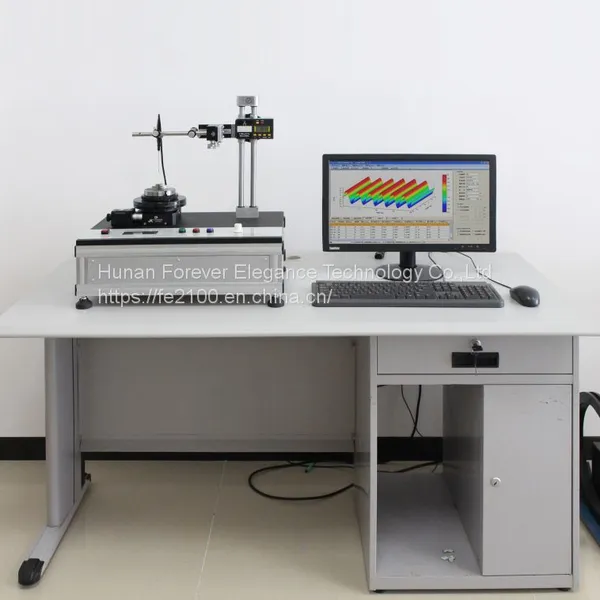

The FE-2100R type magnetic field distribution measuring device (manual model) combines the actual needs of multi-pole magnetic ring manufacturers and motor enterprise users. After careful design of the test bench body and precise control of the motor, it is excellent to accurately measure the surface magnetic field distribution. product. It is an indispensable tool for the correct evaluation of the magnetization accuracy of the magnet and the quality inspection of the magnetic ring.

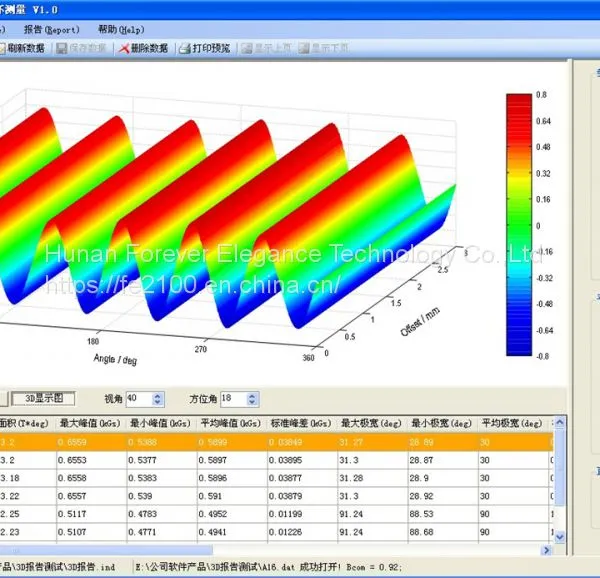

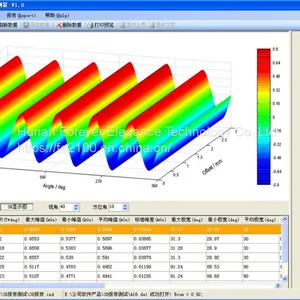

can provide test reports such as XY coordinates, P polar coordinates, 3D magnetic field distribution and harmonic analysis relative to the fundamental wave to provide accurate magnetic field distribution data for motor design. The high-concentricity design and the high-precision level of the probe return are the guarantee of the quality of the equipment. The self-developed three-dimensional testing software has a fast refresh rate and a full-scale display of the spatial magnetic field distribution. The comprehensive performance of the product has reached the international advanced level.
Instrument characteristics
● According to the different needs of users, custom-developed instruments with different types of needs can be developed

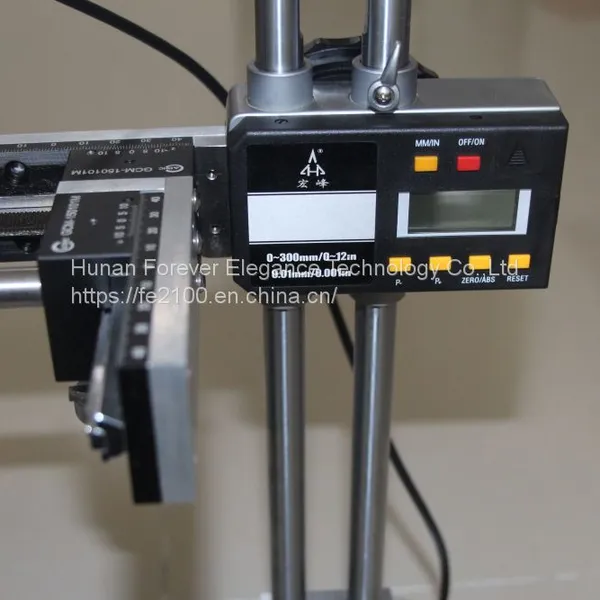

● Use transverse probe to measure the inner and outer surface of multi-pole magnetic ring
● Use horizontal or vertical probe to measure the end face of multi-pole magnetic ring
● Using optical electric translation stage, running more smoothly, model: 01RS002, transformation ratio 1:180
● Use Taiwanese three-jaw chuck, rotation concentricity: 0.01mm, overall concentricity is better than: 0.05mm
● The highest number of test points for precision measurement is 36000 steps/revolution, and the test time can be adjusted from 30 to 60 seconds
● Harmonic analysis can be performed on the test waveform, and each harmonic component data can be output
● Automatically judge the number of poles of the magnetic ring and the polarity of the magnetic poles
● The test results include the peak value, angle, area, width and half-height of each magnetic pole
● Display the maximum, minimum and average values of the peak magnetic field of each pole, with automatic measurement function
● Display the maximum, minimum and average value of the magnetic pole width of each pole, with automatic measurement function
● Display the measured value of each magnetic pole area and half-height width, with automatic measurement function
● With automatic change function and with anti-shake invalid data elimination function
● Automatic output of single-week XY coordinates, polar coordinate chart report function
● For the same sample, combine test points and display the radial three-dimensional magnetic field distribution at the corresponding position along the Z axis
● Parameter output function of each magnetic pole angle, width, peak value, half-height width, duty cycle, etc.
● Data collection is divided into 0.2k/0.4k/1k/2k/4k/10k/20kGs seven automatic ranges, which is more accurate and reliable
