Product Introduction

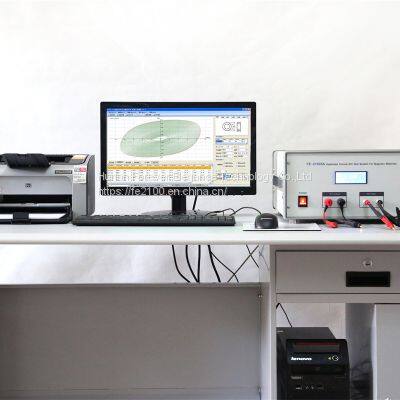

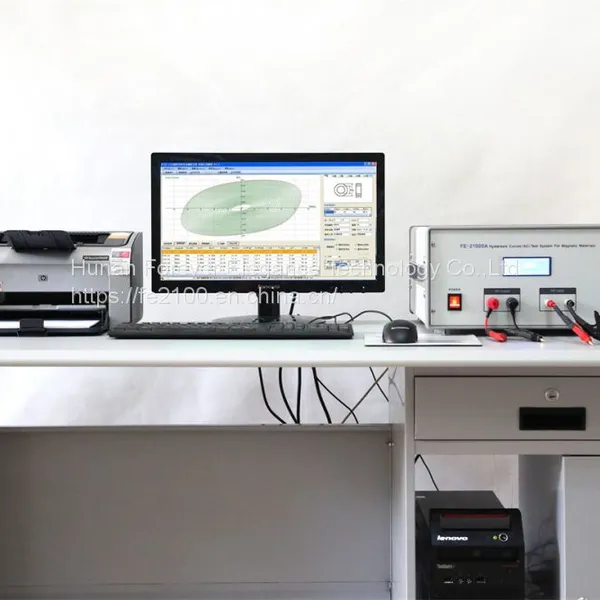

FE-2100SA soft magnetic AC measuring device can be used to accurately measure closed-circuit samples of soft magnetic materials such as soft ferrite, permalloy, amorphous and nanocrystalline.

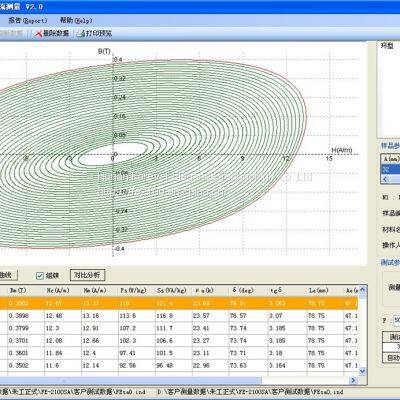

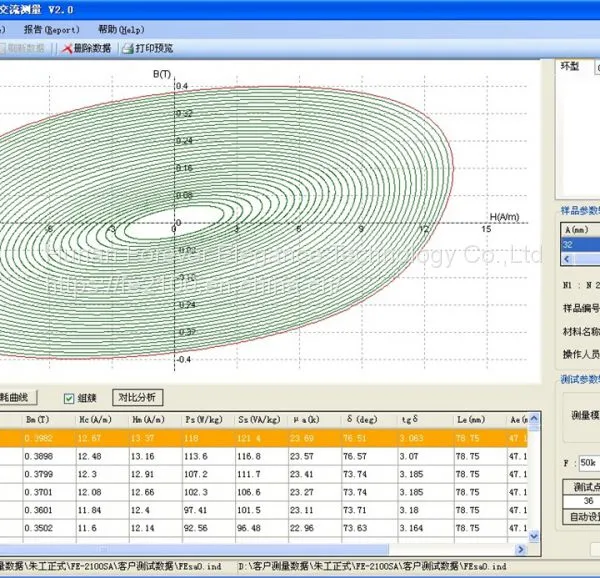

The products meet the requirements of GB/T3658-2008, GB/T19346-2003, SJ20966-2006, and IEC 60404-6. Automatically measure the AC hysteresis loop, magnetization curve and loss curve of soft magnetic materials under dynamic (AC) conditions. Accurately measure residual magnetism Br, coercive force Hc, specific total loss Ps, amplitude permeability µa, loss angle δ, resistive permeability µR, inductance permeability µL, elastic permeability µ′, viscous permeability µ ”, inductance coefficient AL and Q value and other dynamic magnetic characteristic parameters. It provides powerful basic data for fully grasping the AC characteristics of the material, and the measurement process is automatically completed; the power supply is protected, overcurrent and overvoltage are automatically interrupted, and the reliability is high.
Using advanced AMR single-chip processing technology, it can automatically and continuously measure up to 255 test points. The test time of each test point is about 12 seconds. Multi-point test can choose different modes such as fixed frequency, fixed Bm or fixed Hm, and the AC magnetization curve is measured. And loss curve.
Applicable standards for FE-2100SA soft magnetic AC measuring device
● GB/T 3658-2008 Measurement method of AC magnetic properties of soft magnetic material ring sample
● GB/T 9632.1-2002 Magnetic core measurement method of inductors and transformers for communication
● GB/T 19346-2003 Amorphous nanocrystalline soft magnetic alloy AC magnetic properties test method
● SJ 20966-2006 soft ferrite material measurement method
● IEC 60367-1 Communication inductor and transformer core measurement method
● IEC 60404-6 Measurement method of AC magnetic properties of soft magnetic material ring sample
Hardware features of FE-2100SA soft magnetic AC measuring device
● Digital signal synthesis technology to generate wide-frequency excitation signal;
● Using closed-loop feedback technology, arbitrary frequency and magnetic induction lock measurement;
● The mature power amplifier circuit ensures the long-term and reliable operation of the excitation power supply;
● High-speed acquisition card to ensure the accuracy of voltage and current acquisition;
● Automatic calculation of effective magnetic circuit length and area for conventional samples;
● The power supply can be expanded for special requirements;
● The test frequency can be expanded for special requirements;
Hardware features of FE-2100SA soft magnetic AC measuring device
● Run under Windows 2000/XP, Winxp/NT/7/8 operating system.
● The company's software products have obtained software certificates with independent intellectual property rights.
● Fixed frequency F locks different Bm/Hm for testing.
● Fixed magnetic induction Bm/Hm to lock different frequency measurement.
● The software is suitable for the measurement of AC magnetic characteristics in a wide range of compatible power frequency conditions.
● Can directly print or output the test results to an Excel table.
● You can print the test report directly or print the test report in image format.

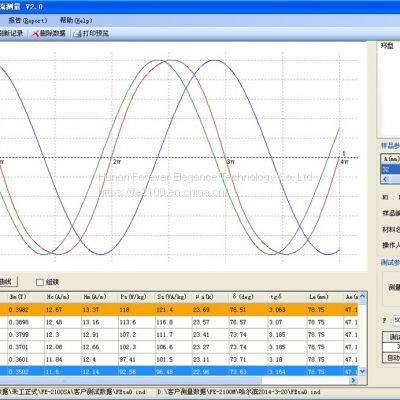

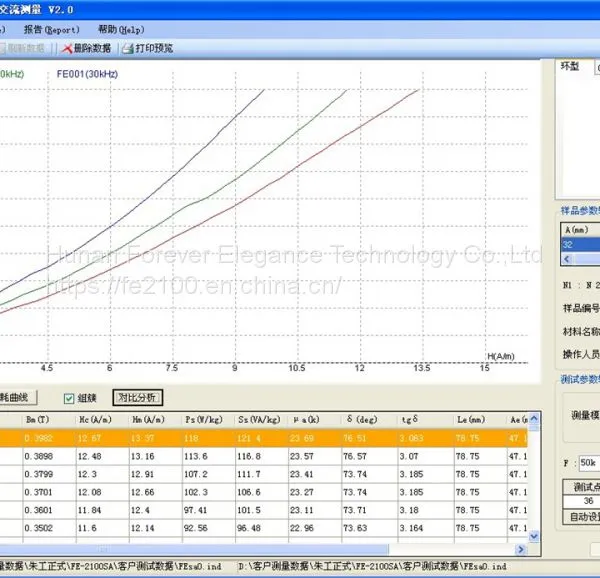

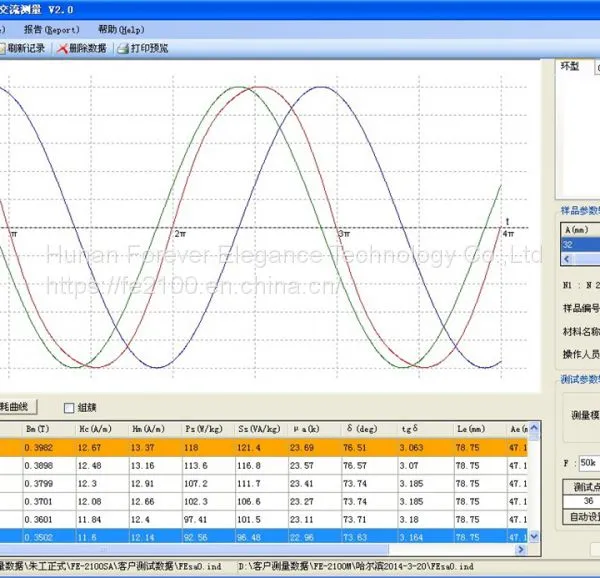

● Automatically measure B-H, B-P, ua-H, ua-F, P-F, etc. of soft magnetic materials under dynamic (AC) conditions.
● It can be in both Chinese and English format, and it is convenient to add user logo and company name.
● There are a variety of unit systems to choose from to ensure the usage habits of different users.

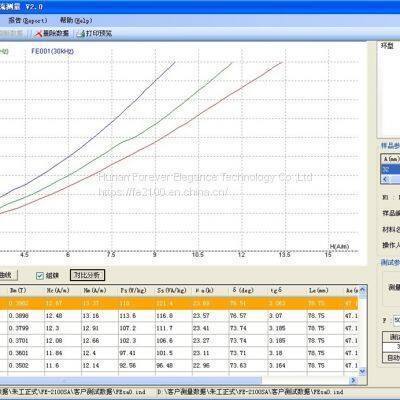

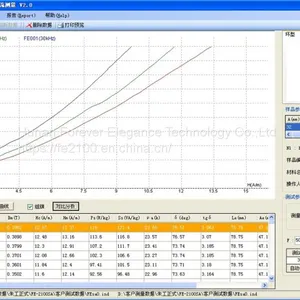

● Multi-point clustering can be performed to display the B(H) magnetization curve cluster and Ps(B) loss curve cluster; the B(H) magnetization curve and Ps(B) loss curve measured under different conditions can be combined into one On a drawing for comparative analysis.
● The software has a sorting function, and the upper and lower limits can be set according to parameters such as μa, Ps, Bm, Br, Hc, and Hm.
