Product Introduction
FE-210B Fluxmeter is a professional magnetic measuring instrument developed and produced by Hunan Yongyi Technology Co., Ltd. Based on a simple and practical design concept, we are committed to designing easy-to-operate, functional and practical magnetic measurement products for users. The instrument is designed with practical functions such as polarity judgment.
FE-210B FLUXMETER digital flux meter is a precision magnetic measuring instrument designed and produced with low-drift electronic integration devices. The test response is complete, no data is lost during the test, high test accuracy, low drift, etc. are the main features of this instrument. In the magnetic passing process of the sample tested by the pulling method, the fast and slow pull data can be matched, and the repeated measurement and the recovery test show excellent characteristics.

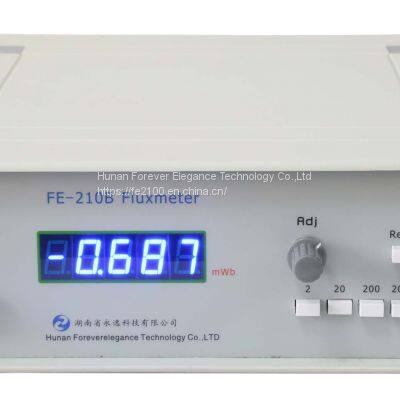

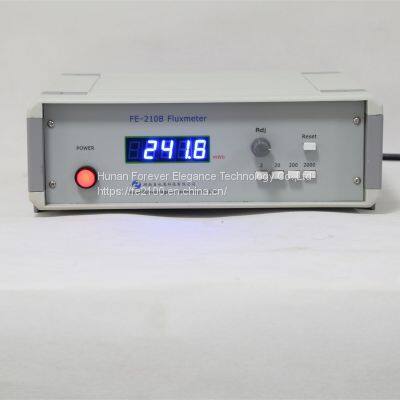

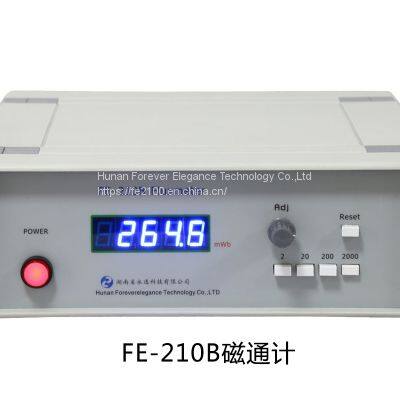

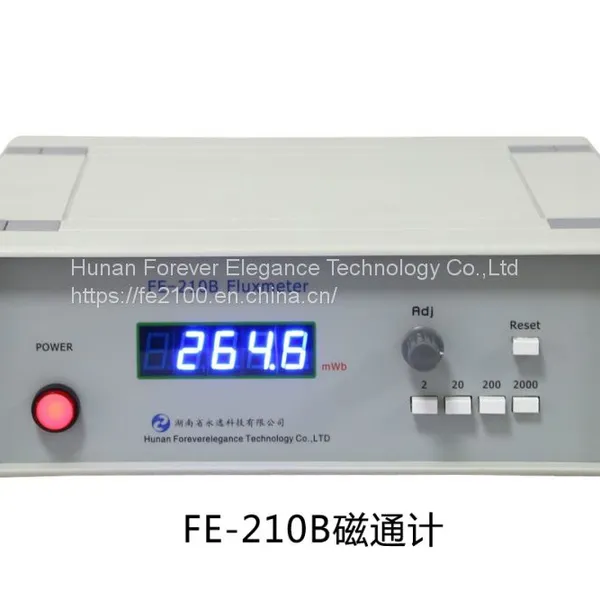

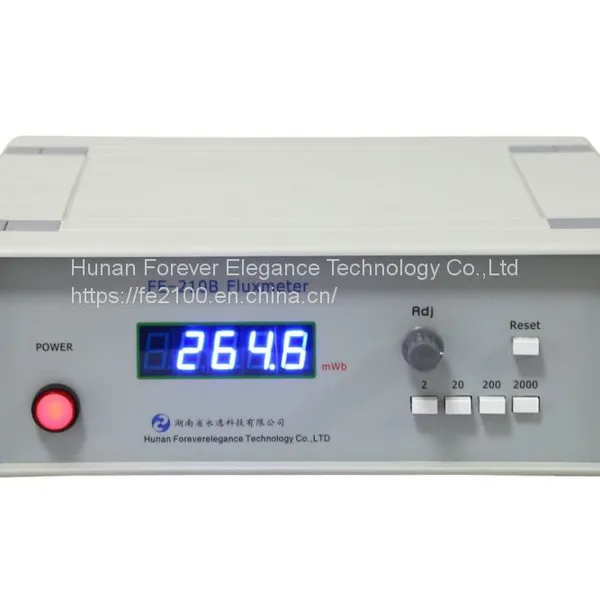

FE-210B FLUXMETER Digital Fluxmeter
Features
● Directly read magnetic flux data;
● Judge the integration direction through the + and-signs;

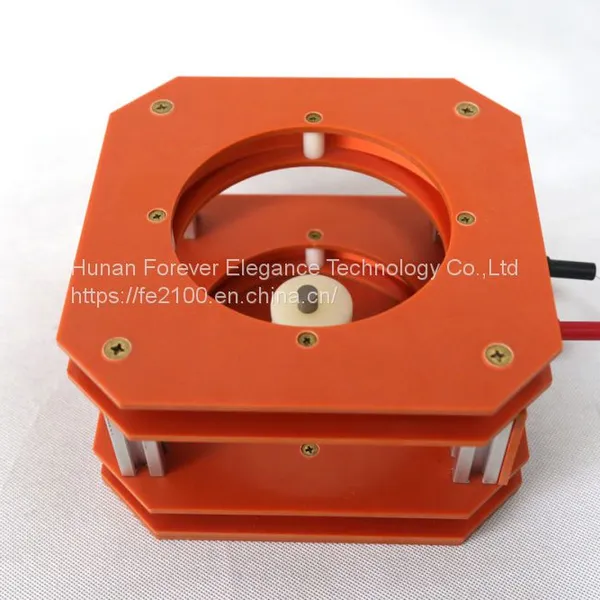

● Suitable for configuring different integrating coils and tooling;
● The drift is less than 1uWb per minute, and the adjustment is stable and accurate;
● High input impedance, the test is less affected by the coil;
● Inspection of conventional DC magnetic field;
Technical index
● Test range: 2mwb, 20mwb, 200mwb, 2000mwb four gears (can be changed as needed);
● Corresponding input impedance: 1k ohm, 10k ohm, 100k ohm, 1000k ohm;
● Power supply: AC 220V/0.5A;
● Test accuracy: 0.5%;
● Drift: 1uWb/min;
● Minimum resolution: 0.1uWb (corresponding to 2mwb range);
● Volume: 285mm×300mm×100mm, weight: 3kg; (width * depth * height);
● Operating environment: 0℃ to +50℃, humidity: 35～80%;
