Product Introduction

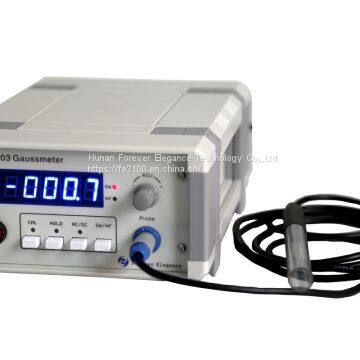

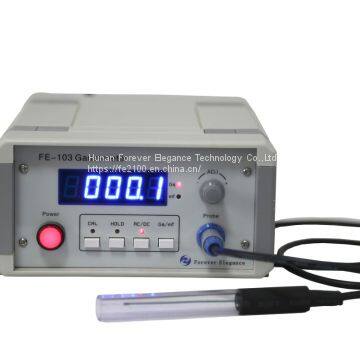

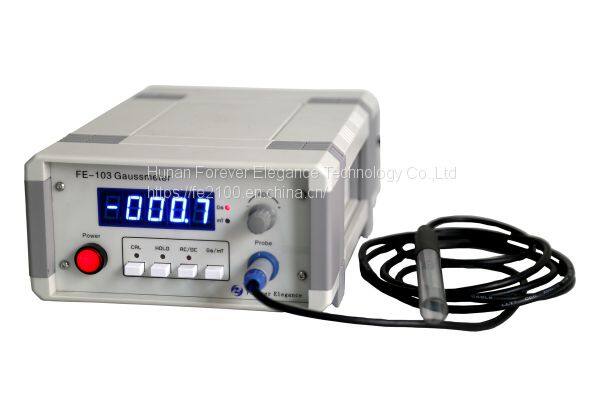

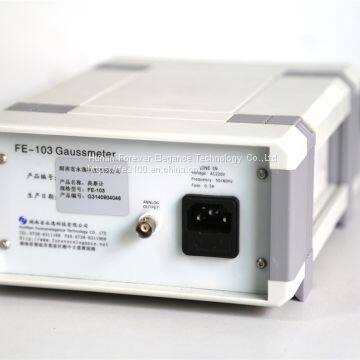

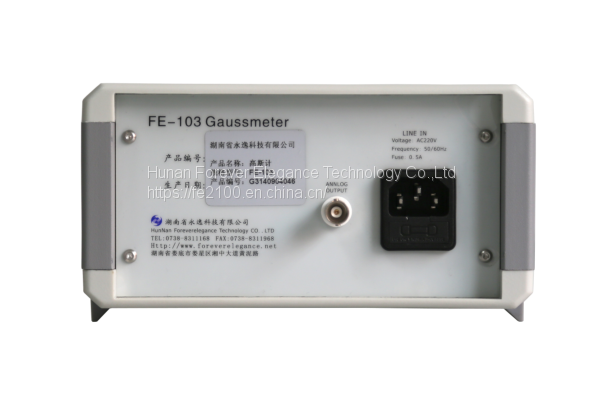

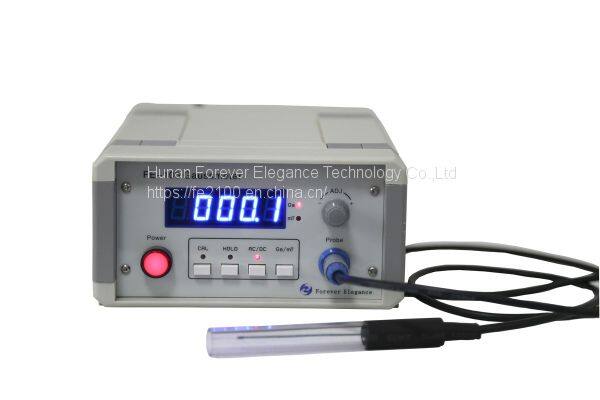

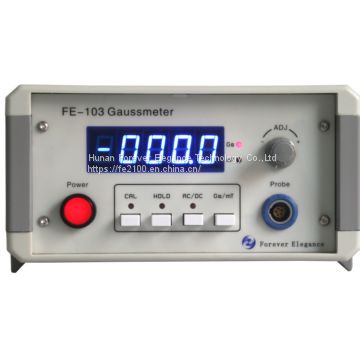

FE-103 portable digital Gauss meter can be used to measure the magnetic induction intensity of various magnetic fields such as AC and DC magnetic fields, radiated magnetic fields, residual magnetism, earth's magnetic field, etc. The instrument has a wide range, convenient operation, perfect quality assurance, and high-quality after-sales service. It is an ideal choice for your work.
Gauss meter is a special instrument for detecting the magnetic induction intensity of a magnet, and it is one of the most widely used measuring instruments in the field of magnetic measurement.
FE-103 Gaussmeter is a benchtop Gaussmeter designed and manufactured based on the new development of the Hall effect magnetic field strength measuring instrument, using high-stability constant current source circuit technology. The test probe adopts imported GaAs linear Hall chip, the difference between the probes is very small, and the user can directly replace it if it is damaged. It is an ideal AC and DC magnetic field test instrument. The instrument has functions such as AC and DC measurement, peak hold, and north and south pole judgment. It can be used for the inspection of AC and DC magnetic field and the peak of magnetic field, the distribution of AC and DC magnetic field, the inspection of permanent magnet magnetization, the inspection of magnetic field distribution in AC and DC coils, the inspection of the gap magnetic field of AC and DC electromagnets, and the inspection of conventional AC and DC magnetic fields. .
Features
● Directly read the data of the magnetic field;
● AC/DC magnetic field judges N/S polarity through + and-signs;
● With calibration function to facilitate the user to replace the probe;
● One-key mT/Gs unit conversion;
● One-key AC/DC magnetic field test conversion;
● One-key lock and release of magnetic field peak value;
● With analog output to facilitate user expansion;
Scope of application
● AC and DC magnetic field inspection and magnetic field peak value inspection;
● Permanent magnet magnetic field distribution inspection;
● Inspection of permanent magnet magnetization;
● Inspection of magnetic field distribution in AC and DC coils;
● Inspection of the gap magnetic field of AC and DC electromagnets;
● Inspection of conventional AC and DC magnetic fields;
