Home > Products > Turntable Bearing > Harbour Crane Use Slewing Ball Teeth Bearing RKS.22 1091 1198x986x56mm

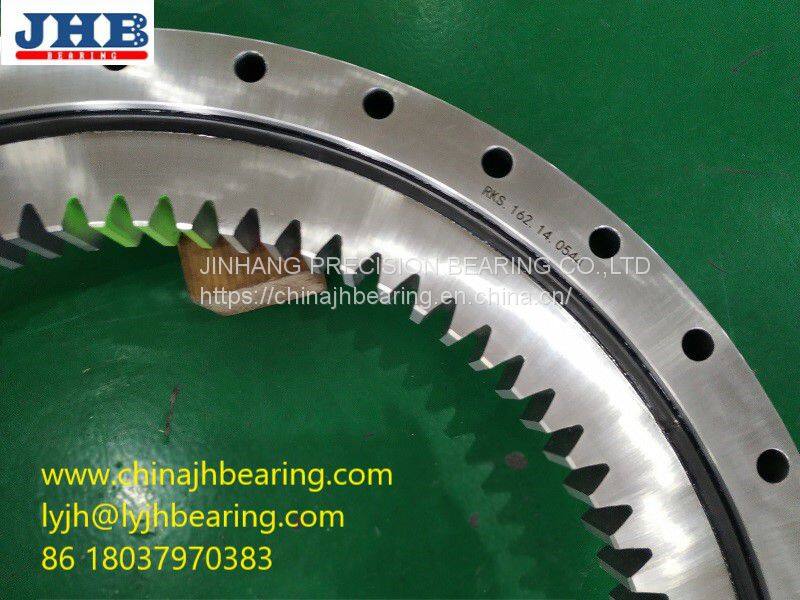

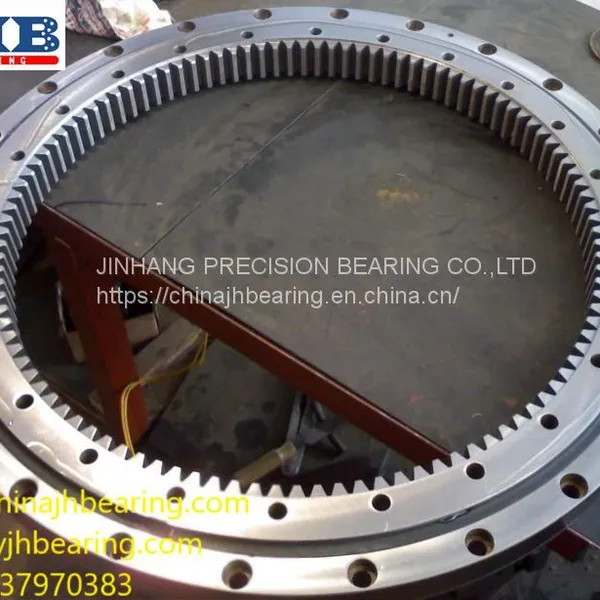

Harbour Crane Use Slewing Ball Teeth Bearing RKS.22 1091 1198x986x56mm
- SHANGHAI
- T/T
- 30 days
You May Like
-
010.30.500 Four Point Contact Ball Slewing Bearing 602x398x80mm Mining Machine Use
-
Slewing Bearing 010.35.440 the Dimension:550x320x85mm
-
010.35.559 Four Point Contact Ball Slewing Bearing Without Teeth 431.8x695.452x90.932mm
-
011.20.250 Belong to Four Point Contact Ball Slewing Bearing With External Teeth 352x170x60mm
-
Offer 013.32.1405 Four Point Contact Ball Slewing Bearing With Internal Gear 1525X1235X119mm
-
061.25.1120.301.11.1523 Four Point Contact Ball Slewing Bearing With External Gear 1013X1278X79mm
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | RKS.22 094 | Feature | Four Point Contact | |
| Seals Type | doulbe seal | Outside Diameter | 1198, | |
| Bore Size | 986, | Gear Options | Nongeared |
Product Description
Harbour crane use slewing ball teeth bearing RKS.22 1091 1198x986x56mm
Product Name: | Slewing bearing turntable bearing slewing ring swivel bearing |
Model: | RKS.22 1091 |
Old model: | RKS.22 1091 SKF bearing code |
Price: | USD100 to 500 |
Min qty: | 4PCS |
Production Capacity: | 200000PCS/Month |
Payment term: | T/T,WU,LC |
Delivery time: | 30-45 days |
Shipping Ways: | By sea by air FedEx/DHL,UPS available |
Port: | Shanghai /Qingdao seaport |
Transport Package: | Carton+Wooden case |
Country of Origin: | China |
Keywords: | RKS.22 1091 bearing, RKS.22 1091 bearings,1198x986x56mm ball bearing, RKS.22 1091 china bearing factory |
Structure: | Light series four-point contact ball slewing bearings with an internal gear |
Number of Rows: | single rows |
Units: | mm |
Inside Diameter: | 986mm |
Outside Diameter: | 1198mm |
Thickness/Width: | 56mm |
Boundary/size: | 1198x986x56mm |
HS Code: | 8482800000 slewing bearing |
Basic load rating C :(KN) | 244 |
Basic load rating Co:(KN) | 766 |
Teeth parameter | d0=1000mm m=8 z=125 |
Teeth structure | internal teeth |
Brand: | JHB or OEM |
Weight:(kgs) | 80 |
Clearance: | C1 C2 C0 C3 C4 |
Bearing Material: | Steel Chrome GCr15 GCr15SiMn |
