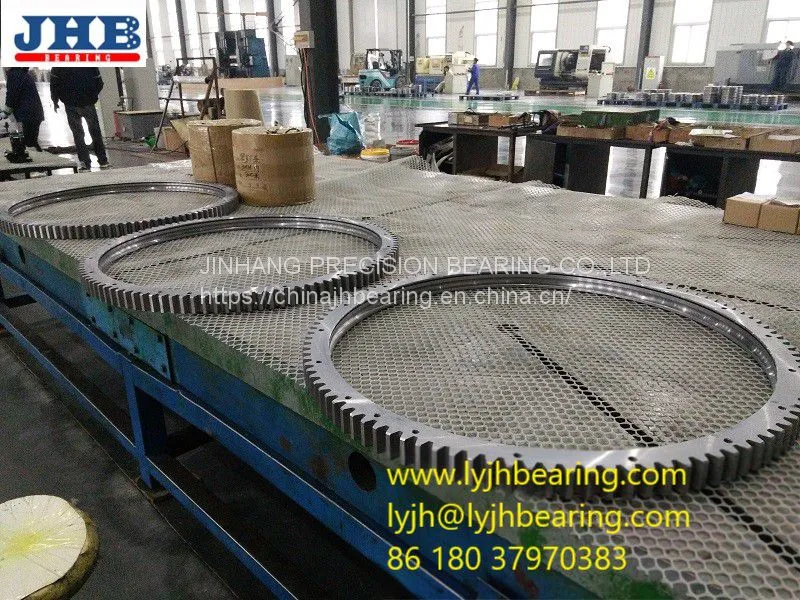

Slewing ball bearing E.1200.20.00.C 1198.4x984x56mm for mobile crane machine
We had offered the bearing E.1200.20.00.C to our mobile crane,the structure is four point contact ball structure, the rolling elements is ball.
Now We will introduce Slewing bearing E.1200.20.00.C specification as follows:
Slewing bearing type |
E.1200.20.00.C |
Dimension |
1198.4x984x56mm |
Outer dia： |
1198.4 mm |
Inner dia： |
984mm |
Height： |
56 mm |
Weight |
82 kgs |
Outer ring hole qty |
22 pcs |
Inner ring hole qty |
22 pcs |
Outer ring and inner ring material |
50Mn 42CrMo |
Ball bearing |
LYC ball Brand ,GCr15SiMn |
Lubrication |
Grease lubrication |
teeth |
In outer ring |
Teeth number |
148pcs |
M |
8 |
Pitch diameter |
1184 mm |
E.1200.20.00.C slewing ring application:
Power Plants, Cement and Mining industry. Making use of top-grade components,
Stacker Handling Equipment,Reclaimer Machine,Grab.
Loader,Dragline,slewing tower crane,bottom,mobile crane,schip crane,slewing pillar crane,fire ladder,clarifier,frame machinery,concrete pump
