E787/760G2 Radial Stacker machine Front Track Slewing Bearing size 950x760x80mm
E787/760G2 slewing bearing belongs to single row four point slewing bearing without teeth,It consist on inner ring and outer ring and ball with seal. This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments.
E787/760G2 slewing bearing size as following:
Name |
4 point contact ball slewing bearing E787/760G2 |
Boundary dimension |
950x760x80mm |
Outer dia: |
950 mm |
Inner dia: |
760 mm |
Height: |
80 mm |
Radial clearance |
0.12-0.28 mm |
Rolling |
Ball |
Material |
50Mn |
The delivery time |
30 days after getting the order |
application |

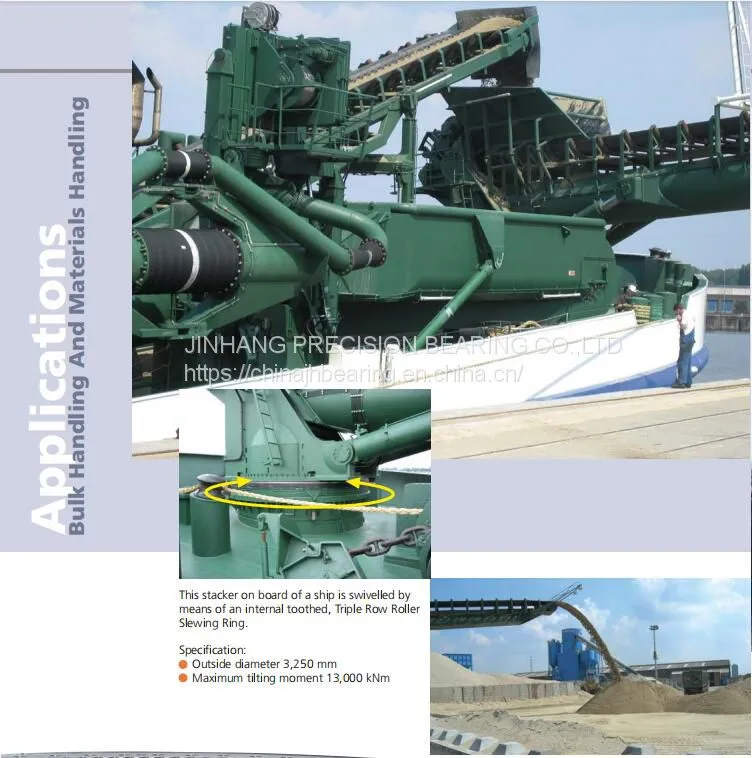

Radial Stacker machine
|
Materials of slewing bearing
1. Material of slewing ring: 42CrMo 50Mn is generally used for slewing ring with surface quenching treatment of the raceway. Other kinds of surface quenched steel can also be used according to customer specification and operating conditions.
2. Material of rolling element: The material of rolling elements in LYC Brand bearing is GCr15 or GCr15SiMn steel.
3. Material of cage: Various types of cage are used in slewing bearing, which can be divided into integrated cage, segmented cage, spacer and etc. 20 steel or ZL102 cast aluminum alloy is used for integrated cage and segmented cage. For spacer,the material is polyamide 1010 resin, ZL102 aluminum bronze, QA110-3-1.5 aluminum bronze or GRPA66-25 nylon.
4. Material of sealing ring: The sealing ring is made of NBR.
