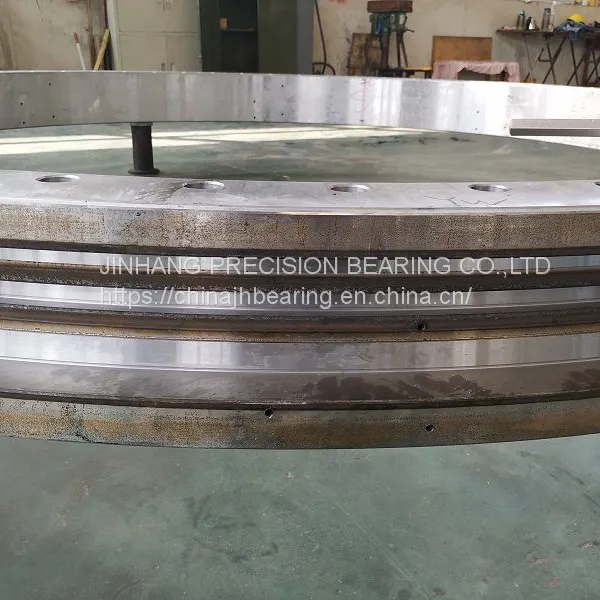

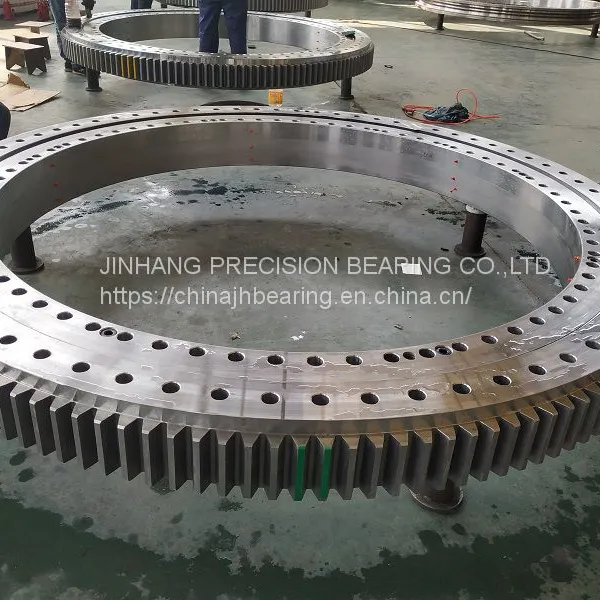

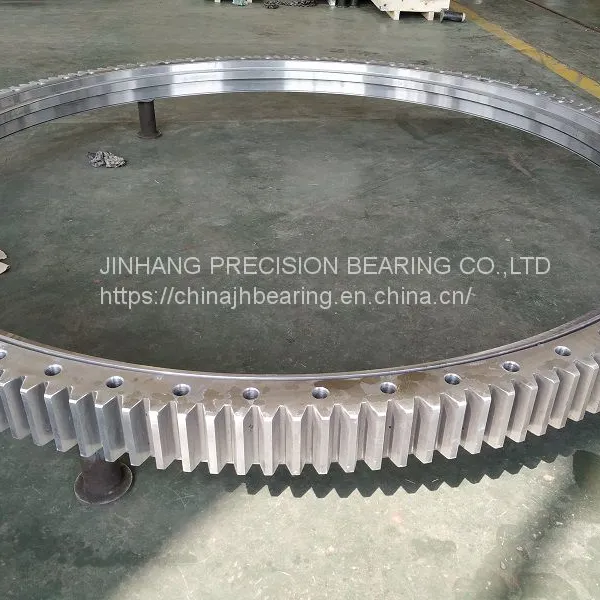

Double row four point contact ball slewing bearing with teeth 4548.6x3970x187mm for heavy duty industry machine
The slewing bearing with teeth 4548.6x3970x187mm belongs to over size bearing,It has two row raceway to running,The bearing can support high static loads with simple structure. They are mainly used in situations with variational load position and direction and continuously rotating. Main applications of this kind of bearings are desk hoisting,mining and material handling.
The slewing bearing 4548.6x3970x187mm technology data as following:
Name |
Four point contact ball slewing bearing |
Type |
JHB-001 |
Boundary |
4548.6x3970x187mm |
Outside dia |
4548.6 mm |
Inner dia |
3970 mm |
height |
187 mm |
Teeth |
With external teeth |
Module |
M:20 |
No of teeth |
Z: 220 |
modification coefficient |
X:0.5 |
Surface treatment |
Grinding surface |
material |
42CrMo |
Delivery time |
45 days after getting the PO |
Lubrication |
Grease Number 2 |
Oil hole |
available |
Seal |
Double seal |
Clearance |
Axial clearance |
sample |
available |
