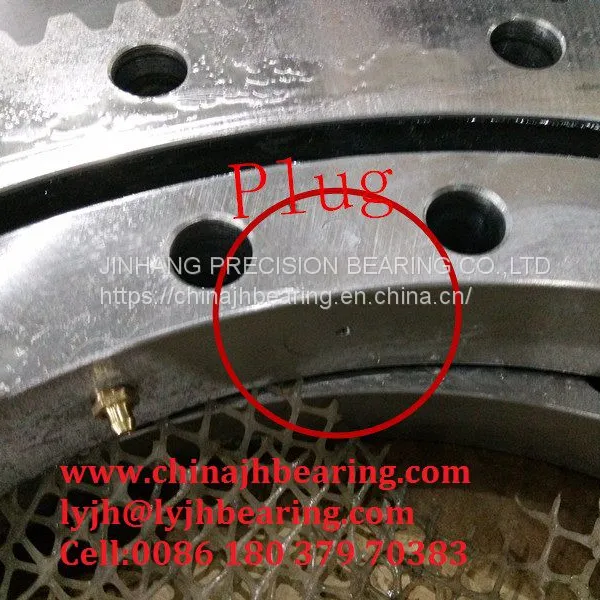

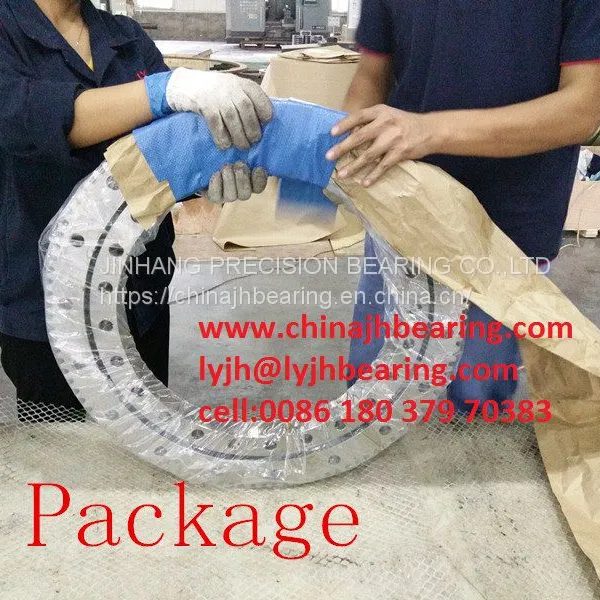

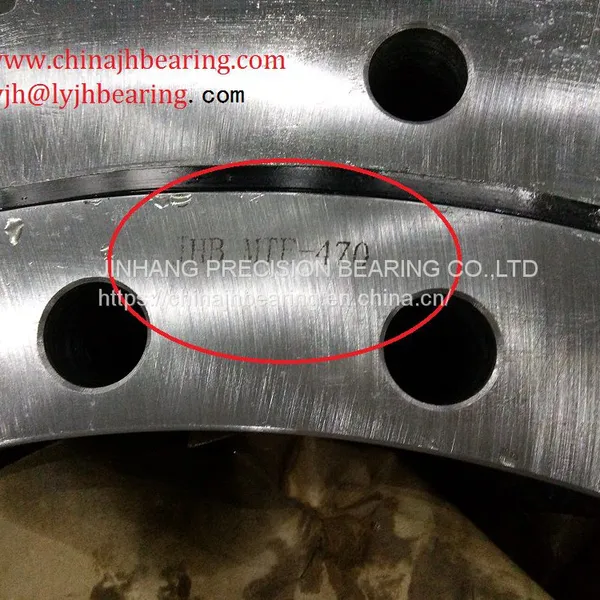

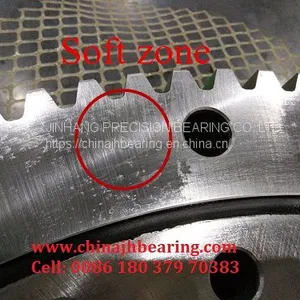

MTE-470 Belong to four point contact ball slewing bearing with external teeth 683.26x469.9x60mm
We had offered the bearing MTE-470 to our mining equipment customer ,Now We will introduce Slewing bearing MTE-470 specification as follows:
Slewing bearing type |
MTE-470 with external teeth |
Dimension: |
683.26x469.9x60mm 26.9x18.5x2.375 inch size |
Outer dia： |
683.26 mm(26.9 inch size) |
Inner dia： |
469.9mm(18.5 inch size) |
Height： |
60 mm(2.375 inch size) |
Weight |
80 kgs |
Outer ring hole qty |
18 pcs |
Inner ring hole qty |
24 pcs |
Outer ring and inner ring material |
50Mn |
Ball bearing |
LYC ball Brand ,GCr15SiMn |

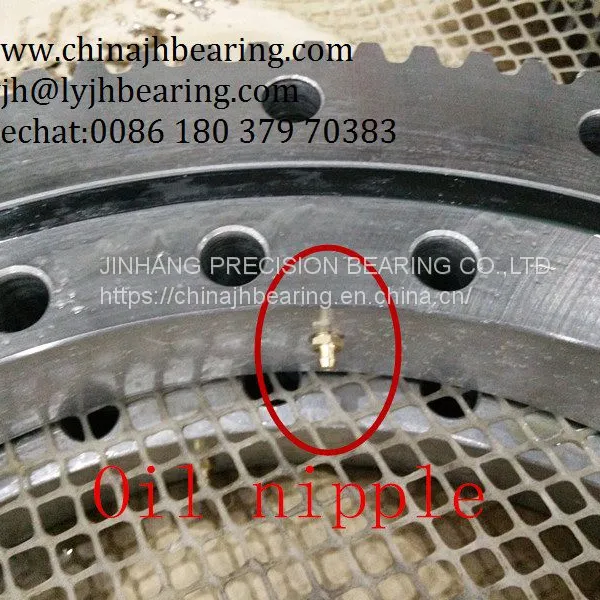

Lubrication |
Grease lubrication |

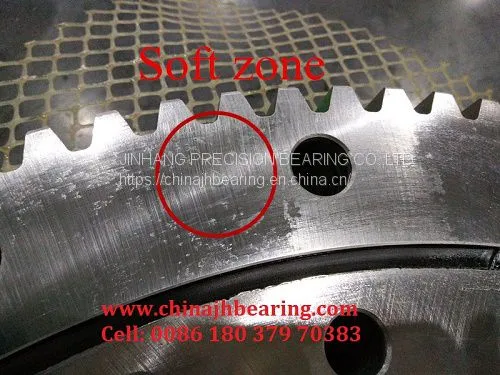

MTE-470 Slewing bearing external teeth parameter as follows:
No of teeth |
Z=106 |
Press angle |
A=20 degree |
Modification coefficient |
X=0 |
MTE-470 slewing ring application:
Power Plants, Cement and Mining industry. Making use of top-grade components,
Stacker Handling Equipment,Reclaimer Machine,Grab.
MTE-470 Slewing bearing selection:
JinHang Precision slewing bearing are allocated critical load curves for their static load capacity.when defining the required bearing load capacity, the determined loads must be multiplied by the “load factors” according to the work condition.
