Help CenterKRD10 Series Eco-friendly Hydraulic Vertical Shock Test Equipment Impact Resistance of Products
Related Products
-
Wholesale Customized Pneumatic Horizontal Shock Test Equipment for Product ReliabilityNegotiableMOQ: 1 Set -
High G Shock Testing High Energy Shock Test Machine for Product ReliabilityNegotiableMOQ: 1 Set
-
KRD20 Series High Accuracy Automatic Pneumatic Bump Test Machine for Electronic ProductsNegotiableMOQ: 1 Set
-
MIL-S-901D Standard High Impact Shock Testing Equipment for Ship Board MachineryNegotiableMOQ: 1 Set
-
Hot Selling Pneumatic Horizontal Shock Test Equipment for ProductsNegotiableMOQ: 1 Set

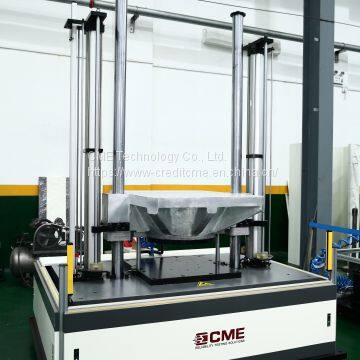

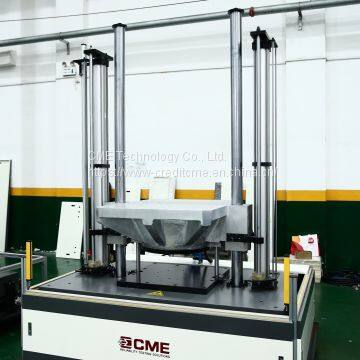

KRD10 series full-automatic hydraulic shock test system is used to measure and determine the impact resistance of products or packaging, and to evaluate the reliability and structural integrity of products in a shock environment. The system can perform conventional half-sine wave, post-peak sawtooth wave, square wave and other waveform shock tests to achieve the shock wave and impact energy that the product is subjected to in the actual environment, thereby improving the product or packaging structure.
l Windows-based stable control system, full-automatic remote-control interface
l Multi-track guide posts combined with good lubricity and noise free hydraulic balance lifting system to achieve stable shifting
l Automatic control of lifting height with high accuracy and good repeatability
l Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter
l Built-in brake mechanism to avoid secondary rebound collisions and more secure positioning of the table
l Multiple waveforms: it can perform conventional half-sine waves, post-peak sawtooth waves, or square waves
l The self-buffer & vibration isolation base does not require a special foundation, and easy to install
l One-stop test: built-in test standards meet various requirements to help users to complete test in one stop
Technical Specifications
|
Parameters |
KRD 10－2 (Manual) |
KRD 10－5 |
KRD 10－25 |
KRD 10－50 |
KRD 10－100 |
KRD 10－200 |
KRD 10－400 |
KRD 10－500 |
KRD 10－600 |
KRD 10－1000 |
KRD 10－1500 |
KRD 10－3000 |
|
Rated Load (kg) |
2 |
5 |
25 |
50 |
100 |
200 |
400 |
500 |
600 |
1000 |
1500 |
3000 |
|
Table Size (mm) |
115×115 |
200×200 |
300×300 |
500×500 |
600×600 |
800×600 |
800×800 |
1000×800 |
1000×1000 |
1200×1000 |
1500×1200 |
2000×1500 |
|
Peak Acc. (g) |
Half-sine |
5~3k |
5~2k |
5~1.5k |
10~750 |
10~600 |
10~450 |
10~400 |
10~300 |
10~300 |
10~250 |
10~150 |
15~100 |
|
Post-peak Sawtooth |
10~200 |
10~100 |
10~50 |
||||||||||
Trapezoid |
/ |
15~200 |
15~100 |
15~60 |
15~50 |
30~50 |
|||||||
Pulse Duration (ms) |
Half-sine |
0.3~40 |
0.5~40 |
0.6~60 |
1.5~60 |
2~60 |
2.5~60 |
3~60 |
3.5~60 |
4~60 |
4.5~60 |
6~60 |
11~40 |
|
Post-peak Sawtooth |
3~18 |
6~18 |
|||||||||||
Trapezoid |
/ |
3~18 |
6~18 |
||||||||||
Overall Dimensions (mm) |
450× 180× 2100 |
1000× 900× 2350 |
1400× 1200× 2300 |
1600× 1400× 2300 |
1700× 1500× 2300 |
1700× 1500× 2300 |
1900× 1500× 2550 |
1900× 1500× 2550 |
1900× 1800× 2550 |
1900× 1800× 2650 |
2200× 2100× 2650 |
2700× 2500× 3000 |
|
Weight (kg) |
200 |
1000 |
1800 |
3000 |
4000 |
4200 |
4800 |
5000 |
7000 |
8000 |
10000 |
15000 |
|
|
Working Environment |
Temperature range 0 ~ 40℃, Humidity≤80% (non-condensing) |
||||||||||||
Power |
Control measurement: 1-phase AC220V±10% 50Hz Oil source: 3-phase 380V±10% 50Hz |
||||||||||||
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment |
||||||||||||
Standards |
MIL-STD-810F IEC68-2-27 UN38.3 IEC62281 IEC62133-2 UL2054 IEEE1625 SAEJ2929 IEC62660-2 ISO12405-3 UL2580 |
||||||||||||
