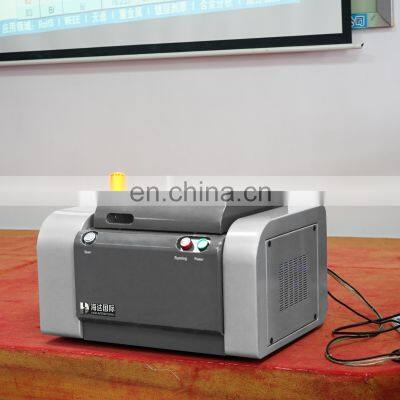

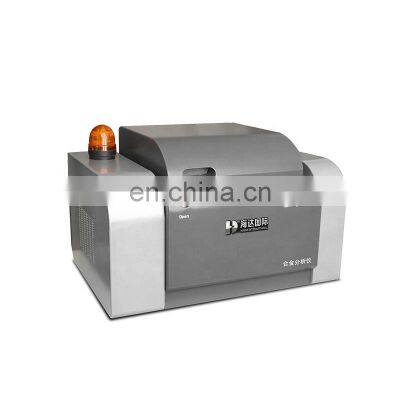

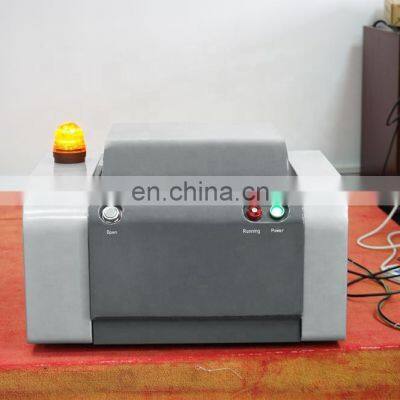

xrf Analyzer x-ray machine
XRF MACHINE'S MACHINE DESCRIPTION
This machine has advantages of triple radiation protection system, humanized operation interface; comprehensive application of empirical coefficient method & fundamental parameter method V8.0 analysis software. Element measuring range is from Na to U, which can test Pb, Cd, Hg and PBB in the RoHS regulations; Br in PBDE; Cr in Cr6+; Cl and Br in the Halogen-free regulations. It can completely meet the control demand of RoHS/WEEE/Halogen-free. Our machine with spectrum comparison function is used for real time tracing material change and warning in time. It has the incomparable advantage for RoHS/Halogen-free control.
XRF MACHINE'S APPLICATION
RoHS Directive Control Products: Household Appliance/ Information Technology and Communications Equipment / Electric Tool /Toys and other equipment.
Halogen-free Directive Control Products: Products which use flame retardant containing Cl, Br and other elements as raw material.
XRF MACHINE'S STANDARD FEATURES
|
Item |
Description |
|
Sample cavity size |
300*300*80mm |
|
Element range |
S-U |
|
Measuring scope |
1ppm-99.99% |
|
RoHS test limit |
Pb≤5ppm,Cd/Cr/Hg/Br≤2ppm,Cl≤50ppm |
|
Sample type |
Solid, powder and liquid |
|
Measuring time |
120-400s ( software auto adjustment ) |
|
Collimator |
Φ2mm,Φ5mm |
|
Filter sheet |
8 compound filter sheet switch automatically |
|
CCD observation |
1.30 Million pixel HD CCD |
|
Sample micro scope |
XY8mm |
|
Stability |
Repeatability error<0.1% for multi-measurement |
|
Input power |
1-PH, AC220V~240V,50/60Hz |
|
Rated power |
350W |
|
Weight |
approx 48Kg |
|
Instrument size |
640(W)x450(D)x412(H)mm |
