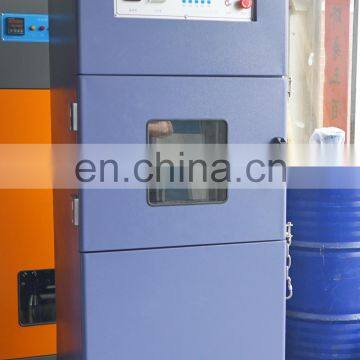

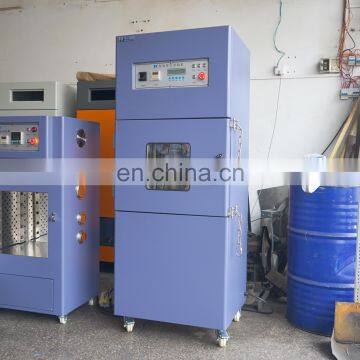

Digital Battery Squeezing Test Machine
Digital battery squeezing tester is used for inspecting the safety performance of battery through squeeze test and the battery should not ignite or explode after test
Digital battery squeezing tester is also the essential test equipment of all battery manufacturers and research institutions.
Design Standard:
UL1642,UL2054,SJ/T 11169-1998,YD 1268- 2003,SJ/T 11170-1998,GB 8897.4-2002
Main Technical Parameters:
Pressure range |
1000N~13KN |
Upper platen diameter |
150mm |
Force error |
±1% |
Unit |
Kg/N/Lb |
Driving mode |
Hydraulic pressure |
Clamp driving mode |
Pneumatic cylinder |
Timer |
0~9999s |
Test space |
(L*W*H) 200*200*200mm |
View window size |
200 * 200mm (Double anti-explosion glass with thickness of 10mm) |
Lighting |
Equipped with a lighting lamp at the top inside the chamber body |
Tuyere |
2 pieces |
Exhaust fan outlet |
Diameter 150mm |
Machine dimension |
(L*W*H)79*58*160mm |
Controller dimension |
(L*W*H)33*33*104mm |
Weight |
250KG |
Power |
Three phases, 380V |
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
