Home > Instruments & Meters > Test Instrument > Battery Tester > DFUN Battery Monitor System Battery Capacity Testers for Battery Capacity Test

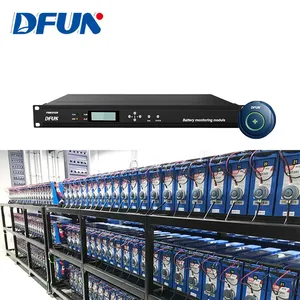

DFUN Battery Monitor System Battery Capacity Testers for Battery Capacity Test
US$ 18 - 55
MOQ: 12 Pieces
Key Specifications
Get Latest Price
Brand Name:
DFUN
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai
Delivery Detail:
15 days
Related Products
-
DFUN Smart UPS Battery Tester for 2V/6V/12V BMS for Lead Acid BatteryUS$ 18 - 55MOQ: 12 Pieces -
DFUN Wire Battery Management System BMS for Energy Storage Lead Acid Battery MonitorUS$ 18 - 55MOQ: 12 Pieces
-
DFUN Battery Testing Systems for Solar Vrla Battery Monitoring SystemUS$ 18 - 55MOQ: 12 Pieces
-
DFUN Solar Battery Tester for Lead Acid Battery BMS SystemUS$ 18 - 55MOQ: 12 Pieces
-
DFUN IDC Vrla Battery Sensor Battery Health Monitoring SystemUS$ 18 - 55MOQ: 12 Pieces
Brand Name
DFUN
Place of Origin
China

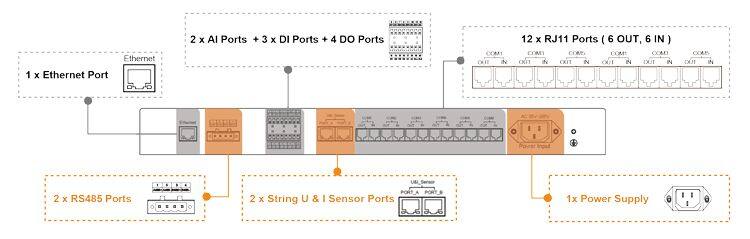

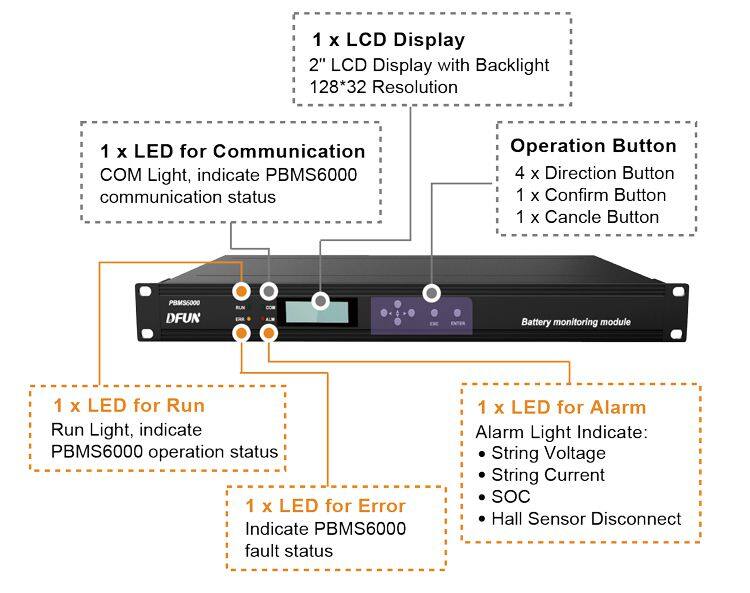

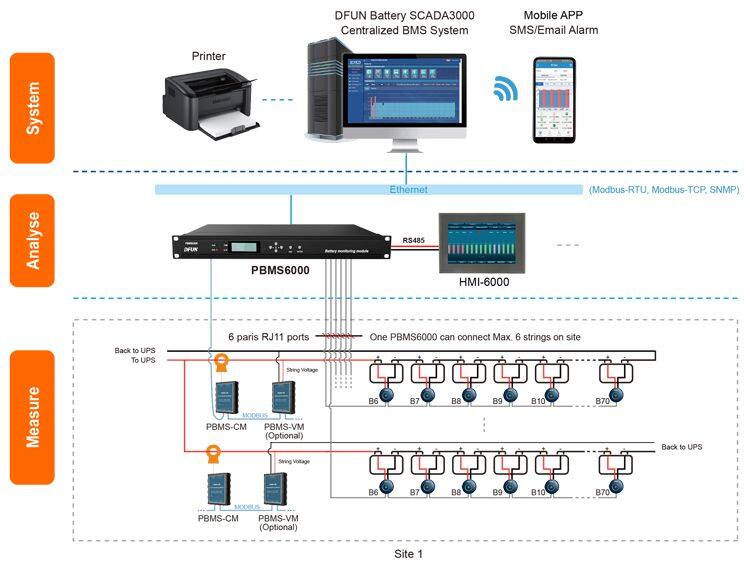

System Structure
What is included?
Technical Specification
| Battery Type | Lead Acid, Lead Carbon, Multi-pole Battery | Application | Data center, UPS... |
CPU |
ARM Cortex M4 180MHz Flash 128 Mbit Flash |
Dimension | Standard 19" inch 1U Device (482.6mm × 204.5mm × 44mm) |
| Total Strings | 1~6 Strings | Cell Voltage |
2V (1.6~2.6V) 6V (4.8~10V) 12V (7.5~15.6V) |
| Sleeping Mode | ≤10mA | Communication | MODBUS-RTU, MODBUS-TCP, SNMP |
|
Communication Protocol |
SNMP, Modbus TCP | Weight |
PBMS6000: 2.55kg Battery Sensor: 120g |
| Baudrate |
9600bps, 19200bps, 38400bps ( Optional ) |
Sensor LED Indicates |
Green: Normal Status Red: Abnormal Status |
| HMI |
Local Display and Operation (Optional), 7" inch Touch-Screen |
Operation Temperature |
-15℃ ~ + 55℃ |
| Operation Humidity |
10% ~ 95% Non-condensing |
Certification | EMC, ROHS, CE, ISO9001, ISO14001 |
