Good Qualitty Hydrostatic Pressure Pipe Testing Machine
Product description
The machine is designed and manufactured according to GB/T6111 -2003 Thermoplastics pipes for the conveyance of fluids ----Resistance to internal pressure----Test method and GB/T15560-1995 Standard test method for short-time hydraulic failure and resistance to constant internal pressure of the plastics pipes for the transport of fluids . It is suitable to determine the pressure-resisting broken time or the maximum pressure value of instantaneous blast of thermoplastic pipes and compound pipes (such as PP-R ,PP-B ,PP-A ,PE ,PE-X ,PVC ,PVC-U and PVC-C ) under long-term constant internal pressure and temperature .It is indispensable for manufacturers of plastic pipes and testing institutions .

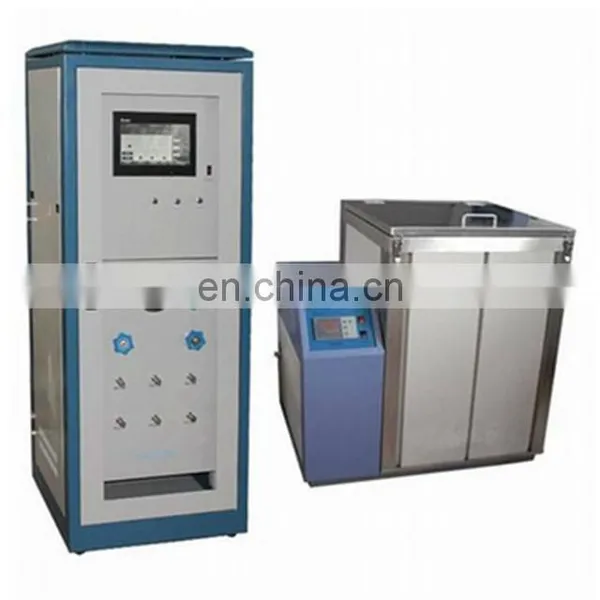

Hydrostatic Pressure Pipe Testing Mchine
Hydrostatic Pressure Pipe Testing Machine
Main technical parameters
Stations |
3 stations |
Pressure adding range |
0~10.000MPa |
Max. working pressure of main pressure system |
12MPa |
High pressure piston pump |
(1) pressure : 10MPa (2) volume :8-11.3L/min (3) rotating speed :700rpm/min (4)diameter: 12mm |
Pressure controlling precision |
+2% and -1% of upper and lower limit of test pressure value respectively |
Resolution of pressure value |
0.001Mpa |
Sensor |
test pressure sampling periods is 0.1 millisecond . |
Timing range |
0—9999h |
Timing precision |
1S |
Power |
Three phases, 380V |
Main machine dimension |
600mm×650mm×1800mm |
Water tank inner size |
(L*W*H) 1200*500*1300mm |
Temperature of water tank |
Room temperature to 95°C |
End caps diameter |
Φ16-Φ250 |
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
