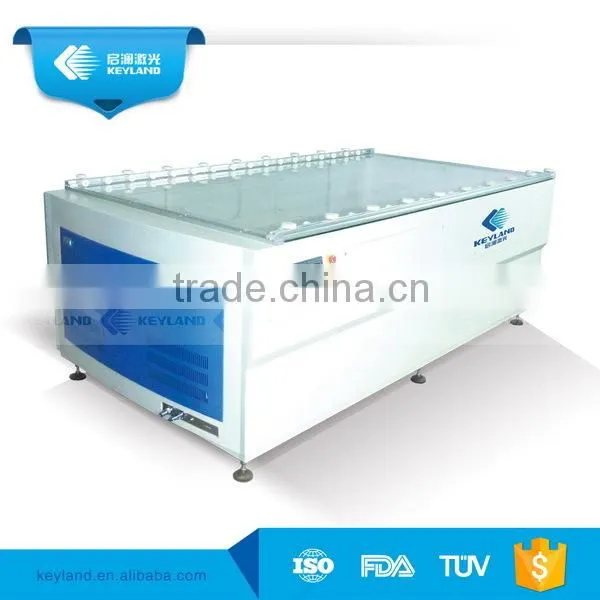

China best small solar panel machine
Simplify your solar module testing with KeyLand Laser's precision mesurement solutions!
Application
Mainly used in electrical performance auto test and result record of solar Mono-Si, Poly-Si or a-Si cell module / panel ( Monocrystalline, polycrystalline, and amorphous silicon).
Technology characters
A grade spectrum;
A grade unevenness degree of irradiance;
A grade instability degree of irradiance
A grade test error,
A grade repeat test error;
Pneumatic and buffering contact, front probe contact, back contact
Four-line survy; 14-bit 4-channel high-speed synchronous acquisition, 8,000 data collecting dots
10 parameters display; measurement parameter displays in tabulation and graphic way;
Irradiance automatically compensating; temperature automatically compensating
Voice counts off and prompts; counting promts of flash time
24h continous working; working life of imported Xenon lamp is 300,000 times of flash
Main technical parameters
Type specifications | GTM-5A-2012 | GTM-B-2012 |
Lamp spectrum | In line with IEC60904-9 and JISC8933( Grade A) | |
Range of Light intensity | 100mW/cm2(continous adjustable 70-120mW/cm2) | |
Light intensity non-uniformity | ±2%( A grade) | ±3% |
Instability degree of irradiation | ≤ ±2%(A grade) | ±2% |
Test results consistency | ±0.5% | ±1% |
Test error of electrical proerties | ≤±1% | ≤±2% |
Single flash time | 10~100ms | 10ms |
Effective test range | 2000X1200mm/5w~300w | |
Power Supply | 220V ±10%, 5A/ 2KW/ 50-60Hz | |
Load time | 5 s | |
Light Pulse Duration | 10 ms | |
Data acquis. Speed per measurement | 20 µs | |
Reference Cell Range | 50 mV | |
Module measurements per hour | 700 | |
Measuring voltage | 0~100V (resolution 1mV) | |
Measuring current | 0~20A (resolution 1mA) | |
Test parameters | Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh | |
Detailed Product Description
1. Vacuum absorption and probes touching automatically system
2. Long-arc pulsed and longevity xenon lamp
3. High speed and big power electronic load
4. Data acquisition & processing software
Options and customizations
Manual and automatical sliding tracks match the production line; special request on customization of survey on various solar cells.
Customize 100ms pulse width 225-1300nm dual light source.

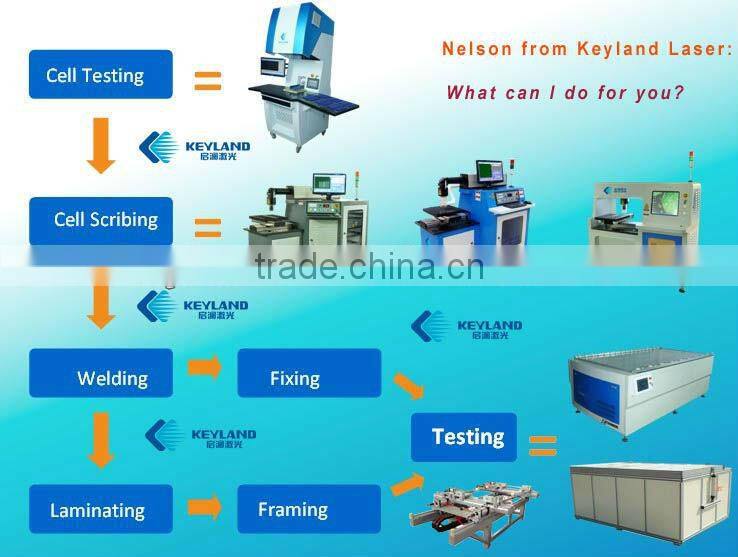

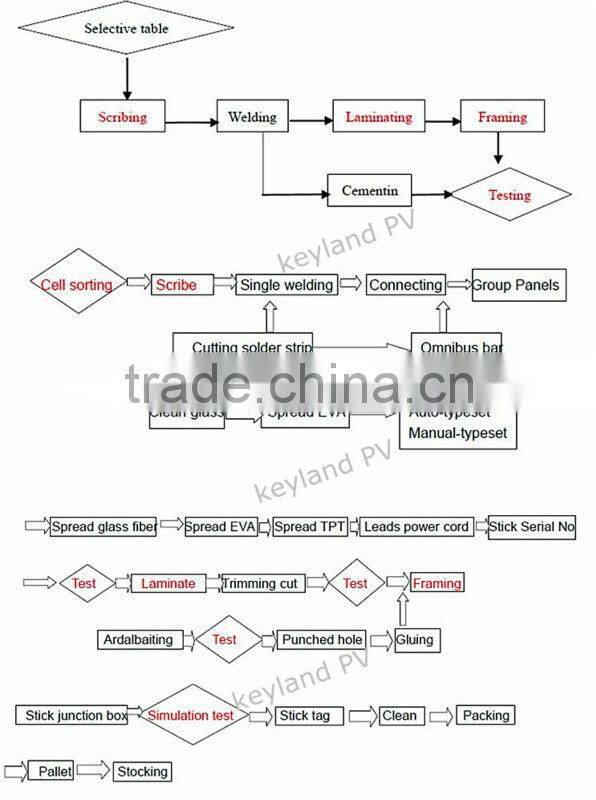

We offer Whole set of Solar Panel Production Line Equipments:
Full automatic laminator
Solar Cell Tester
EL Module Detector
Framing Machine
EVA, TPT cutting station
EVA, TPT transfer carrier
Solar cell soldering station
Soldering ribbon cutting machine
Cell string shelf
Ready material carrier
Module transfer carrier
Laying up station
Inspection station
Cell sorting table
Cleaning working table
Working table
Pneumatic glue gun
Compressor
Laser dicing ( scribing ) machine (option)

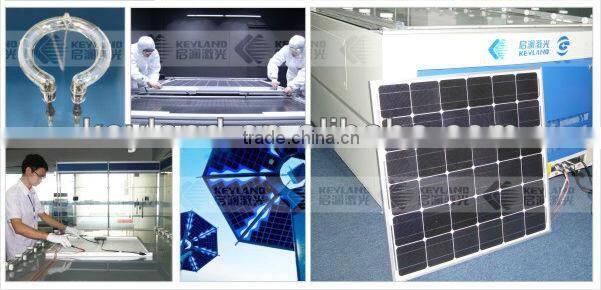

Machine application:
Software interface:

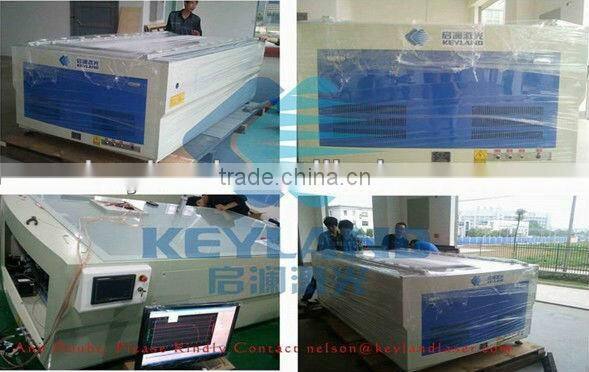

Packing site:
Keyland on PV fairs:
