Aluminum Alloy Handheld XRF Analyzer TrueX
US$ 12,200 - 12,299
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Drawell
Place of Origin:
Chongqing, China
Model Number:
TrueX 800
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing/Shanghai/Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UV-Vis Spectrophotometer Manufacturer Tyoes Price ChinaUS$ 243 - 393MOQ: 1 Piece -
Desktop X-Ray Fluorescence XRF Spectrometer For Metal AnalysisUS$ 94,000 - 100,300MOQ: 1 Piece
-
Energy Dispersive X-ray Fluorescence Spectrometer XRFUS$ 20,600 - 21,600MOQ: 1 Piece
-
Wholesale Price Gold Analyzer X-Ray Spectrometer XRF Metals Testing MachineUS$ 20,600 - 21,600MOQ: 1 Piece
-
Desktop X-ray Fluorescence Spectrometer XRF For Metal AnalysisUS$ 20,600 - 21,600MOQ: 1 Piece
Brand Name
Drawell
Place of Origin
Chongqing, China
Model Number
TrueX 800
Size
43*23*45cm
Weight
10kgs
Wavelength Range
All between Mg and U. elements
Focal Length
2ppm
Product Description

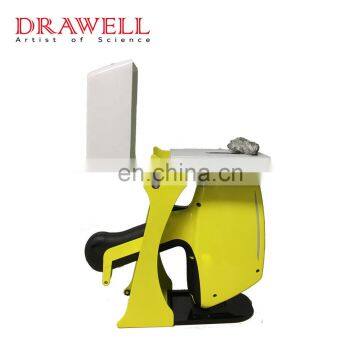

Hand-held Alloy Analyzer (Truex 800)
Application fields

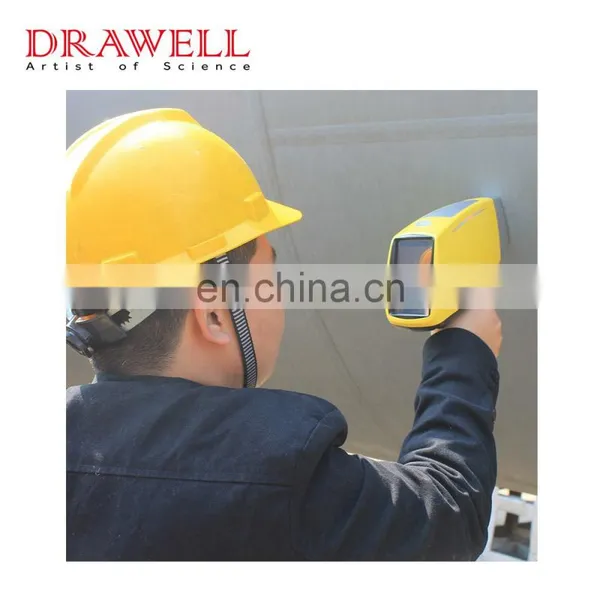

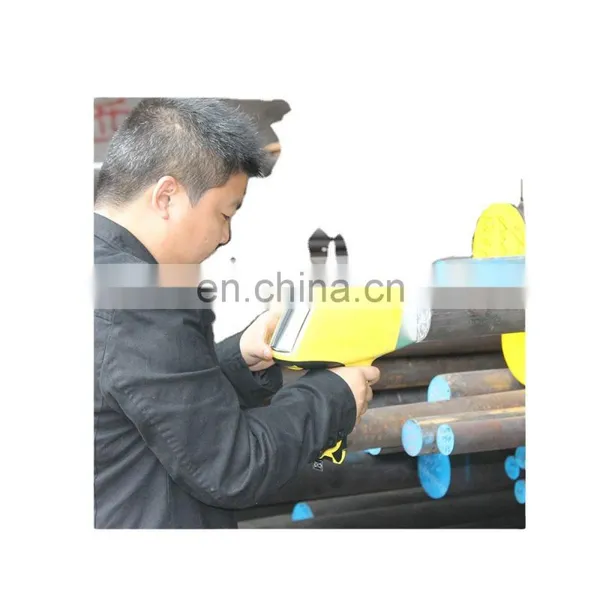

-Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site
- Metal identification /scrap metal sorting
- QA/QC management in metal production, processing, casting, etc
- Medicine and biological medicine
- Identification of positive materials, oil refining and petrochemical industry
- Thermal power plant, hydroelectric power station, nuclear power plant
- Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.
Weight |
1.6Kg（with battery）. |
Dimensions |
254 x 79 x 280 mm（L x W x H）. |
Excitation source |
50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional). |
Detector |
BOOST Si-PIN detector |
Range of detection |
All elements between Mg and U. |
Display system |
Industrial resistive touch screen with screen size of 4.3". Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness. |
Data processing |
32GB memory USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). |
Heat dissipation |
Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again. |
Safety |
Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase Drawell Safety Band； |
Power supply system |
Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours. |
Product Images
Company Profile
Customer
Exhibitions
Our Advantages

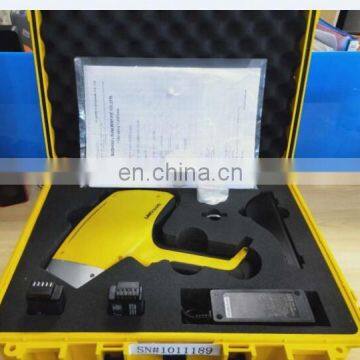

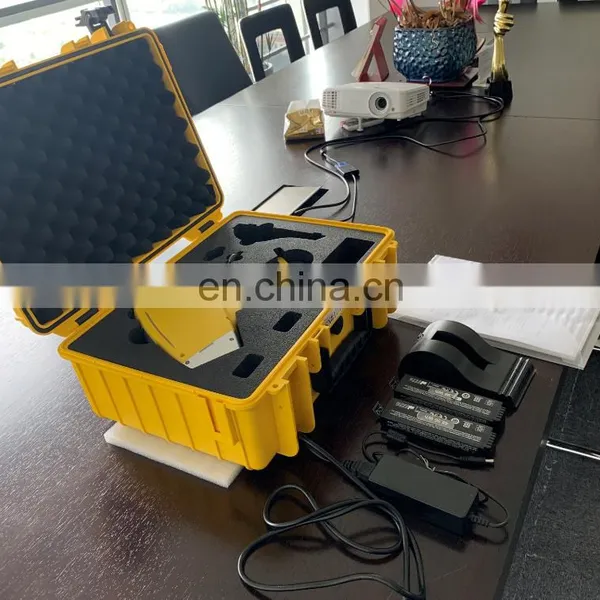

Product packaging
