Infrared FTIR Spectroscopy

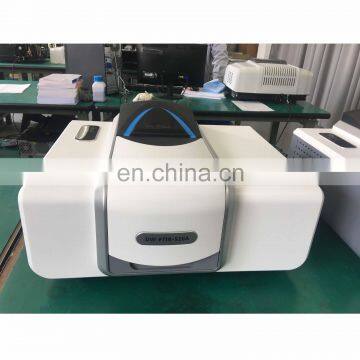

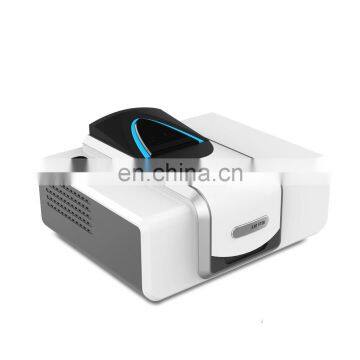

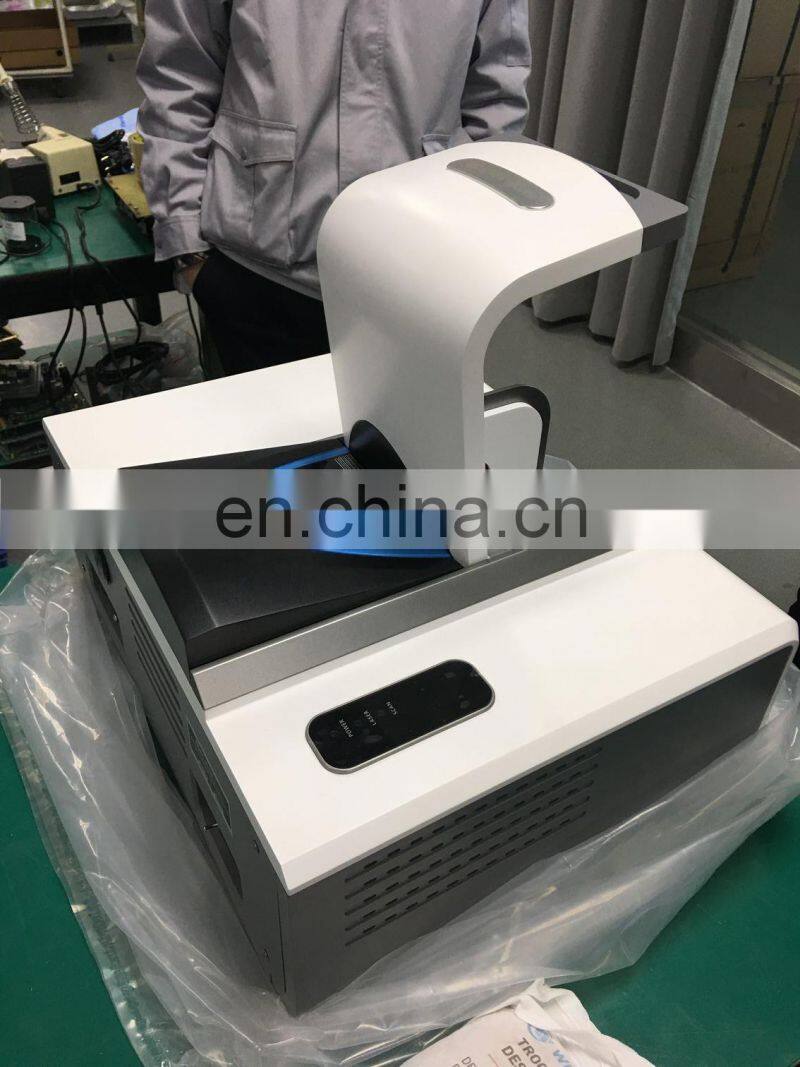

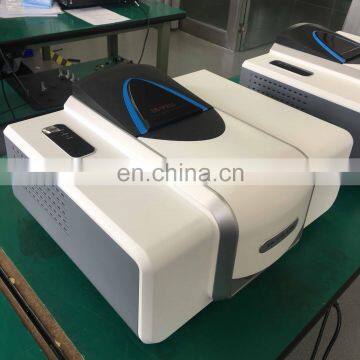

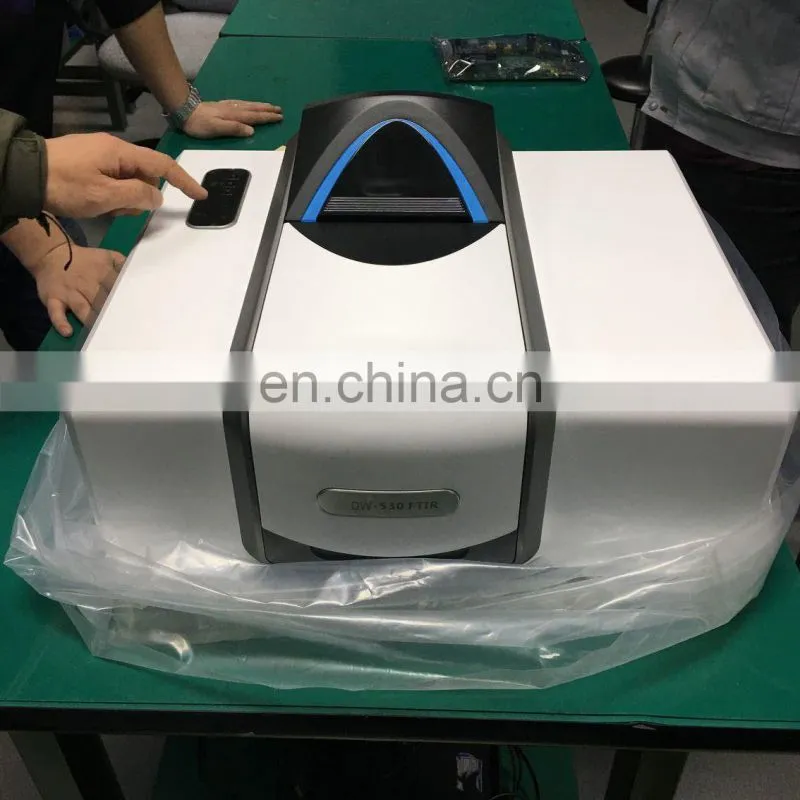

DW-FTIR-530  FT-IR SPECTROMETER

FTIR Spectrometer DW-FTIR-530 with fully independent intellectual property rights.  Adhering to consistent excellent quality and superior performance, the new model obtains the best balance between intelligence and convenient operation, advance performance and low operation and maintenance cost.  It is a good choice for basic science research analysis, production quality control,testing and detection in various fields.

u High sensitivity and stability

u Intelligent real-time monitoring of instrument status

u Multiple communication options

u Flexible and convenient testing

u Powerful software workstation

Innovations

l Optional temperature stabilized, high sensitivity DLATGS detector module,  providing stable detector response, thus ensuring high sensitivity, good reproducibility and stability of IR spectral analysis.

l “Internet+ detection” instrument design with multiple communication options: Ethernet interface as standard supply for data transfer, WIFI wireless communication as an option, adapting to “Internet+ detection” instrument development trend, setting up a basic platform for interconnected tests, remote operation and maintenance, and data cloud computing.

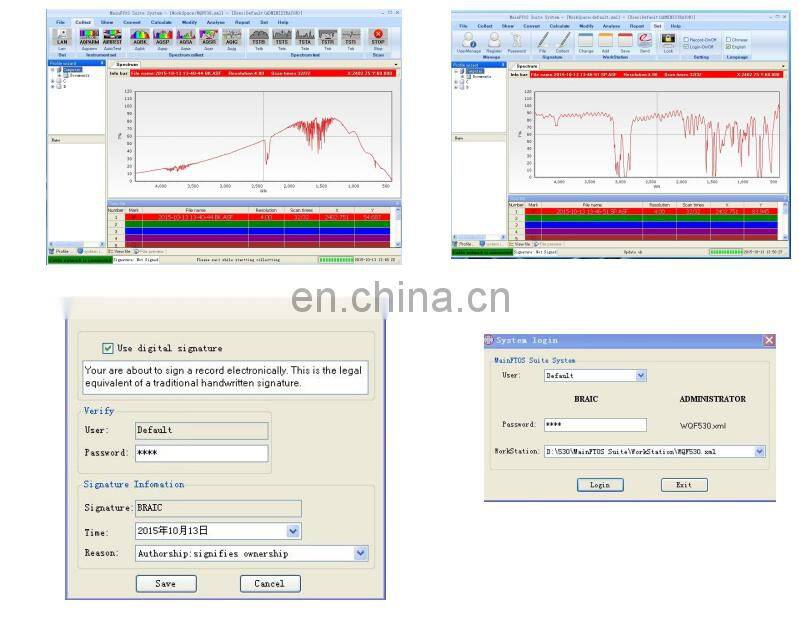

Brand-new powerful MainFTOS Suite software workstation

Features

l High sensitivity optical system: cube-corner Michelson interferometer combined with patented fixing mirror alignment technology(Utility model ZL 2013 2 0099730.2:fixing mirror alignment assembly),to ensure long term stability, without the need of dynamic alignment which needs extra complicated electronic circuits.  Reflecting mirrors are coated with gold to provide the maximum light throughput and ensure the detection sensitivity.

l High stability modular partition design: compact structure modular design with layout on cast aluminum base and overall balance of mechanical robustness and partition heat dissipation, offering higher ability of deformation resistance and less sensitive to vibrations and thermal variations, greatly improves the mechanical stability and long term working stability of the instrument.

l Intelligent multi-sealed moisture-proof design: multiple sealed interferometer, large-capacity desiccant cartridge with visible window and easy replacement structure, real-time monitoring of temperature and humidity inside the interferometer, getting rid of influences of high temperature, high humidity and chemical corrosions to the optical system in many ways.

l Innovated integration electronic system:  high sensitivity integrated DLATGS detector pre-amplifier technology, dynamic gain amplification technology, high precision 24-bit A/D conversion technology, real-time control and data processing technology, digital filter and network communication technology, ensuring high quality real-time data collection and high-speed transmission.

l Good anti-electromagnetic interference capability: The electronic system is designed to meet CE certification and electromagnetic compatibility requirements, minimizing electromagnetic radiation in design and technology,in line with green instrument designing concept.

l High intensity IR source assembly: High intensity, long lifetime IR source module, with the highest energy distributed in fingerprint region, adopts a reflex sphere design to obtain even and stable IR radiation.  External isolated IR source module and large space heat dissipation chamber design provide higher thermal stability and stable optical interference.

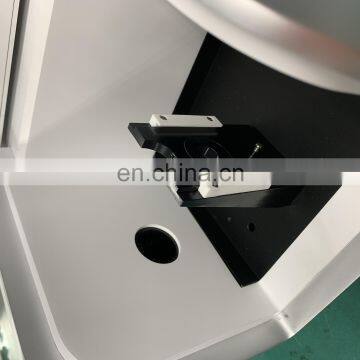

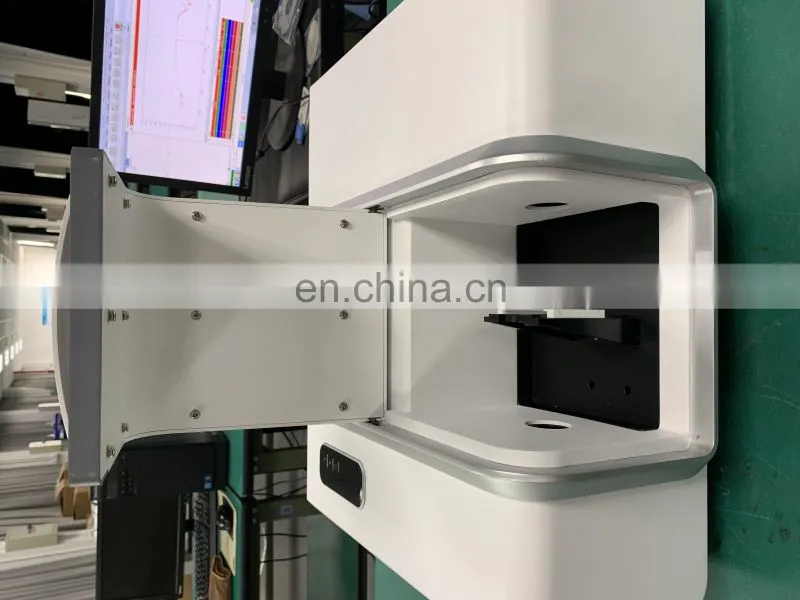

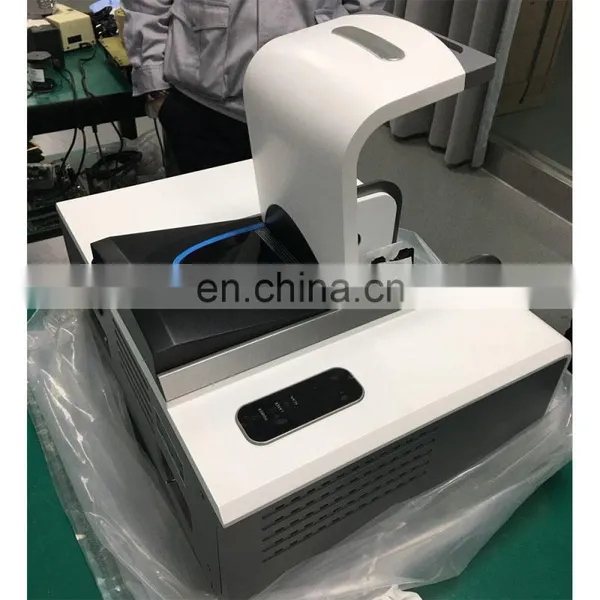

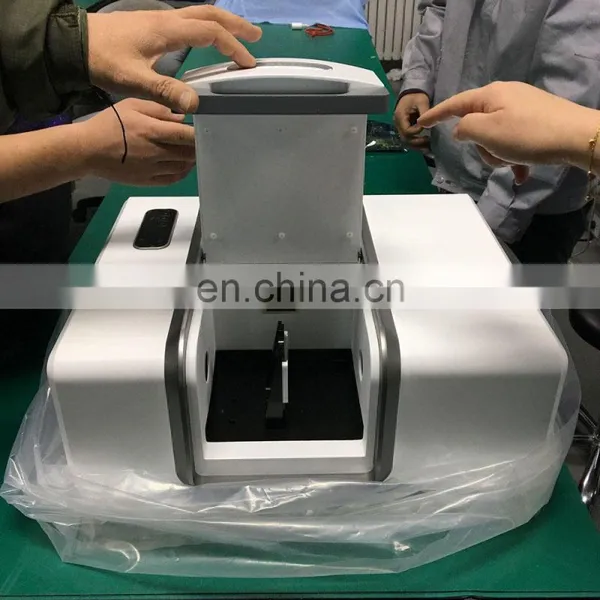

l The sampling compartment, reserving accessory mounting holes on the base plate, is wide enough for various accessories such as Defused/Specular Reflection, ATR, Liquid cell, Gas cell, and IR microscope etc.

Specifications:
