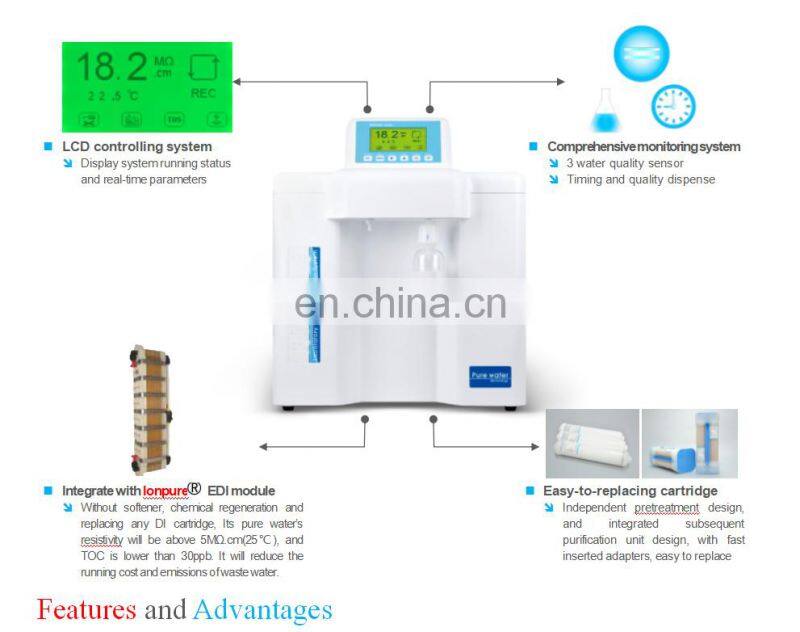

Edi Series Lab Deionized RO Water Purifier Filter System

Edi series water purification system

n Integrating with Ionpure EDI technology and module.

n The largest capacity is 240 liters pure water per day.

n LCD (resolution: 240×128, dimension: 106×57mm) controlling system, intuitively display the system running state and various parameters.

n 3 way online water quality sensor, detect the quality of feed water, RO water, deionized water, or ultrapure water respectively. And warn once water quality’s standard exceeding.

n Cartridges replacing alarm function, based on time and water quality, show cartridges’ used and residual life.

n Multiple alarm function: no feed water, full water, water quality’s standard exceeding, and cartridge life ending.

n Auto self-flushing of RO membrane function, extend RO membrane’s life.

n Auto running data storing function through RS232/USB communication port to computer for 1 year at least (optional).

n System sanitizing procedure, achieve the disinfection of ultrapure water’s tube and valve.

n System circulation function, achieve ultrapure water’s circulation to keep top quality of ultrapure water.

n Level II password, protect all the parameters setting, and prohibit any unauthorized setting change.

n Water dispensing function- timing and quality (time range: 1-99min, water quality range: 0.1-18.2MΩ.cm).

n External water tanks is optional to meet different need and assure ample water-supply.

n Whole plastic shell with high-strength, avoid rusting and keep clean, to meet GLP standard.

n 3 door and easy-to-replacing cartridge design, convenient to maintain system and replace cartridges.

n Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water’s quality.

n Optimized pretreatment (including PP fiber, KDF and active carbon cartridge), effectively protect RO membrane.

n RO module with DOW’s membrane, ensure long life, stable operation and high desalinization rate.

n 4 in 1 ultrapure cartridge (can be divided to 4 independent cartridge) with DOW’s top polishing resin, ensure ultrapure water’s quality up to 18.2 MΩ.cm, with the lowest TOC level.

n Double wavelength (185&254nm) ultraviolet lamp module, restrain bacteria’s increase and reduce TOC.

n MWCO 5000D ultrafiltration module, effectively eliminate endotoxin, and suitable for precise cell cultivating and IVF.

n (0.45+0.1)µm double layer PES terminal disinfection filter, assure that terminal pure water is absolutely axenic.

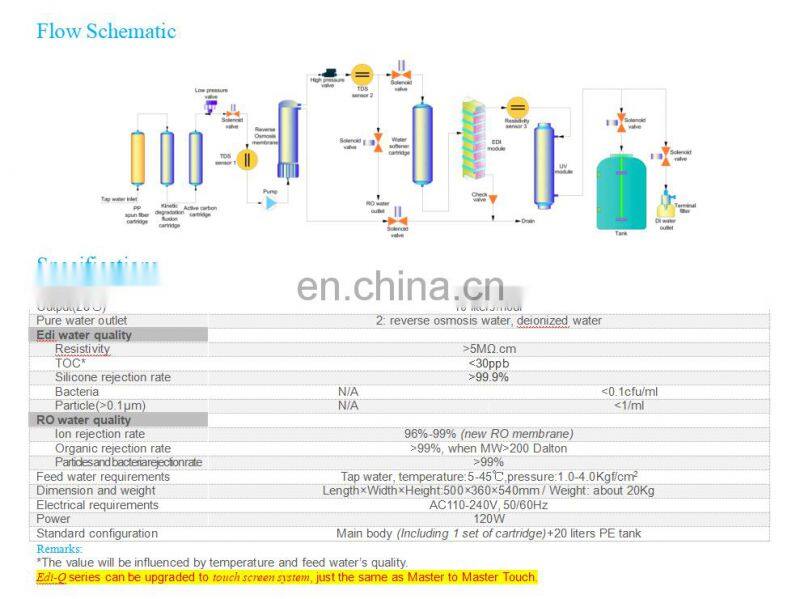

Edi-Q series deionized water system (Tap water inlet)

With LCD controlling system, 3 way water quality sensor, timing and quality dispensing, single stage RO system,1 pump and IonpureEDI module, Edi-Q series deionized water system is superior choice of deionized water for general grade experiments.

With tap water inlet, the largest capacity is 240 liters per day. It can produce single stage RO water and deionized water. The single stage RO water’s ion rejection rate is more than 96%, and deionized water is stable grade II pure water with resistivity>5MΩ.cm(25℃), TOC<30ppb, and the lowest running cost.

It completely meets the requirements of general chemical or biological experiments for pure water, and is up to the standard of ISO 3696(Type II), ASTM D1193 (Resistivity of type II and TOC), and the requirements for pure water of CLSI (NCCLS) clinical laboratory, GB/T6682, America, Europe, Japan’s pharmacopeia.

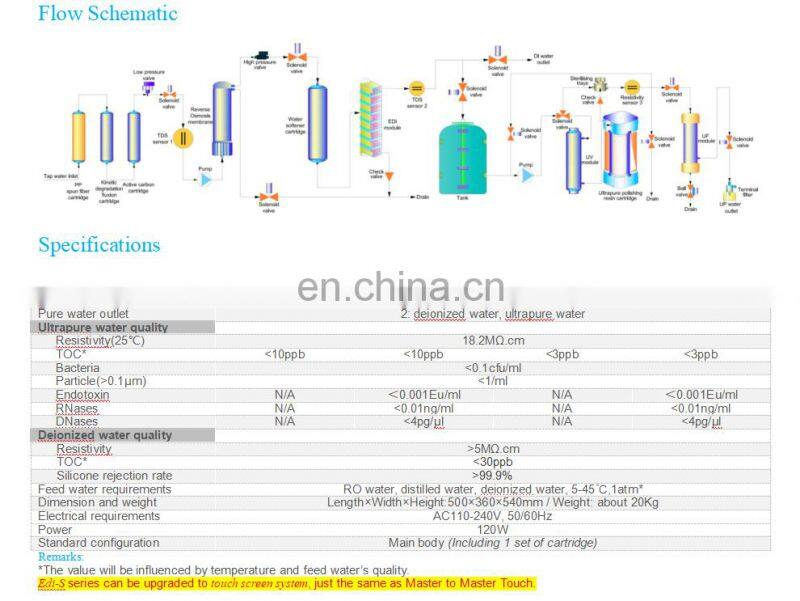

Edi-S series ultrapure water system (Tap water inlet)

With LCD controlling system, 3 way water quality sensor, timing and quality dispensing, single stage RO system,2 pump and IonpureEDI module, Edi-S ultrapure water system is superior choice of ultrapure water for high grade experiments.

With tap water inlet, the largest capacity is 240 liters per day. It can produce deionized water and ultrapure water.

The deionized water is stable grade II pure water with resistivity>5MΩ.cm(25℃), TOC<30ppb, and the lowest running cost. It completely meets the requirements of general chemical or biological experiments for pure water, and is up to the standard of ISO 3696(Type II), ASTM D1193 (Resistivity of type II and TOC), and the requirements for pure water of CLSI (NCCLS) clinical laboratory, GB/T6682, America, Europe, Japan’s pharmacopeia.

And the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.
