Basic series water purification system
Features and Advantages

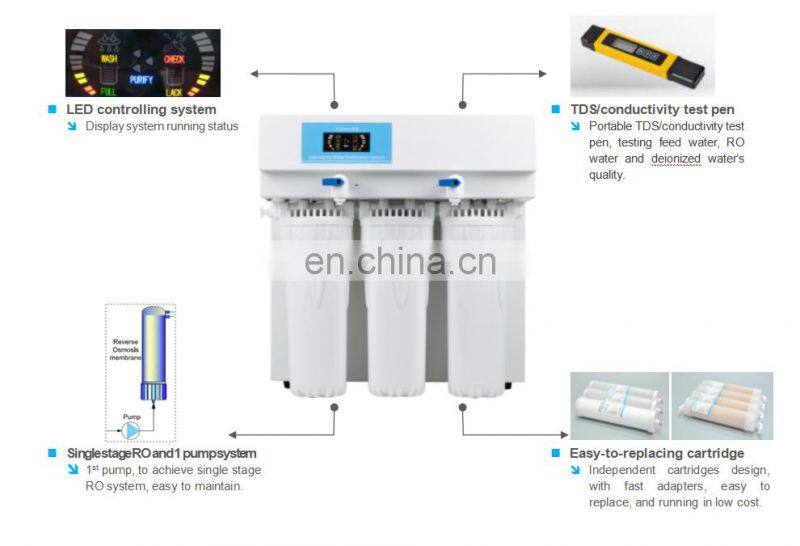

§ Automatic microcomputer controlling system, LED real-time animation mode display.
§ Running status is showed in the LED display, such as flushing, producing water, full tank, water shortage, leakage and service.
§ Power on self-test, power reset, alarm when work more than 6 hours continuously, water shortage, leakage, low and high pressure.
§ 3 procedure of the reverse osmosis membrane’s self-flushing: power on, water shortage reset and work more than 2 hours continuously, extend the life of RO membrane.
§ 2 kind of installation type, Desk and wall-mounted (except for 45 series and built-in tank model).
§ High-strength metal shell with powder painting technics, achieve elegant appearance and meeting GLP standard
§ Pretreatment cartridges, RO module, deionized cartridges, all designed to modularization independently, easy for maintenance and replacement.
§ Built-in 12 liters pressure water tank (IT series), save laboratory space, easier for installation and maintenance.
§ External water tanks is optional to meet different need and assure ample water-supply.
§ Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water’s quality.
§ Standard pretreatment (including PP fiber, and active carbon cartridge), effectively protect RO membrane and run in low cost.
§ RO module with DOW’s membrane, ensure long life, stable operation and high desalinization rate.
§ Precision mixed resin cartridge, combine high pure water quality and low running cost.
§ Portable TDS/conductivity test pen, convenient to test feed water, RO water and deionized water’s quality.

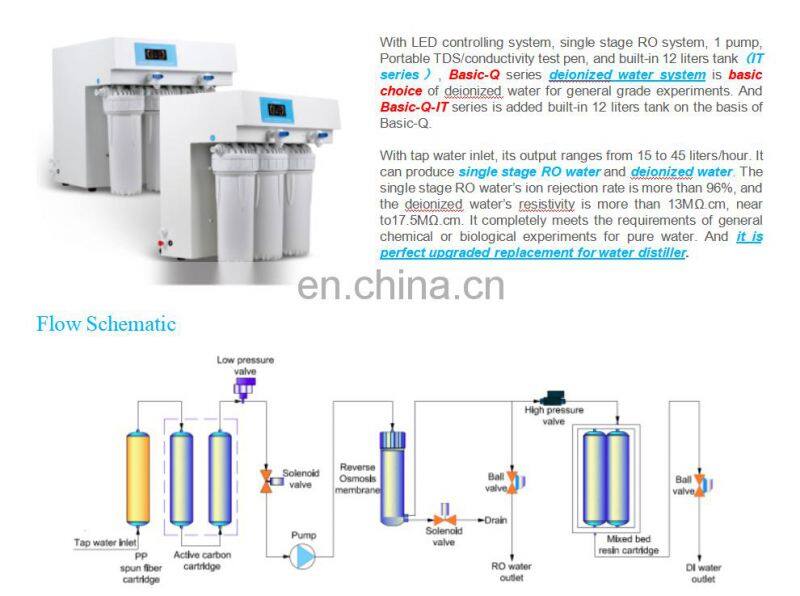

Basic-Q (-IT) series deionized water system (Tap water inlet)
Specifications
Model |
Basic-Q15 |
Basic-Q30 |
Basic-Q45 |
|||
Basic-Q15-IT |
Basic-Q30-IT |
- |
||||
Output(25℃)* |
15 liters/hour |
30 liters/hour |
45 liters/hour |
|||
Flow rate |
Up to 2 liters/minute (with pressure tank) |
|||||
Pure water outlet |
2: reverse osmosis water, deionized water |
|||||
Deionized water quality |
|
|
|
|
||
Resistivity |
13-17.5MΩ.cm |
|||||
Bacteria |
<0.1cfu/ml (with optional 0.2μm PES terminal filter) |
|||||
Particle(>0.2μm) |
<0.1cfu/ml (with optional 0.2μm PES terminal filter) |
|||||
RO water quality |
|
|
|
|
||
Ion rejection rate |
96%-99% (new RO membrane) |
|||||
Organic rejection rate |
>99%, when MW>200 Dalton |
|||||
Particles and bacteria rejection rate |
>99% |
|||||
Feed water requirements |
Tap water, temperature:5-45℃,pressure:1.0-4.0Kgf/cm2 |
|||||
Dimension and weight |
Q15,Q30 series: Length×Width×Height: 410×320×420mm/ Weight: about 15Kg Q15-IT,Q30-IT,Q45 series: Length×Width×Height: 410×400×420mm/ Weight: about 20Kg |
|||||
Electrical requirements |
AC110-240V, 50/60Hz |
|||||
Power |
Q15,Q30 series: 72W, Q45 series: 120W |
|||||
Standard configuration |
Main body (Including 1 set of cartridge)+built-in 12 liters pressure tank+ TDS/conductivity test pen |
|||||
Remarks:
*The value will be influenced by temperature and feed water’s quality.
