Super Series Lab ultrapure water purification system

Super Series Water Purification System

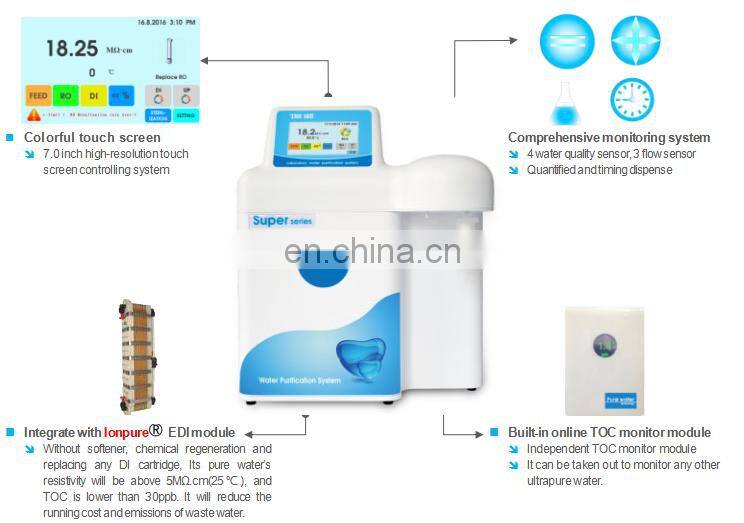

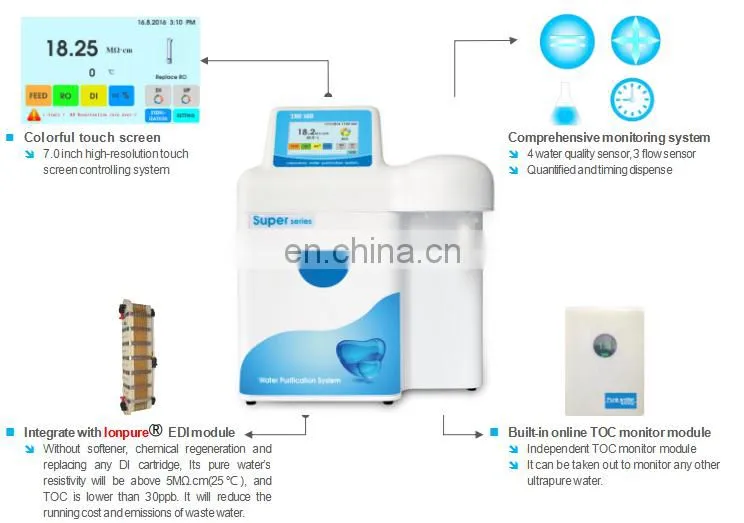

Features and Advantages

n 7.0 inch colorful high-resolution touch screen (16:9) controlling system, achieve finger-touch new experience.

n 4 way online water quality sensor, detect the quality of feed water, 2nd stage RO water, Edi water and ultrapure water respectively. And warn once water quality’s standard exceeding.

n 3 way flow sensor, count source water consumption and achieve quantified dispensing of Edi and ultrapure water.

n Integrate with Ionpure EDI module, the maximum output is 240 liters per day.

n Built-in independent online TOC monitor module (Super-TOC).

n Double stage reverse osmosis technology, assure 2nd RO water quality’s stability from different source water.

n Built-in 3 pump- 1st stage RO pump, 2nd stage RO pump and circulating sanitizing pump.

n All Cartridges replacing alarm function, based on time, flux and water quality, show cartridges’ used and residual life.

n Multiple alarm function: no feed water, full water, water quality’s standard exceeding, cartridge life ending and leakage.

n Auto self-flushing of RO membrane function (interval and continuous time setting), extend RO membrane’s life.

n Auto running data storing function with built-in SD card, and data can be exported through the USB interface.

n System continuous upgrading function through USB interface, and WIFI module is optional.

n Built-in perpetual calendar clock for cartridges and service setting.

n System sanitizing procedure, achieve the disinfection of ultrapure water’s tube and valve.

n System circulation function, achieve ultrapure water’s circulation to keep top quality of ultrapure water.

n Level II password, protect all the parameters setting, and prohibit any unauthorized setting change.

n Attached 50 liters water tank with conical bottom, including air filter, to prevent co2 and bacteria. Also external tanks is optional.

n Whole plastic shell with high-strength, avoid rusting and keep clean, to meet GLP standard.

n 4 door and easy-to-replacing cartridge design, convenient to maintain system and replace cartridges.

n Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water’s quality.

n Optimized pretreatment (including PP fiber, KDF and active carbon cartridge), effectively protect RO membrane.

n RO module with DOW’s membrane, ensure long life, stable operation and high desalinization rate.

n Ultrapure cartridge with DOW’s top polishing resin, ensure ultrapure water’s quality up to 18.2 MΩ.cm, with the lowest TOC level.

n Double wavelength (185&254nm) ultraviolet lamp module, restrain bacteria’s increase and reduce TOC.

n MWCO 5000D ultrafiltration module, effectively eliminate endotoxin, and suitable for precise cell cultivating and IVF.

n (0.45+0.1)µm double layer PES terminal disinfection filter, assure that terminal pure water is absolutely axenic.

Super series ultrapure water stem (tap water inlet)

 With 7.0 inch touch screen system, 4 way water quality sensor, 3 way flow sensor for quantified dispensing, Ionpure EDI module, built-in TOC module, 2 stage RO and 3 pump system, Super series is top choice of ultrapure water for high grade experiments.

With tap water inlet, its output is 10 liters/hour. It can produce Edi water and ultrapure water. The Edi water’s resistivity is above 5MΩ.cm, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

Specifications

Remarks:

*The value will be influenced by temperature and feed water’s quality.
