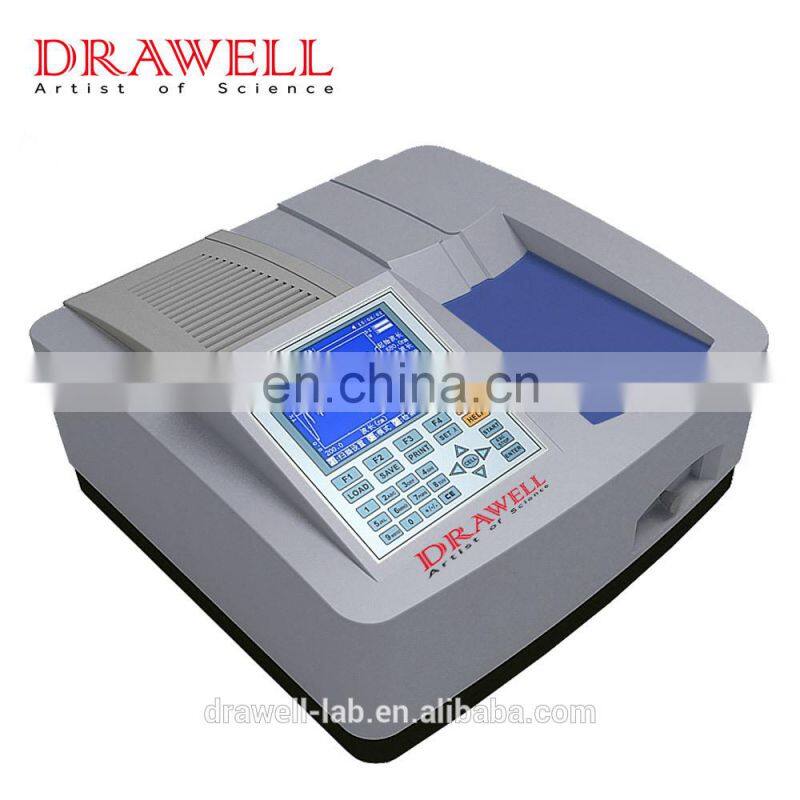

Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer

Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer thumbnail-1
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer thumbnail-2
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer thumbnail-3
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer thumbnail-4
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer thumbnail-5
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer thumbnail-6
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer photo-1
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer photo-2
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer photo-3
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer photo-4
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer photo-5
Drawell Brand DU-8000 uv Vis Double Beam Spectrophotometer photo-6
US$ 1,900 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Drawell
Place of Origin:
Shanghai, China
Model Number:
DU-8800D/DU-8800DS
Contact Supplier Request Quote Chat Now
Shanghai Drawell Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Drawell
Place of Origin Shanghai, China
Model Number DU-8800D/DU-8800DS
Size 545x468x245mm
Weight 21kgs / 25kg
Wavelength Range 190-1100nm, 190-1100nm
Focal Length 1.8nm/1.0nm /0.5nm/1nm/1.5nm/2nm/4nm/5nm







Drawell Brand DU-8000 uv vis double beam spectrophotometer

DU-8800D/DU-8800DS

Double Beam UV/VIS Spectrophotometer


DU-8800D spectrophotometer are advanced double beam optical system. Double beam optical structure can inhibit the drift, Suitable for long time test. DU-8800D with 1.8nm fixed bandwidth. They are suitable for research, biochemical and pharmaceutical lab applications.



 Features

Double beam ensure low drift, low noise and Low stray light

High speed MCU, high precision AD, large storage capacity

Large LCD display (320*240 Dots)

1.8 nm Bandwidth meet Pharmacopoeia

Data and Curve can be stored in real-time

Online software upgrade capability

Lamps can be turned on/off individually

Easy to change Pri-aligned lamps

Reinforced baseboard and bracket assures durability

 Function:

Photometric

Quantitative(Standard Curve)

WL Scan(Spectrum Scan)

Time Scan(Kinetics)

DNA/Protein Test

Multi-WL Test

System Utility





Specifications:

Model

DU-8800D

DU-8800DS

Wavelength Range

190-1100nm

Spectral Bandwidth

1.8nm/1.0nm optional

0.5/1/1.5/2/4/5nm adjustable

Optical System

Double Beam , Blazed Holographic Grating (1200 lines/mm)

Wavelength Accuracy

±0.3nm

Wavelength Repeatability

≤0.2nm

Wavelength Setting

Auto, Resolution 0.1nm

Photometric Range

0~200%T, -0.3­~3A, 0~9999C

Photometric Accuracy

±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T)

Photometric Repeatability

≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)

Stray Light

≤0.05%T(220/360nm)

Scan Speed

High, Medium, Low.  Max.2000nm/minute

Baseline Flatness

±0.001A

Stability

±0.001A/h (500nm,0A)

Noise

≤0.2%T/3min (250/500nm,0%T); ≤0.3%T/3min (250/500nm,100%T)

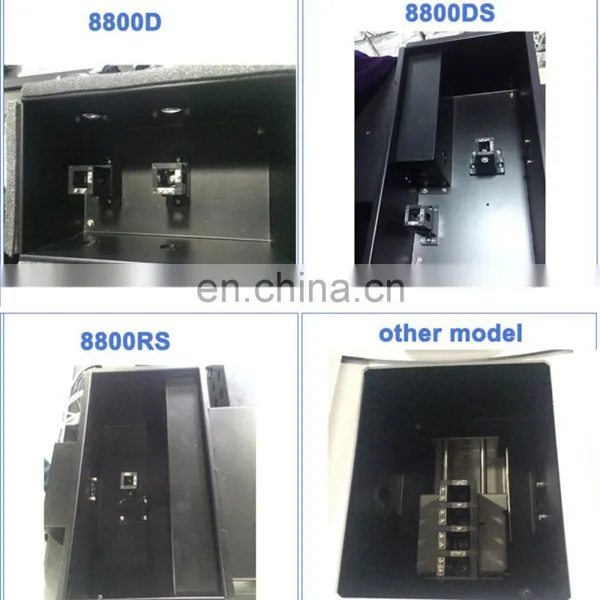

Sample Compartment

Accommodate 5-100mm Pathlength Cuvette

Detector

Silicon Photodiode

Lamps

Tungsten Lamp & Deuterium Lamp (Pre-aligned)

Display

Graphic LCD (128x64 Dots)

Keypad

30-key Alphanumeric Membrance Keypad

Output Port

USB Port & RS232 Port

Printer

Mini Serial Printer; PC Printer

PC Software

PC Scanning Software

Power Requirements

AC 90-250V,50/60Hz

Dimension

545x468x245mm

Net Weight / Gross Weight

21kgs / 25kg







Product show:

Drawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometer

Drawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometer

Intruduction

Drawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometerDrawell Brand DU-8000 uv vis double beam spectrophotometer
