US$ 2,000 - 4,200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DRAWELL
Place of Origin:
Shanghai, China
Model Number:
DU-8800RS
Contact Supplier Request Quote Chat Now
Shanghai Drawell Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DRAWELL
Place of Origin Shanghai, China
Model Number DU-8800RS
Size 635x515x255mm
Weight 19kgs / 24kgs
Measurement Range 190-1100nm
Wavelength Range 190-1100nm
Focal Length 0.5/1/2/4/5nm Variable

Product Description

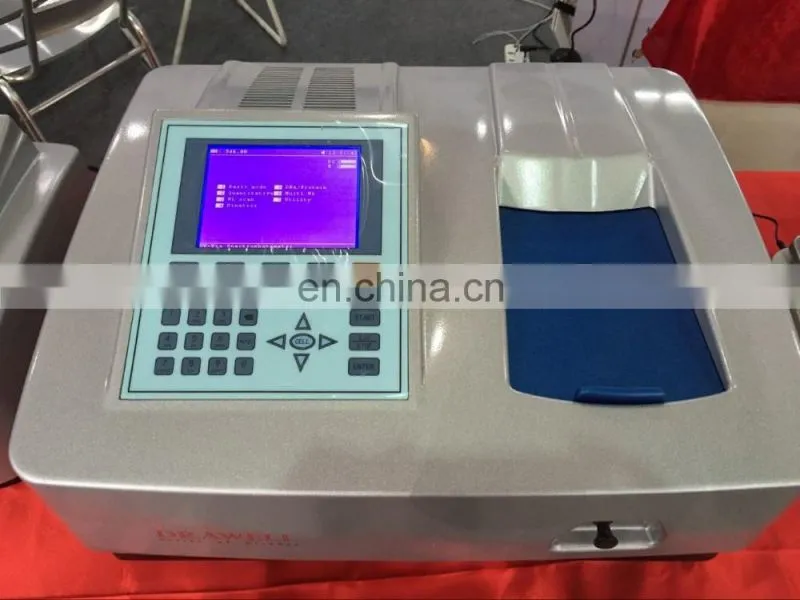

DU-8800R/ DU-8800RS Split Beam UV/VIS Spectrophotometer



DU-8800R/DU-8800RS spectrophotometer are advanced split beam ratio monitoring optical system. DU-8800R with 1.8nm fixed bandwidth,  DU-8800RS with optional bandwidth. They are suitable for biochemical, pharmaceutical and clinical lab applications.



Features

Split beam ensure low drift, low noise and Low stray light

High speed MCU, high precision AD, large storage capacity

Large LCD display (320*240 Dots)

1.8nm or variable Bandwidth meet Pharmacopoeia

Data and Curve can be stored in real-time

Online software upgrade capability

Lamps can be turned on/off individually

Easy to change Pri-aligned lamps

Reinforced baseboard and bracket assures durability



Function

Photometric

Quantitative(Standard Curve)

WL Scan(Spectrum Scan)

Time Scan(Kinetics)

DNA/Protein Test

Multi-WL Test

System Utility





Specifications:

Model

DU-8800R

DU-8800RS

Wavelength Range

190-1100nm

Spectral Bandwidth

1.8nm/1.0nm Optional

0.5/1/2/4/5nm Variable

Optical System

Split Beam Ratio Monitoring, Blazed Holographic Grating (1200 lines/mm)

Wavelength Accuracy

±0.3nm

Wavelength Repeatability

≤0.2nm

Wavelength Setting

Auto, Resolution 0.1nm

Photometric Range

0~200%T, -0.3­~3A, 0~9999C

Photometric Accuracy

±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T)

Photometric Repeatability

≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)

Stray Light

≤0.05%T(220/360nm)

Scan Speed

High, Medium, Low.  Max.2000nm/minute

Baseline Flatness

±0.0015A

Stability

±0.002A/h (500nm,0A)

Noise

≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T)

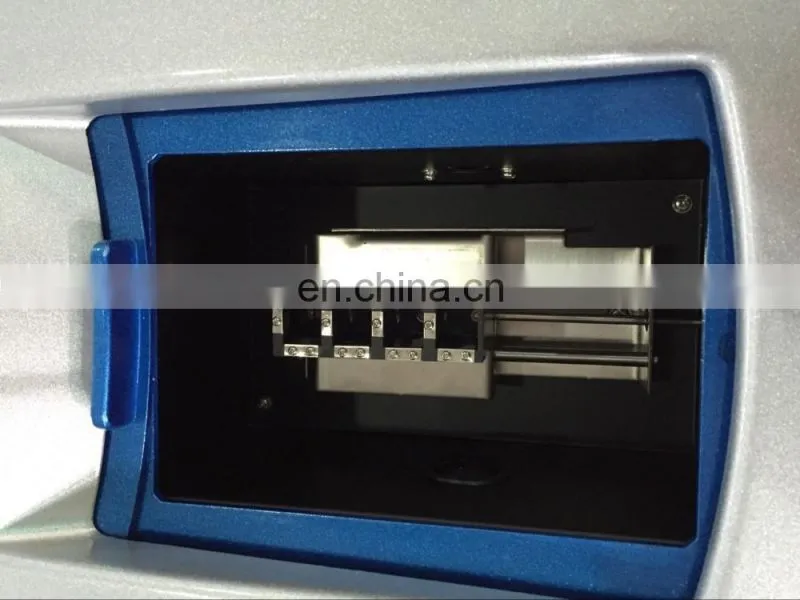

Sample Compartment

Accommodate 5-100mm Pathlength Cuvette

Detector

Silicon Photodiode

Lamps

Tungsten Lamp & Deuterium Lamp (Pre-aligned)

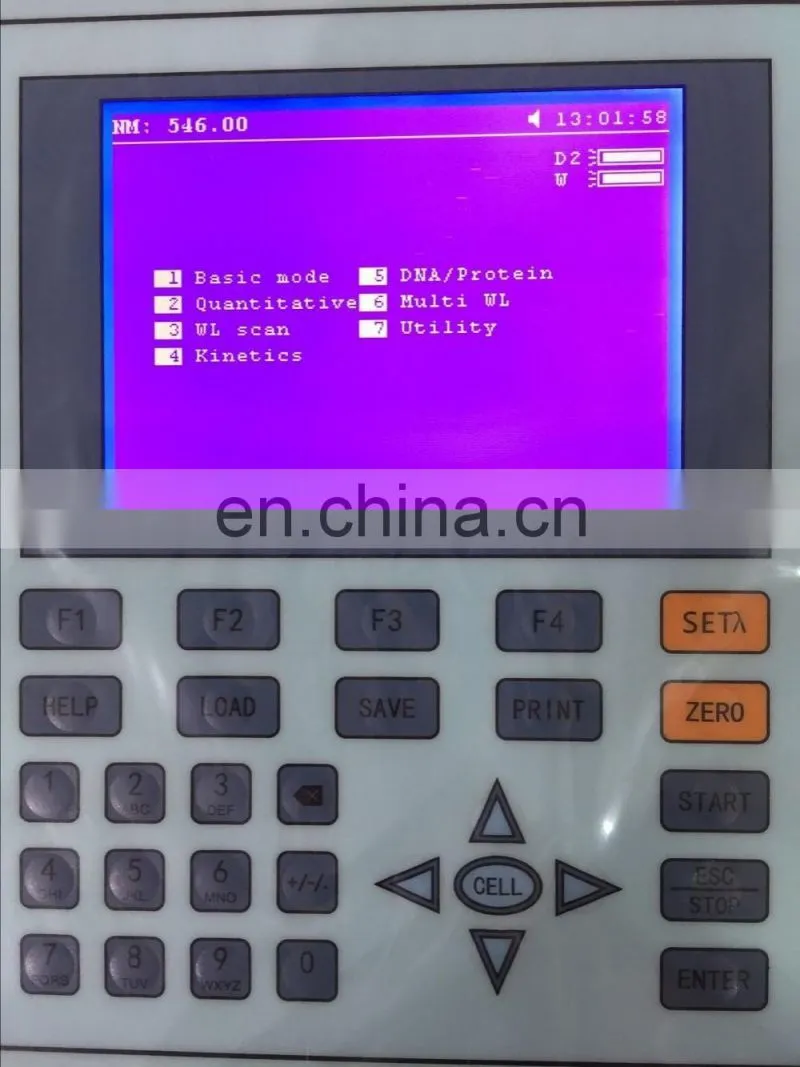

Display

Graphic LCD (320x240 Dots)

Keypad

30-key Alphanumeric Membrance Keypad

Output Port

USB Port & RS232 Port

Printer

Mini Serial Printer; PC Printer

PC Software

PC Scanning Software

Power Requirements

AC 90-250V,50/60Hz

Dimension

545x468x245mm

635x515x255mm

Net Weight / Gross Weight

19kgs / 24kgs

19kgs / 24kgs
