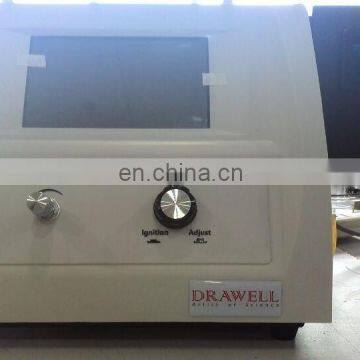

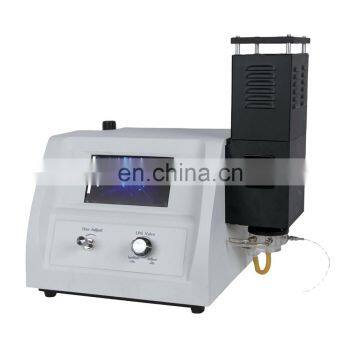

DW-FP Series Flame Photometer
Application Areas

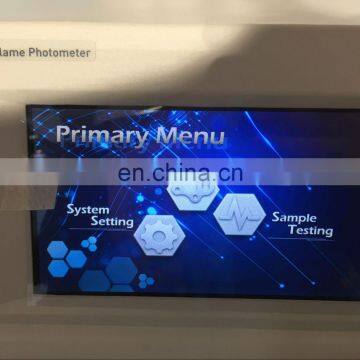

A lot of new technology and new materials are adopted. Such features as LCD display, menu-type instruction operation, curve storage, flameout protector and outside printout are enabled by the application of top grade embedded mono-chip computer circuit.
Feature :
|
Direct concentration read-out |
Automatic Calculation of correlation coefficient |
|
Pre-selection of flame sizes |
Flameout protection device |
|
Measuring range changing |
LPG burning gas |
|
Air compressor including |
|
Specifications
*RangeK:0~999.9;Na:0~999.9;Li:0~999.9
*Sensitivity:K:0.2μg/mL;Na:0.2μg/mL
* Linearity:K:0.2μg/mL;Na:0.7μg/mL
* Drift:less than 3% within 15s
* Reproducibility:3%
* Aspiration rate:<6mL/min
* Fuel supply:L.P.G.
Working conditions
* Environmental Temperature: 10 oC~35oC
* Relative humidity:≤85%
*The instrument should be placed horizontally, avoiding direct sunshine radiation. There is no disturbance of strong electromagnetic field or vibration.
*Fire extinguishing device should be equipped in the application field and good aeration should be guaranteed. Power supply: AC220V±22V, frequency 50Hz±1Hz,with good grounding.
Standard configuration:
* Main Instrument 1
* Power Cable 1
* Chimney 1
* Clearing rod 2
* Air compressor 1
* Printer SP-T 2425SK 1
Optional accessories:
* Printer SP-T 2425SK
* Air compressor
* Lithium filter
