Home > Products > Spectrophotometer > DTR3010 Drawell Laboratory Portable Raman Spectrometer Prices
DTR3010 Drawell Laboratory Portable Raman Spectrometer Prices
- Shanghai
- T/T Credit Card
You May Like
-
DTR3010 Portable Raman Spectrometer
-
DW-AA320N Lab Atomic Absorption Spectrophotometer Price
-
AA4530F Single Beam Atomic Absorption Spectrophotometer
-
Hollow Cathode Lamp for AAS Atomic Absorption Spectrophotometer
-
Flame AAS Atomic Absorption Spectrophotometer DW-AA4530F
-
Flame AA320N Atomic Absorption Spectrophotometer
Product Details
| Brand Name | Drawell | Place of Origin | Shanghai, China | |
| Model Number | DTR3010 | Size | 30*22.5*13.2cm | |
| Weight | 7.5Kg, 7.5 Kg | Wavelength Range | 200-1100 nm | |
| Focal Length | 2 cm-1@900nm |
Product Description
Portable Cooled Raman Spectrometer
Model: DTR3010
GENERAL DESCRIPTION
DTR3010 portable Raman spectrometer is suitable for field operation. The outstanding reliability makes the detection result much accurate. The excellent low stray light conditions that enable the spectrometer has a wide range of application, especially in the biochemical analyzer, food safety, pharmaceutical engineering. The multi-function software facilitated the spectral analysis process in application. The remote experiment through internet access makes the bald test item much easier.
FEATURES
*Ultra-high sensitive FFT-CCD with TEC cooling;
*Ultra-low noise circuit;
*Powerful embedded software;
*Fluorescent background eliminate;
*Peak searching and indicating;
*10.1’’ LCD;
*Android 4.0 OS;
*USB 2.0;
*Touch operation;
*Friendly HMI;
*Battery Endurance > 3 hours;
*Remote control via LAN;
*IP67 case;
APPLICATIONS
*Biological science
*Pharmaceutical engineering
*Forensic analysis
*Agriculture and food safety
*Gemstone
*Environmental science
Specifications
DTR3010 System | |
Interface | USB 2.0/LAN |
OS | Android 4.4.2 |
Battery endurance | >3 h |
Integration time | 4ms - 120s |
Supply voltage | DC 19V(+/-5%) |
Operating temperature | 5~40 ℃ |
Operating humidity | < 95% |
Size (L*W*H) | 30×22.5×13.2 cm3 |
Weight | 7.5 Kg |
Reliability | |
Spectral stability | σ/μ < 0.5% (COT 8 hours) |
Temperature stability | Spectral shift ≤ 1 cm-1 (10-40 ℃) |
Variation of Spectral intensity in 5 ~ 40 ℃ | <±5% |
Optics Parameter | |
Spectral region | 250-2400 cm-1 |
Spectral resolution | 2 cm-1@900nm |

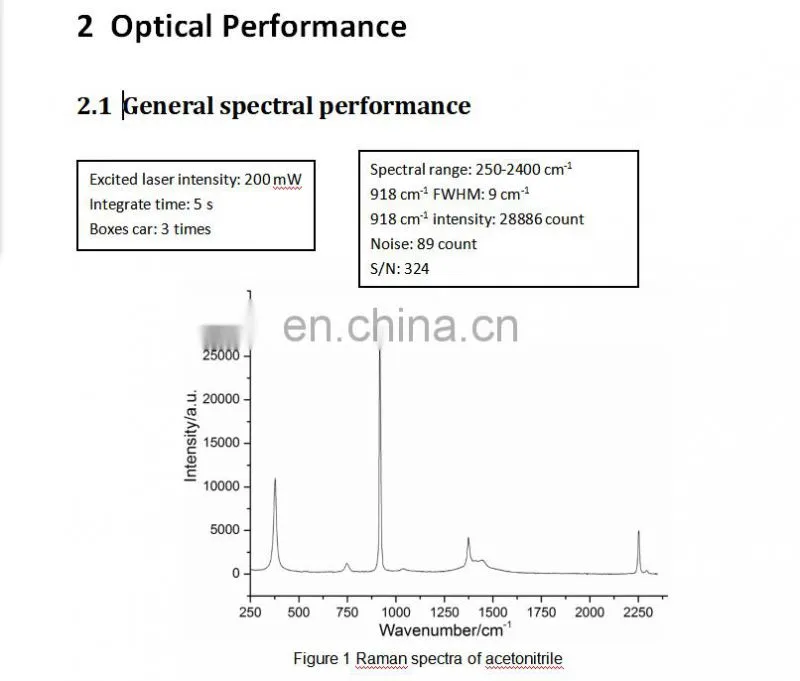

Signal-to-Noise | >3000:1 (918 cm-1 of Acetonitrile,10s accumulation, 200mW) |
Incidence slit | 50 μm |
Optical system | f/4 Crossed Symmetrical Czerny-Turner |
Focal length | 98 mm for incidence and output |
Detector | |
Type | Ultra-high sensitive FFT-CCD with TEC cooling |
Detectable range | 200-1100 nm |
Effective pixel | 2048*64 |
Dynamic range | 50000:1 |
Pixel dimension | 14μm×14μm |
Full well capacity | 300 Ke- |
Sensitivity | QE>40%, 6.5 μV/e- |
Exciting Laser | |
Center Wavelength | 785nm (±0.5nm) |
FWHM | 0.08 nm |
Output power | ≥500 mW |
Power stability | σ/μ <±0.2% |

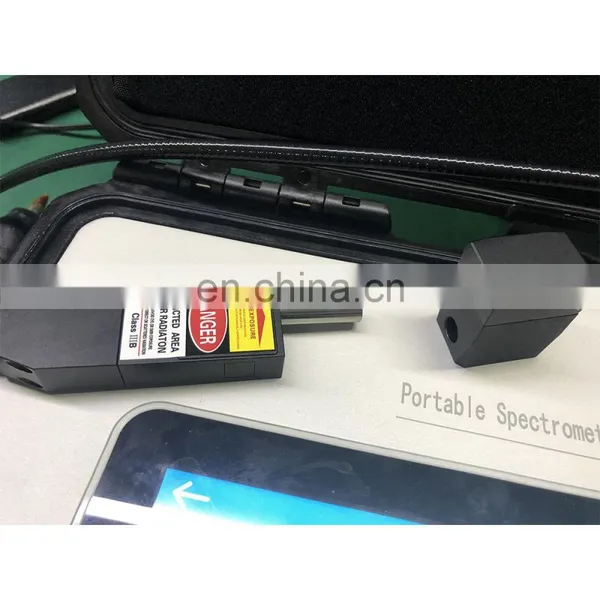

Raman Probe | |
Working distance | 6 mm |
Rayleigh scattering resistance | OD>8 |
Numerical Aperture | 0.3 |
Aperture | 7mm |
