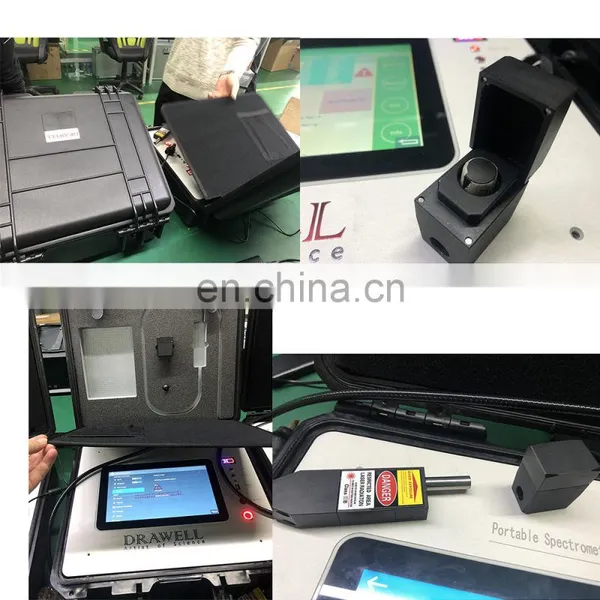

Help CenterDTR3010 Portable Handheld Cooled Raman Spectrometer Portable
Related Products
-
DTR2000 Portable Raman Spectrometer Prices China DrawellUS$ 14,000 - 23,888MOQ: 1 Piece -
Raman Handheld Spectrometer PriceUS$ 15,000 - 20,000MOQ: 1 Piece
-
DW-CS-8820 High-frequency Infrared Carbon Sulfur AnalyzerUS$ 8,750 - 17,000MOQ: 1 Piece
-
DW-CS-8620 Arc Infrared Carbon and Sulfur AnalyzerUS$ 6,000 - 12,000MOQ: 1 Piece
-
DW-CS-8620 Arc Infrared Carbon&Sulphur Analyzer Price DrawellUS$ 3,000 - 9,106MOQ: 1 Piece

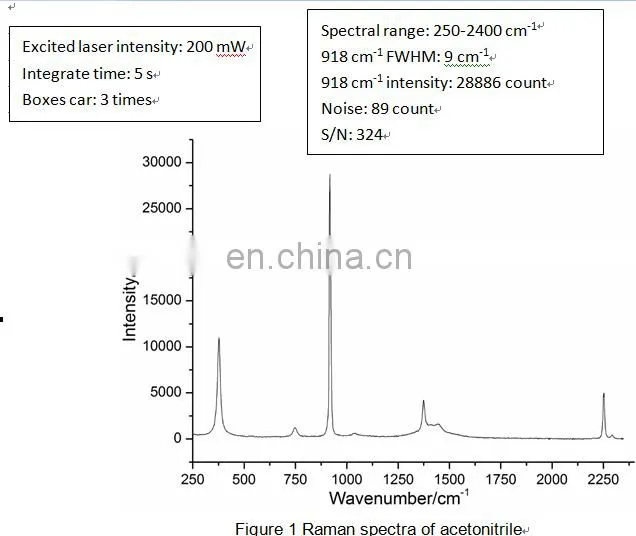

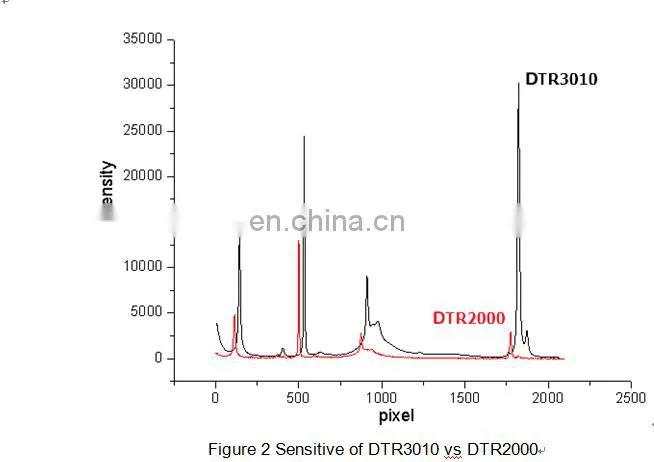

2.1 General spectral performance
2.2 Spectral Resolution

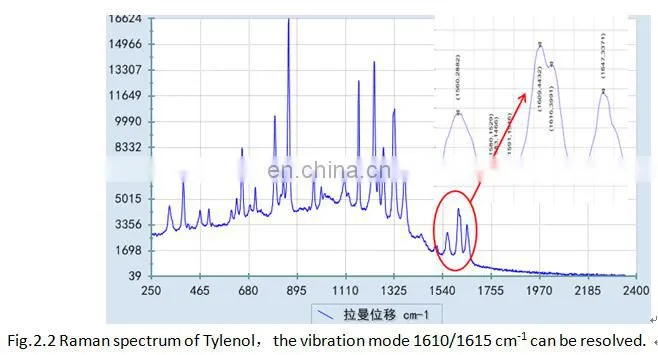

2.2.1 Raman spectral of Tylenol
|
||||
|
||||

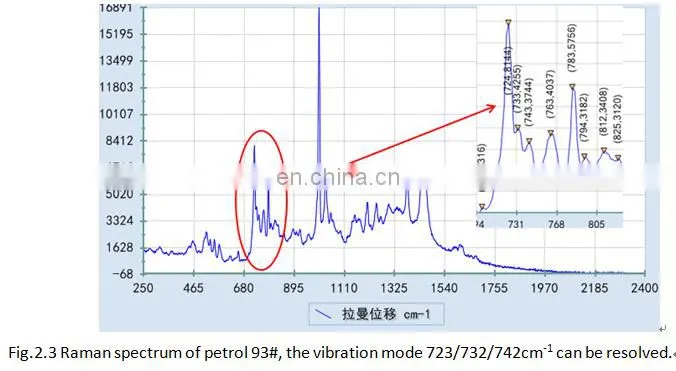

2.2.2 Raman spectral of petrol
|
||||
|
||||
3 Reliability

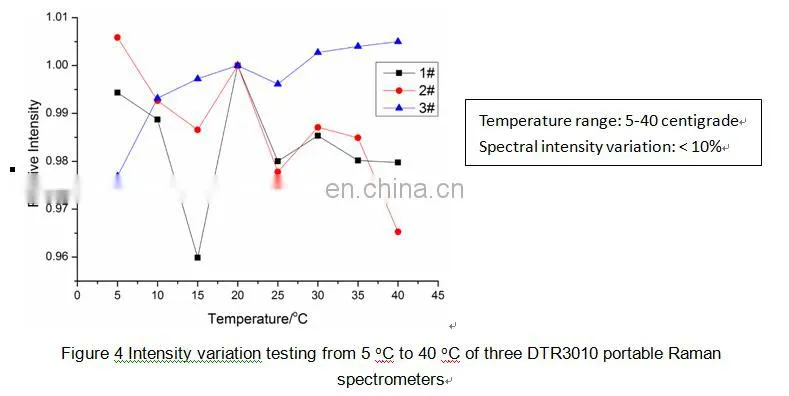

Figure 3.1 and Figure 3.2 showed the temperature reliability testing results of fives DTR3010 portable Raman spectrometers. The testing temperature range was from 5 oC to 40 oC. The spectrometer was kept more than 1 hour at every temperature spots. Acetonitrile was used as the standard sample in the testing. The testing results were calculated using 918 cm-1 of acetonitrile. The wavenumber shift was 1 cm-1 or less(as show in Fig. 3.1). The peak intensity variation was less than 10%
