Customized Micro Raman Spectrometer Measurement System With Stable Frequency

Changchun New Industries Optoelectronics Tech Co., Ltd.
Customized Micro Raman Spectrometer Measurement System With Stable Frequency thumbnail-1

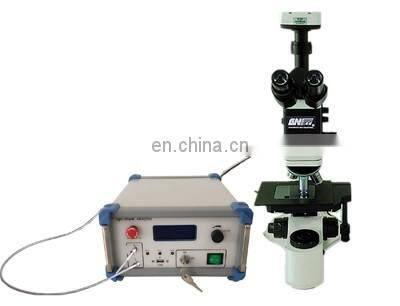

Customized Micro Raman Spectrometer Measurement System With Stable Frequency photo-1
US$ 14,999 - 19,999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
Mic-R-Sys
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Model Number Mic-R-Sys
Size 149*109*50
Weight 1kg
Measurement Range 200-1100nm
Wavelength Range 200-1100nm
Focal Length 532±0.5
Product Description
Micro Raman spectrum measurement system with visualization of accurate positioning make the detection of the Raman signal on different surface of samples possible, and the state of micro area is displayed on the computer at the same time. The system is consist of optimizing confocal microscopic module and high quality Raman detection system, with precision of optical design matching the infinity of micro optical system, optimization of optical path design and flexible module combination. Besides, CNI sincerely provides with high quality laser and spectrometer equipment which can meet customers' demand.

Features

(1) Adjustable laser with stable frequency, avoiding wavelength drift and damage of samples.
(2) Optimization of the confocal module, ensuring that focal plane of the laser and view focal plane of the objective confocal.
(3) Detector with high stability, improving the spectral acquisition efficiency and accuracy.
(4) Modular design, self-assembly, simple operation and easy to carry.
(5) Wavelength range and resolution can be customized.

Application

(1) Identify microns impurities of the pills and describe the distribution.
(2) Distinguish the effective active ingredient and accessories in pills. Describing the distribution and density of occurrence.
(3) Positioning precisely the boundary of different particles in ore or arts.
(4) Describing and locating material contained within mineral or rock.
(5) The identification of trace material evidence, such as the drug, medicine, explosives, textile and so on.

Specifications
Specifications for Customized Micro Raman Spectrometer Measurement System

Microscope

Microscope model
GMM-580
Z-axis focusing system
Coarse and fine Coaxial focus Minimum graduation: 2μm, Limit stopper device
X/Y Mobile stages size
210mm*140mm
Stage moving range
50mm*75mm
Camera
5 Megapixel Imaging System ISH500 (Optional)
Microscope objective
5X-100X (Optional)

Camera

Chip
CMOS, colorized, progressive scanning
Chip size
1/2.5 inch
Effective pixels
5 million
Pixels size
2.2μm*2.2μm
Max Resolution (HxV)
2592*1944
Frame rate
5fps(2592 × 1944 full resolution); 21fps(1280*960);

25fps (1024 × 768); 38fps (640 × 480)
Color depth
24 bit
Noise of amplitude
54 dB
Operating temperature(°C)
0-60
Data interface
High speed USB2.0
Lens mount
Standard C-mount

Laser

Wavelength (nm)
405±0.5
532±0.5
785±0.3
Mode
Single
Single
Single
Spectral line width (cm-1)
-
<0.5
<2
Output power (mW)
1-500
1-1000
>350, >450
Power stability (pk-pk, 4 hours)
<2%
<1%,<3%,<5%
<2%
Parameter of fiber
100um@ 0.22NA
100um@ 0.22NA
100um@ 0.22NA
Noise of amplitude (rms)
-
<0.5%
<0.5%,<1%
Operating mode
CW
CW
CW
Warm-up time (minutes)
<5
<10
<5
Operating temperature (℃)
10-35
15-35
10-40
Expected lifetime (hours)
10000
10000
10000
Warranty
1 year
1 year
1 year

Spectrometer

Wavelength range
405-500nm
(405nm excitation)
532-700nm
(532nm excitation)
785-1100nm
(785nm excitation)
Optical resolution
18-24cm-1
(405nm excitation)
8-12cm-1
(532nm excitation)
5-8cm-1
(785nm excitation)
Pixels
2048 pixels
Pixels size
14um*14um
Dimensions (mm)
149*109*50
Weight (g)
1000
Signal-to-noise ratio
1000:1
Integration time
17ms-10s
Power consumption
450mA@5VDC
Data transfer speed
Full scans into memory every 4 milliseconds with USB 2.0
Full scans into memory every 18 milliseconds with USB 1.1
Inputs/outputs
5 inputs and 5 outputs (opto-isolator inputs/outputs)
Analog channels
One 12 analog input one 12 analog output
Connector
30pin connector

Raman Probe

Excitation wavelength (nm)
405
532
785
Probe main material
Probe material is 2A12 after Blackening; Stainless steel detector tip
Probe focus length(mm)
7.5

Fiber configuration
Two single fiber (100um excitation fiber, 200um optical fiber for collecting light); N.A.=0.22, PVC/metal sheath; 1m Length

Software

Optical spectrum analysis
Spectral Analysis / Raman Analysis 2.0
Camera imaging
Imaging
Operating system
Windows XP/Win7 (32bits or 64 bits)
Accessories

Optical Filter



Laser Power Meter


Laser Goggles

Spectrum Calibration Laser


HLS-1000 Halogen Tungsten

Laser Safety Protection Board


Packing & Delivery
Certifications
Company Infomartion

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
