APPLICATION:
OEM diode laser 462 nm blue laser is made features of ultra compact, long lifetime, low cost and easy operating. It’s easy to be installed in customer’s equipment.
SPECIFICATIONS:
Model |
OEM-XD-462 |
|
Wavelength (nm) |
462±3 |
|
Output power (mW) |
>10000, 11000… , 15000 |
|
Operating mode |
CW |
|
Power stability (rms, over 4 hours) at 25℃ |
<1%, <3%, <5% |
|
Warm-up time (minutes) |
<5 |
|
Beam divergence, half angle (mrad) |
<1.8×0.4 |
|
Beam diameter at the aperture (mm) |
~5 |
|
Polarization direction |
Horizontal+ Vertical |
|
Beam height from base plate (mm) |
35(OEM-XD-462) |
89(XD-462-HS) |
Operating temperature (℃) |
25+/-3 (OEM-XD-462) |
10-35 (XD-462-HS) |
Power supply |
PSU-N-LED / PSU-N-FDA/ PSU-HD-OEM-H |
|
Modulation option |
TTL/Analog 1Hz-5KHz, 1Hz-10KHz, 1Hz-30KHz, and TTL on/off |
|
Expected lifetime (hours) |
10000 |
|
Warranty |
1 year |
|

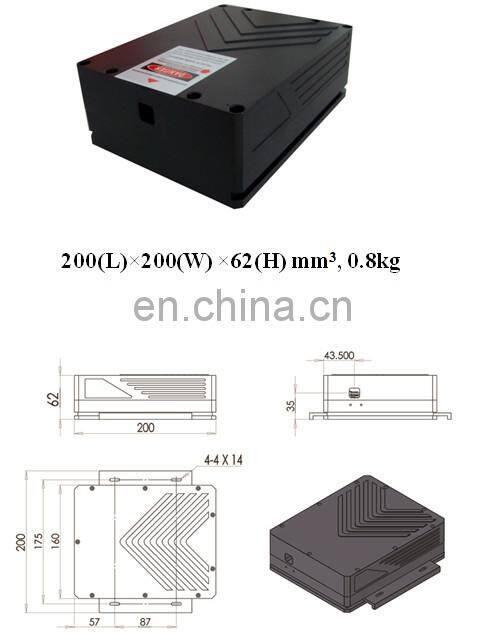

462nm 15W Blue Laser
Laser Head

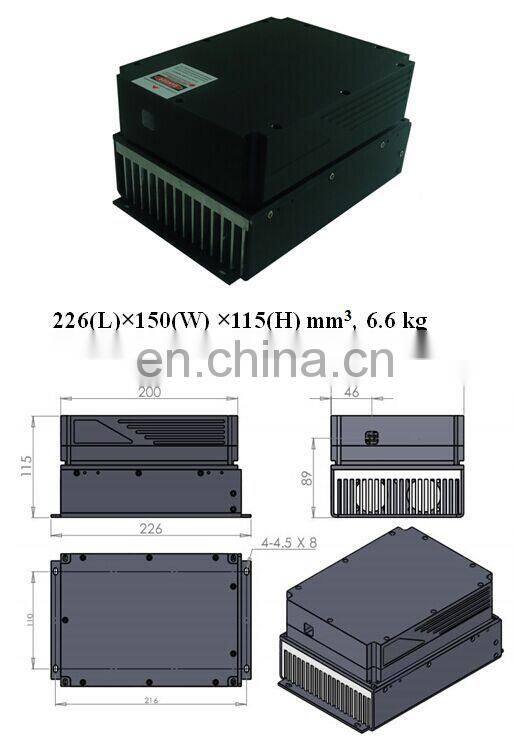

XD-447-HS Laser Head

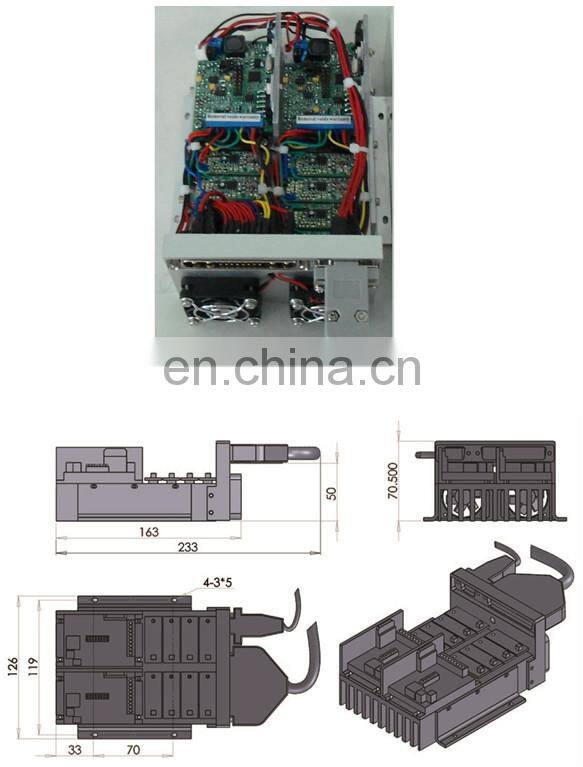

Power Supply

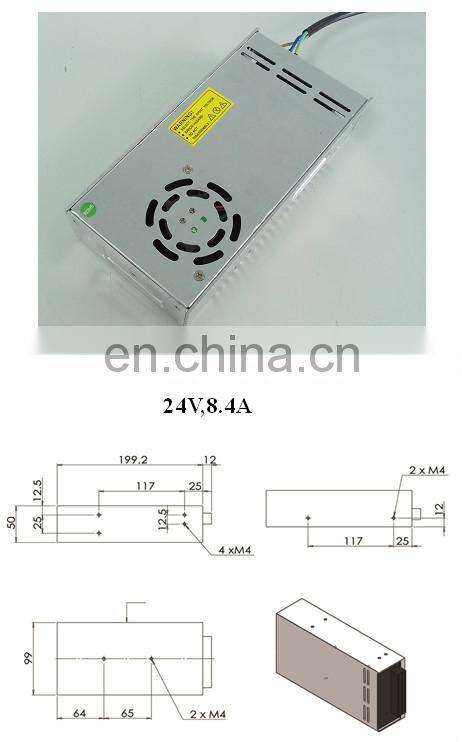

Adapter
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE, RoHS and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
