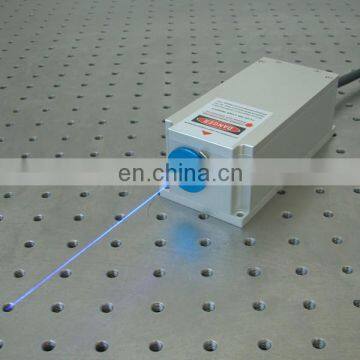

MLL-U-473 DPSS Narrow linewidth 473nm 300mW Blue Laser Module in Ultra compact
APPLICATION:
Supper low noise yellow green laser at 473nm is made features of ultra compact, long lifetime, high stability and reliability, which is used in scientific experiment, medical measurement, instrument, spectrum analysis, etc.
SPECIFICATIONS:
Wavelength (nm) |
473±1 |
Operating mode |
CW |
Output power (mW) |
>1, 5, 10, 20, … , 300 |
Power stability (rms, over 4 hours) |
<1%, <3%, <5% |
Transverse mode |
TEM00 |
Spectral linewidth (nm) |
<0.003 |
Noise of amplitude (rms, 1Hz~20MHz) |
<0.5%, <1% |
M2 factor |
<1.2 |
Beam diameter at the aperture (1/e2, mm) |
0.70±0.05 |
Beam divergence (mrad) |
<1. 5 |
Polarization Ratio |
>100:1 |
Warm-up time (minutes) |
<10 |
Pointing stability after warm-up (mrad) |
<0.05 |
Beam height from base plate (mm) |
27.4 |
Laser head consumption(W) |
15 (typical) , <25(40℃) |
Max. Laser Head Baseplate Temp (°C) |
50 |
Operating Temperature (°C) |
10-40 |
Power supply (90-264VAC) |
PSU-H-FDA |
Modulation option |
TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation optional |
Expected lifetime (hours) |
10000 |
Warranty |
1 year |
Dimension
Laser head MLL-U-473
Power supply PSU-H-FDA
