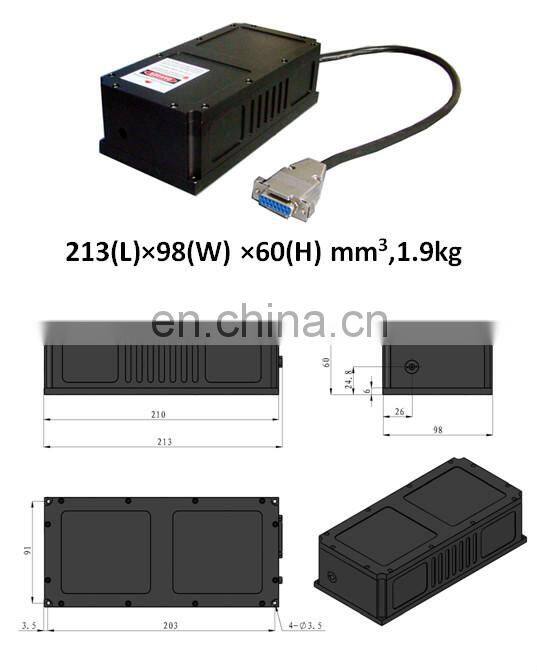

50mW 473nm Blue DPSS Single longitudinal mode laser
APPLICATION:
Laser modulation frequency of this laser system can be up to 1MHz, It is mainly used in such fields as laser text-image processing , laser lithography, laser Phototypesetting, and laser digital communication.It is suitable for OEM system integration and scientific research laboratories etc.
SPECIFICATIONS:
Wavelength (nm) |
473±1 |
Output power (mW) |
>1,10,20...50 |
Transverse mode |
Near TEM00 |
Longitudinal mode |
Single |
Power Stability (rms,over 4 hours) |
<1%,<3%,<5% |
Warm-up Time (minutes) |
<10 |
M2 factor |
<1.5 |
Beam divergence, full angle (mrad) |
<1.5 |
Beam Diameter at the aperture 1/e2 (mm) |
~3.0 |
Optical Noise (rms,1~20MHz) |
<0.5% |
Spectral linewidth (nm) |
<0.00001 |
Beam height from base plate (mm) |
24.8 |
Coherent length (m) |
>50 |
Pointing stability after warm-up (mrad) |
<0.05 |
Polarization ratio |
> 100:1 |
Power supply (90-264VAC) |
PSU-H-FDA-AOM |
Modulation |
>1MHz |
Operating temperature(℃) |
10~35 |
Expected lifetime (hours) |
10000 |
Warranty |
1 year |

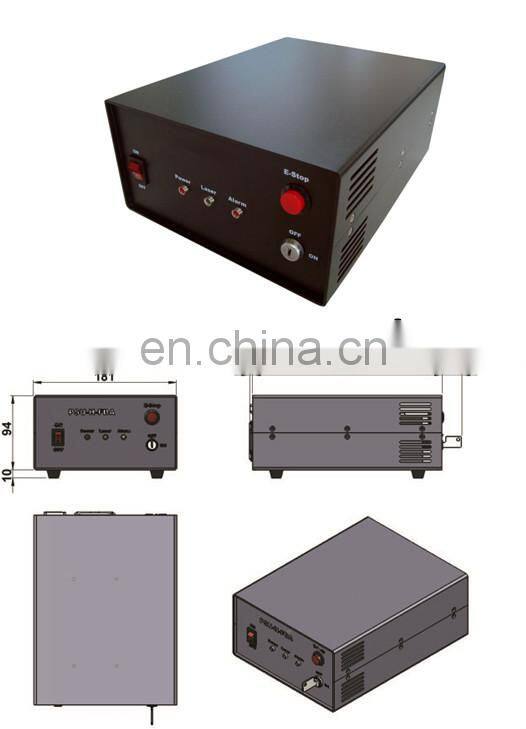

PSU-H-FDA-AOM Power supply
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE, RoHS and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
