Home > Products > brushed dc gear motor > 52JX300K.52ZYT dc Planetary Gearhead Motor Catalogue, With Rated Torque Upto 30N.m

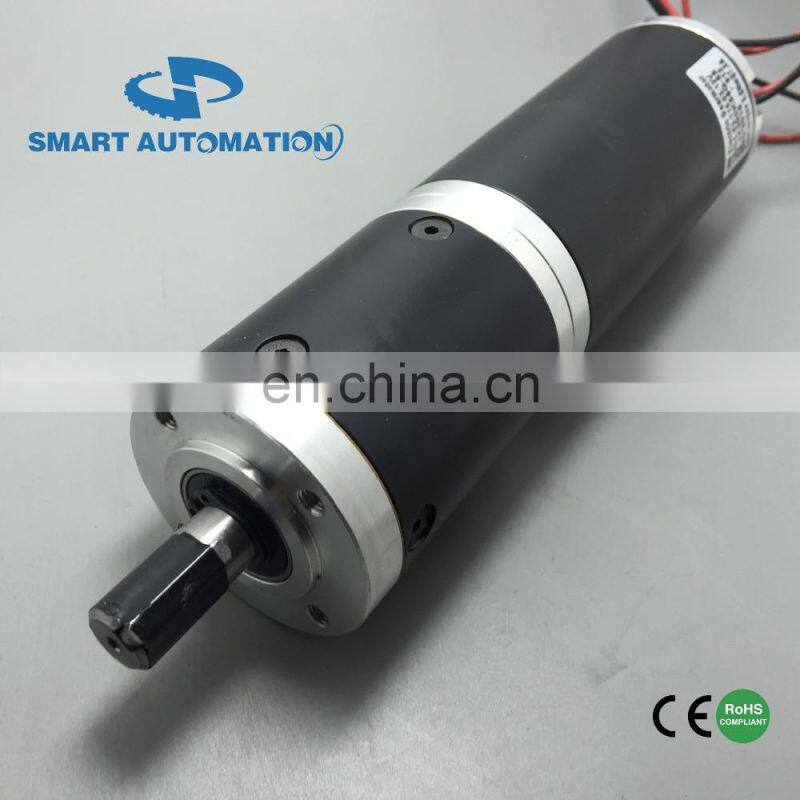

52JX300K.52ZYT dc Planetary Gearhead Motor Catalogue, With Rated Torque Upto 30N.m
US$ 18 - 60
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
56JXE300K.63ZYT Planetary Gearhead 12V 24V dc Gear Motor Rated Torque Upto 30Nm
-
42JXE.42ZYT Dc Planetary Gear Reducing Motor Rated Torque Upto 15N.m
-
63WG.63ZYT Dc Worm Gear Motor Data Sheet OPTION Optical Encoder 100cpr to 2000cpr
-
Customized High Torque 12v 24v 36v 48v dc Gear Motor, Power 100w 200w 300w
-
OD 63mm Upto 45Nm High Torque 12v 24v Planetary Gearbox dc Geared Motor, Power 50w 100w 200w
-
82PLG.80ZYT Large Torque Planetary Gear dc Motor, Rated Torque Upto 120N.m
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 52JX300K.52ZYT | Type | Gear Motor | |
| Certification | CE, ROHS | Torque | 1N.m~30N.m | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | 5rpm~1000rpm | |
| Commutation | Brush |
Product Description

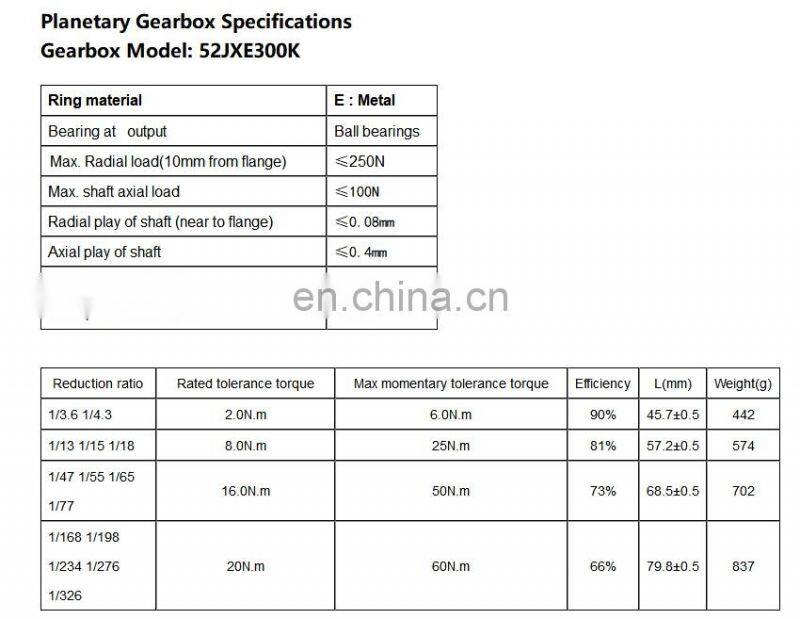

52JX300K.52ZYT SERIES PM DC PLANETARY GEAR MOTOR (with max. rated torque 30N.m)
52JX300K.52ZYT SERIES Gear Motor Drawing:

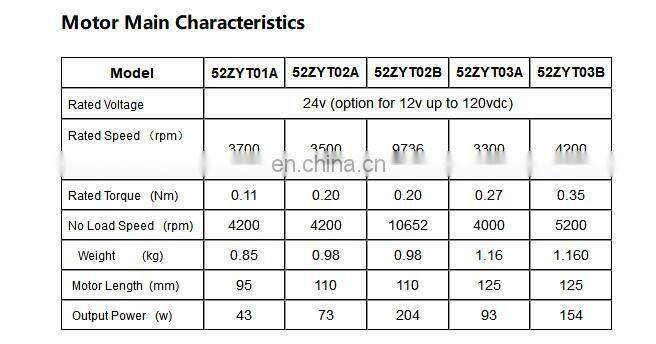

52ZYT Series Motor Specification:
Ball bearing Hard ferrite magnet, 2- poles Protection class IP 50 Insulation class: B CE and ROHS certified
We provide customized voltage, winding, shaft, mounting, and lead configurations
Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder
