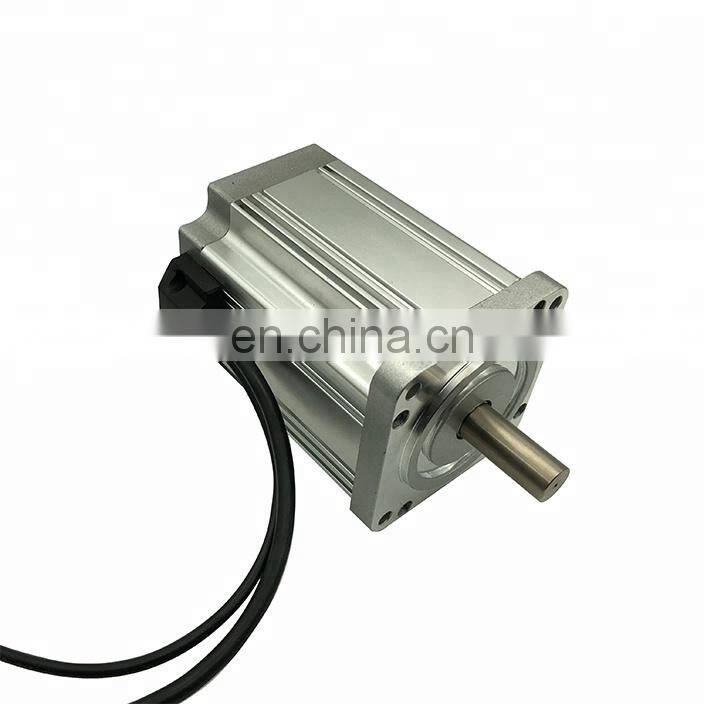

Size 80mm 24 v Bldc Motor Ip54 Ip56, Rated 24volt 150w 200w 300w
BELOW ARE ONLY TYPICAL MODELS
WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING,
AND MOTOR ADDERS FOR ENCODER, GEARBOX, BRAKE...ETC
80BLS Series Brushless Dc Motor
General specification
Item | Specification |
Winding type | Delta |
Hall effect angle | 120° (electrical angle) |
Shaft run out | 0.025mm |
Radial play | 0.06mm@450g |
End play | 0.08mm@450g |
Max. radial force | 200N@10mm from the flange |
Max. axial force | 60N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Electric connection
Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Blue | HALL A |
| |
4 | Green | HALL B |
| |
5 | White | HALL C |
| |
6 | Red | UL1007/18AWG | PHASE U |
|
7 | Yellow | PHASE V |
| |
8 | Black | PHASE W |
|
Technique Specification
Model | 80BLS01A | 80BLS02A | 80BLS03A | 80BLS04A | |
Number of phase | 3 | ||||
Number of pole | 8 | ||||
Voltage | V | 24v(Option for 12v up to 230vdc) | |||
No load speed | rpm | 4200 | 4200 | 4200 | 4200 |
Rated torque | Nm | 0.3 | 0.65 | 1 | 1.3 |
Rated Speed | rpm | 3000 | 3000 | 3000 | 3000 |
Rated Current | A | 6.5 | 12.5 | 18 | 20.5 |
Rated Power | W | 94 | 200 | 315 | 410 |
Weight | Kg | 1.6 | 2.2 | 3 | 3.8 |
Length | mm | 85 | 105 | 115 | 145 |

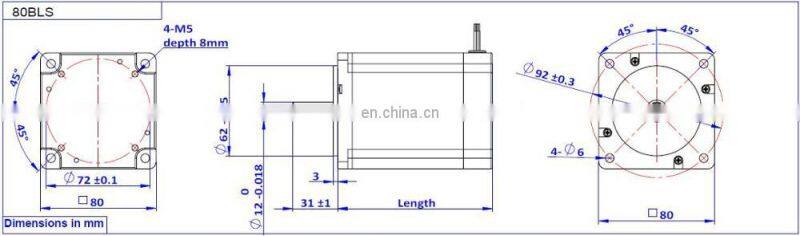

Dimensions
