82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm

Changzhou Smart Automation Motor Manufacturing Co., Ltd.
82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm thumbnail-1
82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm thumbnail-2
82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm thumbnail-3
82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm thumbnail-4
82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm photo-1
82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm photo-2

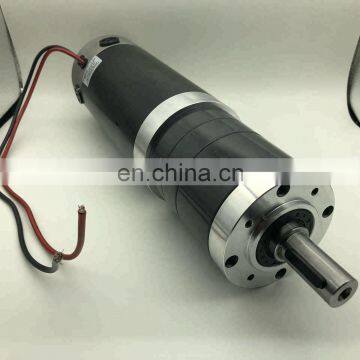

82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm photo-3

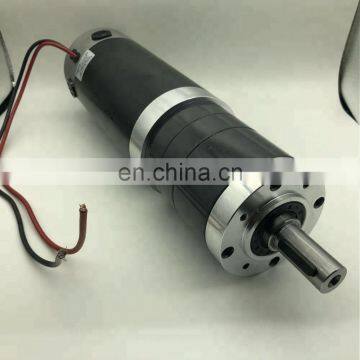

82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120Nm photo-4
US$ 60 - 100 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart automation
Place of Origin:
Jiangsu, China
Model Number:
82plg.90zyt
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart automation
Place of Origin Jiangsu, China
Model Number 82plg.90zyt
Type Gear Motor
Certification CE, ROHS
Torque customed
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Drip-proof
Voltage(V) 24V
Output Power 100-600w
Speed(RPM) customed
Commutation Brush



82PLG.90ZYT SERIES LARGE TORQUE PLANETARY GEAR MOTOR (with rated torque up to 120N.m)







82plg.90zyt SERIES heavy duty large torque geared dc motor, Helical gears High Torque upto 120Nm





90ZYT Series Motor Specification:

Ball bearing Hard ferrite magnet, 4- poles Protection class IP 54 Insulation class: B CE and ROHS certified

Model

Rated voltage V

No load speed rpm

No load current  A

Rated speed  rpm

Rated torque  N.m

Output power W

Rated current  A

Stall torque          N.m

Stall current   A

Motor Length  mm

90ZYT01A-12V

12

3600

3.5

3000

1.2

377

41.5

7.4

240

155

90ZYT01A-24V

24

3600

2.5

3000

1.2

377

20.5

7.4

114

155

90ZYT02A-12V

12

3600

3.5

3000

1.8

565

65

12.8

438

199

90ZYT02A-24V

24

3600

2.5

3000

1.8

565

32

12.8

210

199

We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder







82PLG Planetary Gearbox Specification:

*Helical gears at first stage

Reduction ratio

1/3.65

1/5.36

1/6.55

1/8.63

1/13.5

1/18.9

1/24.6

1/28

1/33.9

1/44.7

1/67

1/81.1

1/91.3

1/102.9

Number of gear trains

1

1

1

1

2

2

2

2

2

2

2

3

3

3

Gearbox Length (L) (mm)

58.3

58.3

58.3

58.3

80.5

80.5

80.5

80.5

80.5

80.5

80.5

103.2

103.2

103.2

Transmission efficiency

90%

90%

90%

90%

81%

81%

81%

81%

81%

81%

81%

73%

73%

73%

Max. rated transmission torque (N.m)

20

20

20

20

60

60

60

60

60

60

60

120

120

120

Max. permissible load in short time  (N.m)

40

40

40

40

120

120

120

120

120

120

120

240

240

240

Reduction ratio

1/119

1/127.7

1/145.4

1/165.6

1/191.6

1/231.6

1/301.7

1/393



Number of gear trains

3

3

3

3

3

3

3

3



Gearbox Length (L) (mm)

103.2

103.2

103.2

103.2

103.2

103.2

103.2

103.2



Transmission efficiency

73%

73%

73%

73%

73%

73%

73%

73%



Max. rated transmission torque (N.m)

120

120

120

120

120

120

120

120



Max. permissible load in short time (N.m)

240

240

240

240

240

240

240

240

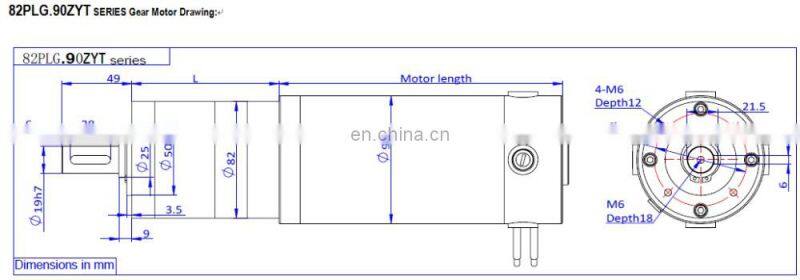

 82plg.90zyt SERIES heavy duty large torque geared dc motor, Helical gears High Torque upto 120Nm
