Automatic dc Door Motor Used for Sliding Door Opening and Gate Lifting
- SHANGHAI
- T/T Credit Card
You May Like
-
80ZYT Series Big Torque dc Worm Gearbox Motor , With Torque Arm
-
Godd Price High Torque Planetary Gear dc Motor, 250w Motor, 12v 24v Torque 20Nm to 30Nm
-
80ZYT01 DC MOTOR 24v 3200rpm, 200w + WORM GEARBOX 1:100
-
52mm Planetary Gearbox + 63mm dc Motor 36V PM DC Planetary Gear Motor, Rated 6.2Nm 370rpm
-
62mm Planetary Gearbox + 76mm 300w dc Motor Big Torque Planetary Gear Motor
-
56JX300K.63ZYT SERIES Permanent Magnet 24v 12v dc Gear Motor Specifications
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 63WG | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | customed | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brush |
Product Description

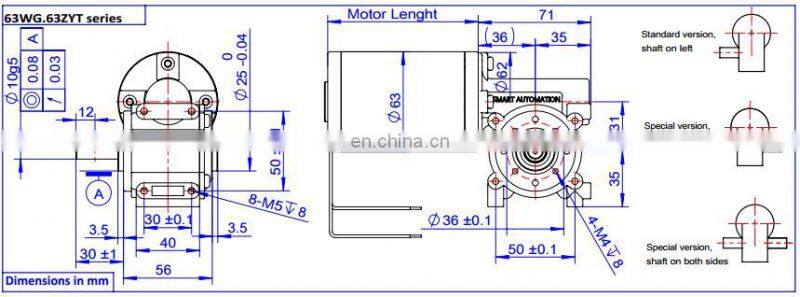

63WG.63ZYT SERIES PM DC WORM GEAR MOTOR
Motor Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 (Option for IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Motor Main Characteristics:
Model | Unit | 63ZYT01A/01L | 63ZYT02A/02L | 63ZYT03A/03L | |||
Rated Voltage | VDC | 24v (option for 12v up to 48vdc) | |||||
Rated Speed | Rpm | 3100 | 1550 | 3000 | 1800 | 3000 | 2000 |
Rated Torque | N.m | 0.15 | 0.12 | 0.31 | 0.25 | 0.41 | 0.35 |
No Load Speed | Rpm | 3600 | 1800 | 3500 | 2400 | 3500 | 2600 |
Weight | Kg | 1 | 1 | 1.2 | 1.2 | 1.35 | 1.35 |
Motor Length | Mm | 95 | 95 | 110 | 110 | 125 | 125 |
Output Power | W | 50 | 19 | 98 | 47 | 129 | 73 |
63WG Series Worm Gearbox Specifications:
Reduction ratio |
| 10 | 15 | 30 |
Efficiency |
| 0.65 | 0.55 | 0.45 |
Continuous torque | Ncm | Up to 1000(metallic gears) / Up to 400(non-metallic gears) | ||
Weight of gearbox | kg | 0.4 | ||
Axial load/radial load | N | 300/350 | ||

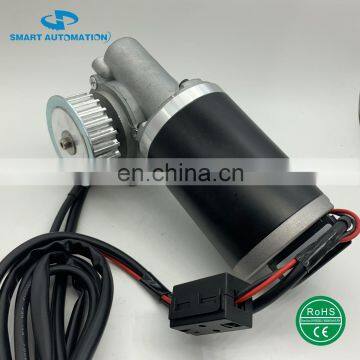

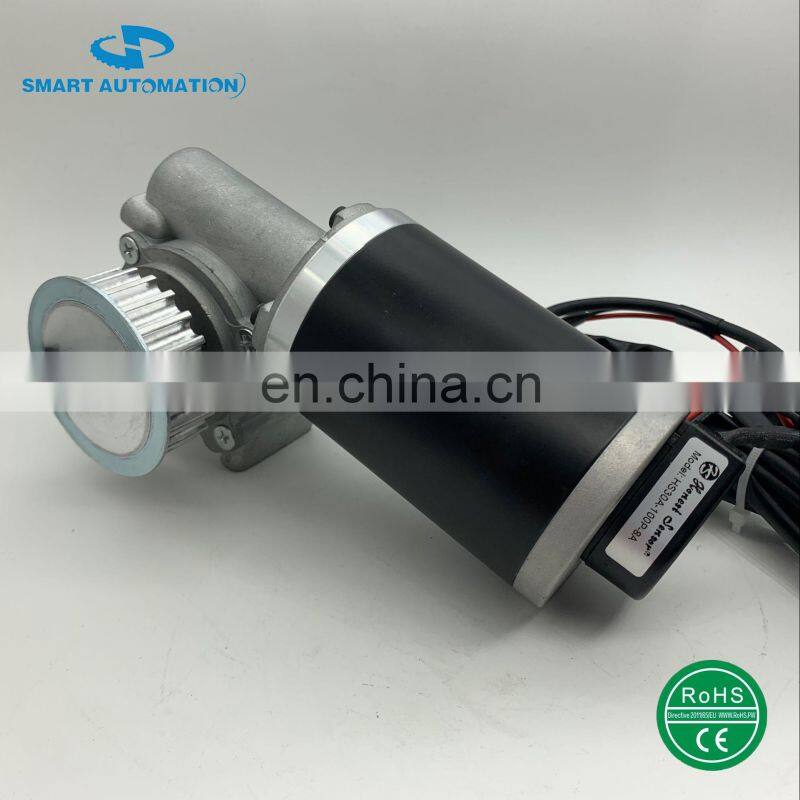

Motor pictures
Option for optical encoder

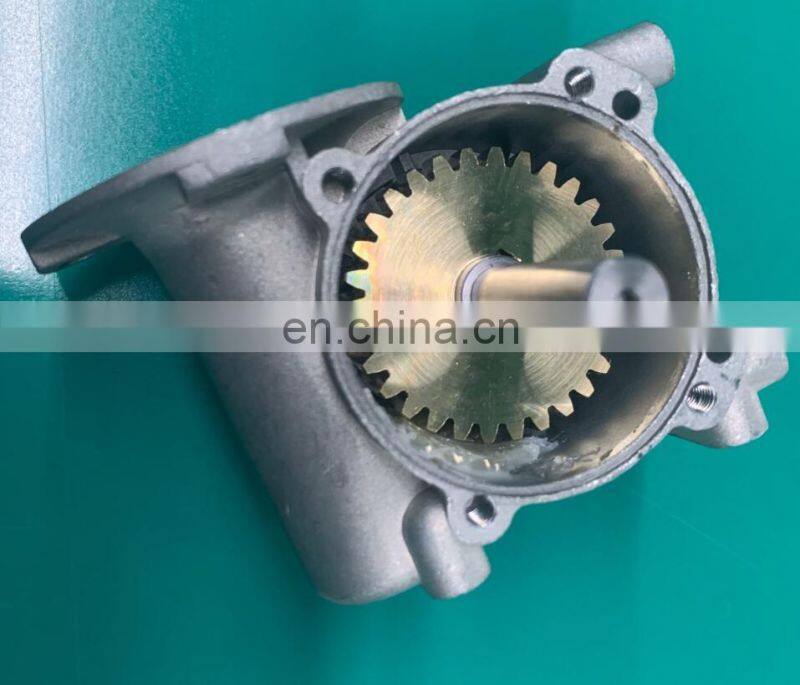

copper gear

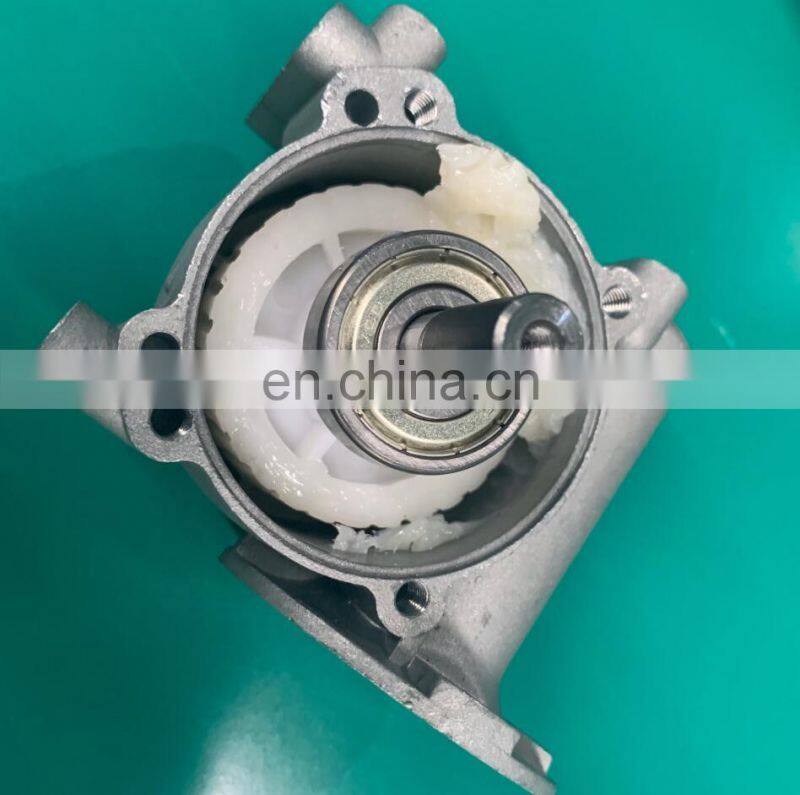

plastic gear
