52mm Planetary Gearbox + 63mm dc Motor 36V PM DC Planetary Gear Motor, Rated 6.2Nm 370rpm

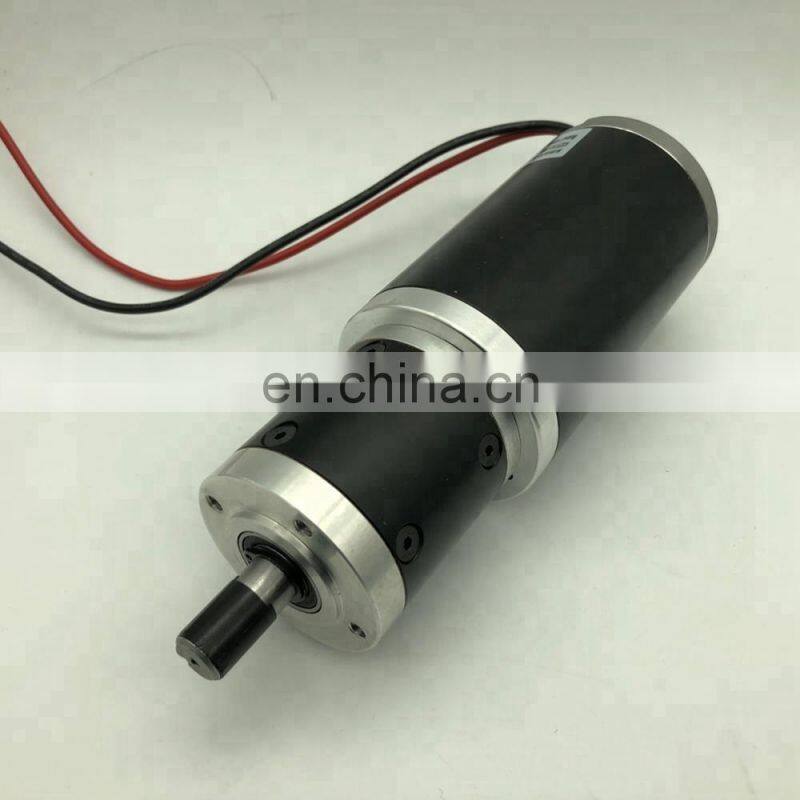

52mm Planetary Gearbox + 63mm dc Motor 36V PM DC Planetary Gear Motor, Rated 6.2Nm 370rpm photo-1

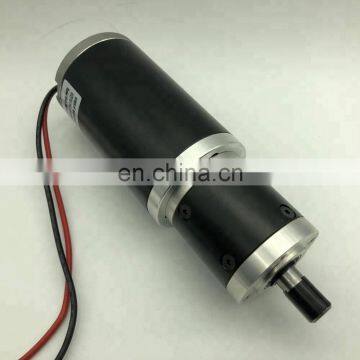

52mm Planetary Gearbox + 63mm dc Motor 36V PM DC Planetary Gear Motor, Rated 6.2Nm 370rpm photo-2
52mm Planetary Gearbox + 63mm dc Motor 36V PM DC Planetary Gear Motor, Rated 6.2Nm 370rpm photo-3
US$ 30 - 35 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
52PLG.52ZYT02
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Smart Automation
Place of Origin Jiangsu, China
Model Number 52PLG.52ZYT02
Type Gear Motor
Certification CE, ROHS
Torque 6.2Nm
Usage Boat, Car, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Drip-proof
Voltage(V) 36v
Continuous Current(A) customed
Speed(RPM) customed
Commutation Brush



PM DC PLANETARY GEAR MOTOR





52ZYT Series Motor Specification:

Ball bearing

Hard ferrite magnet,

2- poles

Protection class IP 50

Insulation class: B

CE and ROHS certified







52mm planetary gearbox + 63mm dc motor 36V PM DC Planetary Gear Motor, rated 6.2Nm 370rpm52mm planetary gearbox + 63mm dc motor 36V PM DC Planetary Gear Motor, rated 6.2Nm 370rpm52mm planetary gearbox + 63mm dc motor 36V PM DC Planetary Gear Motor, rated 6.2Nm 370rpm







We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder



 52mm planetary gearbox + 63mm dc motor 36V PM DC Planetary Gear Motor, rated 6.2Nm 370rpm
