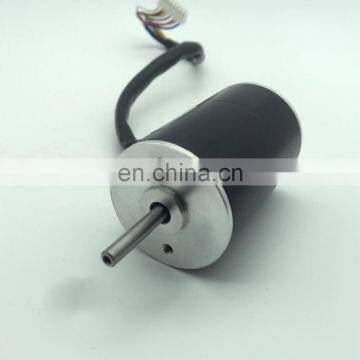

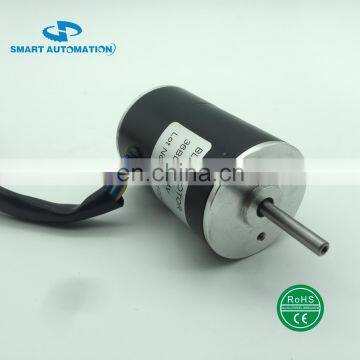

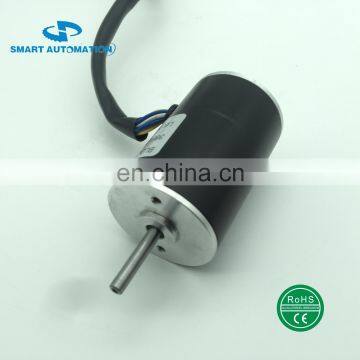

36BL Series 3 Phase 12v 24v High Speed 6000rpm 8000rpm Brushless dc Motor

Item

Specification

Winding type

Delta

Hall effect angle

120° (electrical angle)

Shaft run out

0.025mm

Radial play

0.02mm@450g

End play

0.08mm@450g

Max. radial force

15N@10mm from the flange

Max. axial force

10N

Insulation class

Class B

Dielectric Strength

500VDC for one minute

Insulation resistance

100MΩMin.500VDC

Lead No.

Lead Color

Lead Gauge

Function

DESCRIPTION

1

Red

UL1007/26AWG

VCC

SUPPLY VOLTAGE FOR HALL SENSORS

2

Black

GND

GROUND FOR HALL SENSORS

3

Yellow

HALL A

4

Green

HALL B

5

Blue

HALL C

6

Yellow

UL1007/20AWG

PHASE U

7

Green

 PHASE V

8

Blue

 PHASE W

Model

36BL01A

36BL02A

36BL03A

Number of phase

3

Number of pole

4

Voltage

V

24v(Option for 12v up to 48vdc)

No load speed

rpm

6200

8000

9500

Rated torque

mNm

36

60

75

Rated Speed

rpm

4800

6000

8000

Rated Current

A

2

3.5

4.5

Rated Power

W

18

40

63

Weight

g

185

210

250

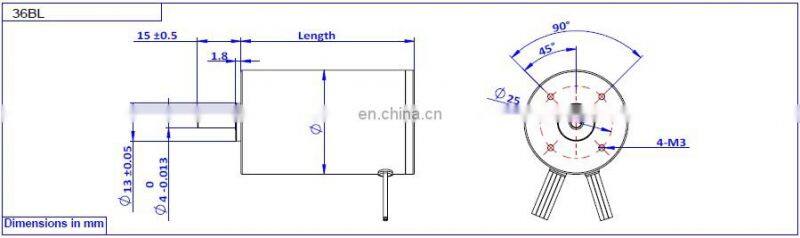

Length

mm

45

55

65
