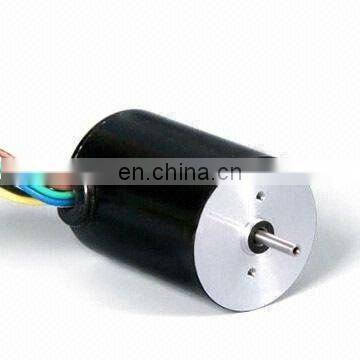

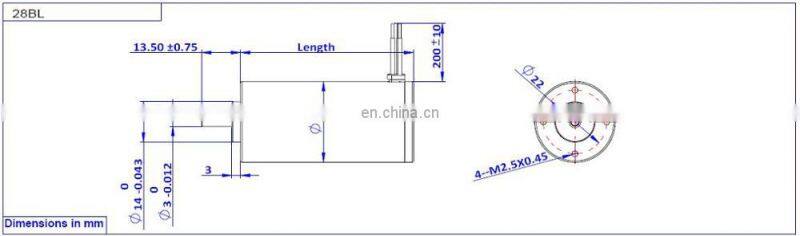

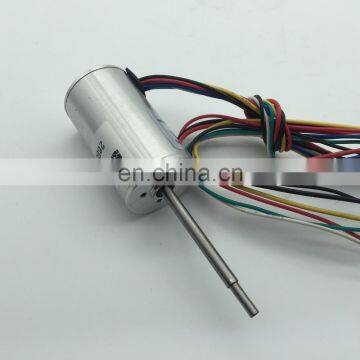

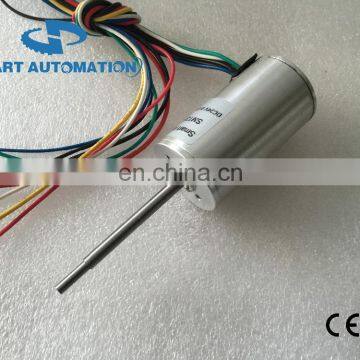

O.D28mm High Speed 6000rpm 8000rpm Brushless dc Motor 24v 12v Option

Item

Specification

Winding type

Delta

Hall effect angle

120° (electrical angle)

Shaft run out

0.025mm

Radial play

0.02mm@450g

End play

0.08mm@450g

Max. radial force

15N@10mm from the flange

Max. axial force

10N

Insulation class

Class B

Dielectric Strength

500VDC for one minute

Insulation resistance

100MΩMin.500VDC

Lead No.

Lead Color

Lead Gauge

Function

DESCRIPTION

1

Red

UL1007/26AWG

VCC

SUPPLY VOLTAGE FOR HALL SENSORS

2

Black

GND

GROUND FOR HALL SENSORS

3

Yellow

HALL A

4

Green

HALL B

5

Blue

HALL C

6

Yellow

UL1007/22AWG

PHASE U

7

Green

 PHASE V

8

Blue

 PHASE W

Model

28BL01A

28BL02A

28BL03A

Number of phase

3

Number of pole

4

Voltage

V

24v(Option for 12v up to 48vdc)

No load speed

rpm

8000

8000

8000

Rated torque

mNm

10

15

20

Rated Speed

rpm

6000

6000

6000

Rated Current

A

1.8

2.6

3.6

Rated Power

W

7

10

15

Weight

g

82

105

128

Length

mm

39

49

59
