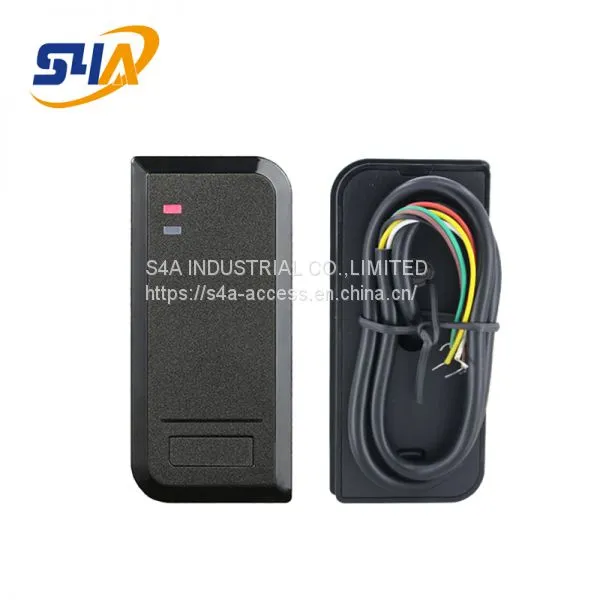

Waterproof IP66 Wiegand Reader Access RFID Card Reader (EM/HID/Mifare Cards)
Model No.: S2-RX 125KHz&13.56MHz
The S2-RX reader is an advanced 125KHz & 13.56MHz technology proximity reader.
It is atractively designed with a thin profile and modern appearance, and waterproof.
> Waterproof, conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: Hid card, EM card & Mifare card
> Reading range: 7 cm
> External LED Control & External Buzzer Control
Operating Voltage | 9~24V DC |
Frequency | 125KHz & 13.56MHz |
Card Type | 125KHz - EM & Hid Card |
13.56MHz - Mifare Card (ISO 14443A Compatible) | |
Reading Distance | 7 CM |
Output Format | Wiegand 26 bits |
(26~37 bits available upon request) | |
Operating Temperature | -40℃ ~ 60℃(-40°F ~ 140°F) |
Standby Current | <25mA |
Operating Humidity | 10%~95% RH |
Index of Protection | IP66 |
Dimensions | L103 x W48 x H19 (mm) |
