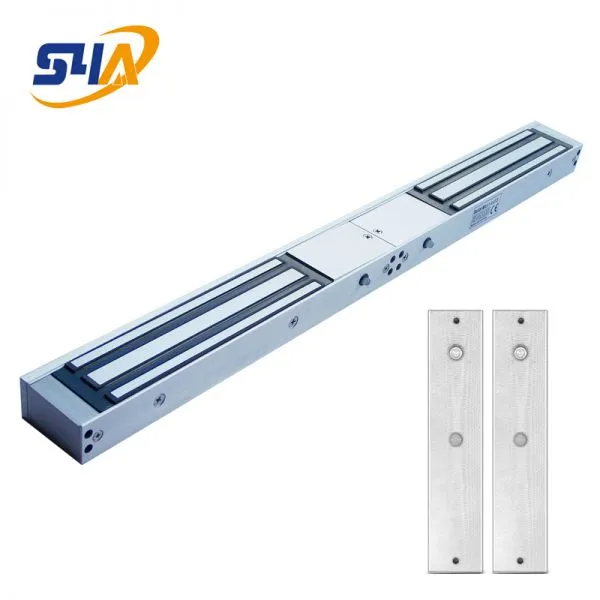

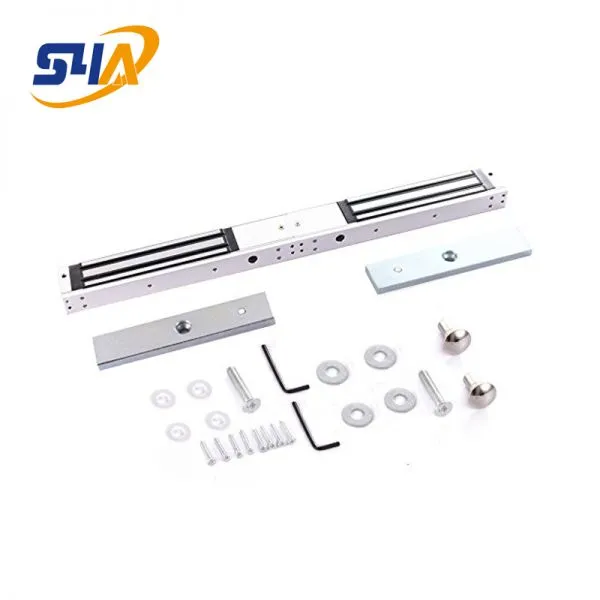

Double Swing gate Magnetic Lock use Wooden door and Glassdoor and Metal door and Fireproof door
Model No.: EL-800D
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-800D | Without indicator lights |
EL-800DS | With LED (Red only) |
EL-800DSD | With LED, door senor |
EL-800DST | Built-in LED, door sensor, and time delay |
Lock Dimension | 570Lx55Wx27.5H(mm) |
Armature Plate Dimension | 190Lx45Wx11H(mm) |
Holding Force | 350kgx2(800Lbsx2) |
Input Voltage | 12/24VDC+10% |
Current Draw | 480mAx2 at 12VDC 240mAx2 at 24VDC |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Signal Output | Need to order EL-D350S |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
