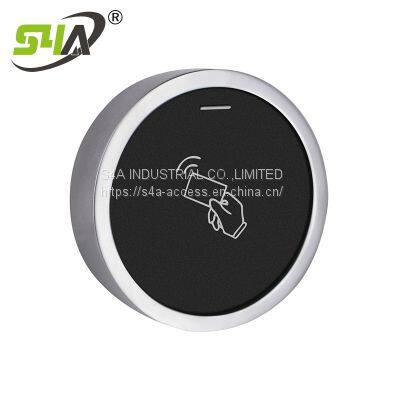

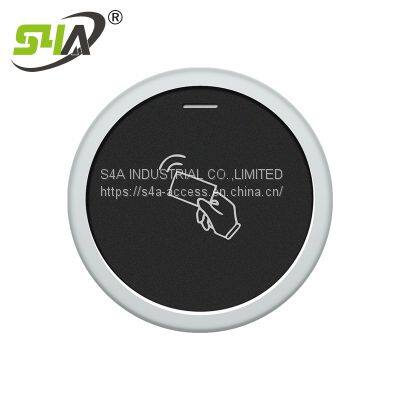

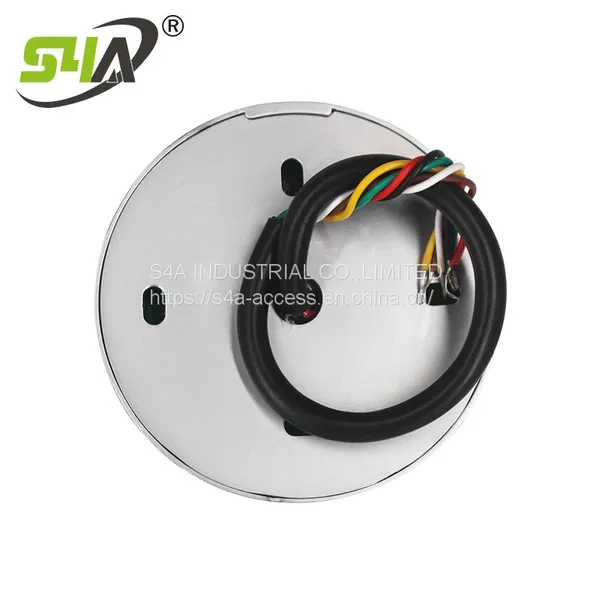

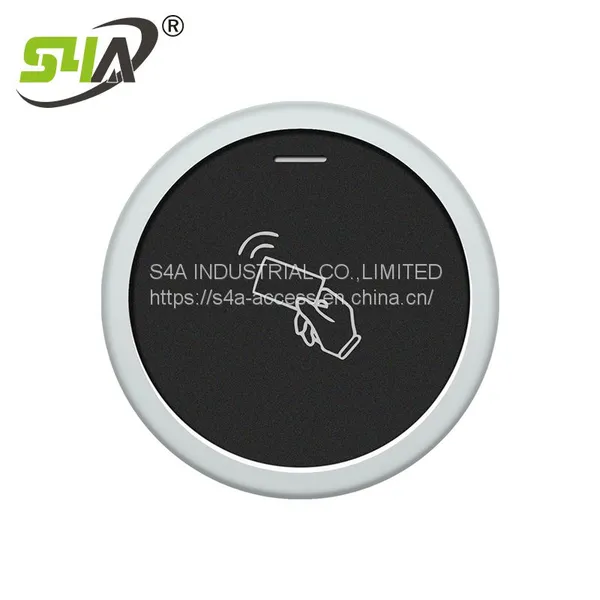

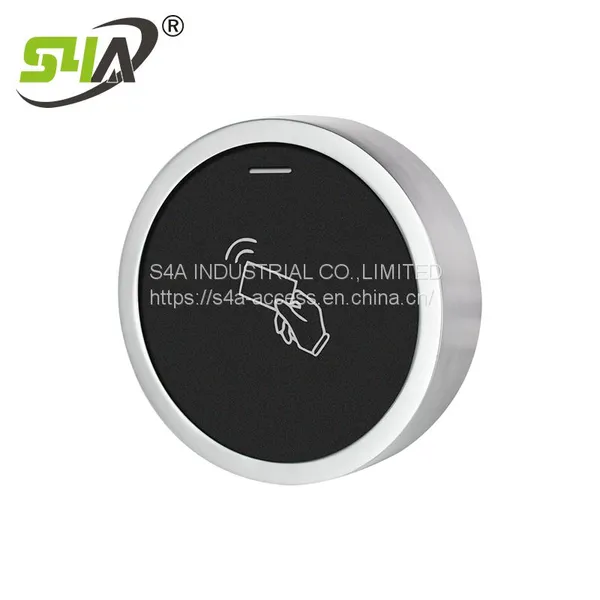

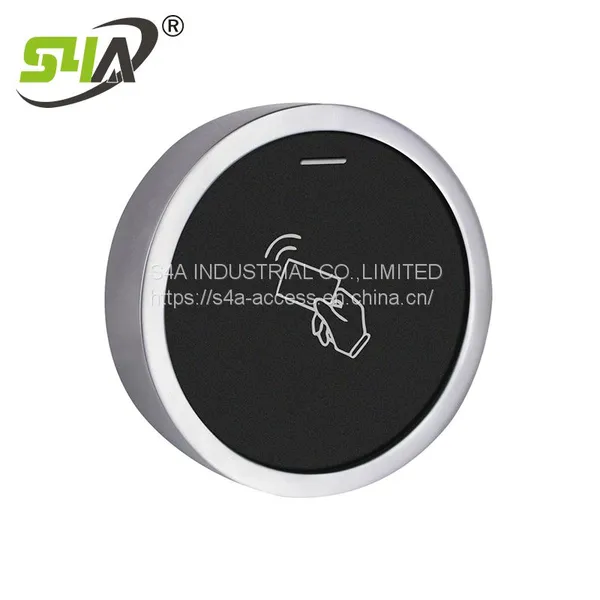

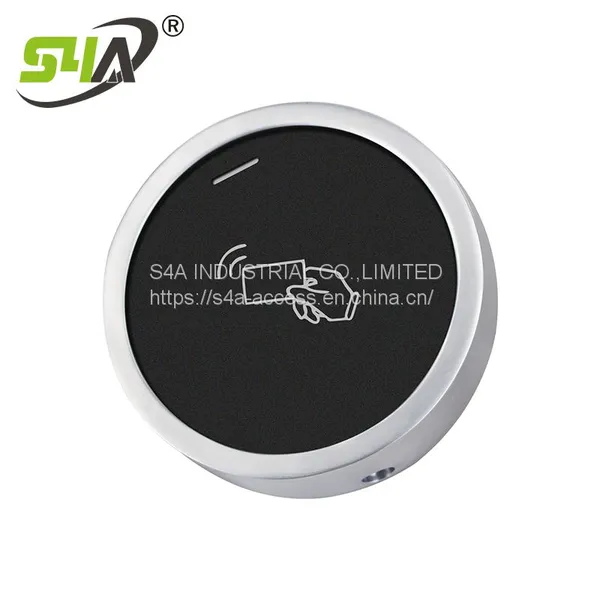

Circular Waterproof IP66 Metal Rfid Card Reader 125KHZ EM Cards
Model No.: S7-R EM
The S7-R (EM) reader is a metal case anti-vandal proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

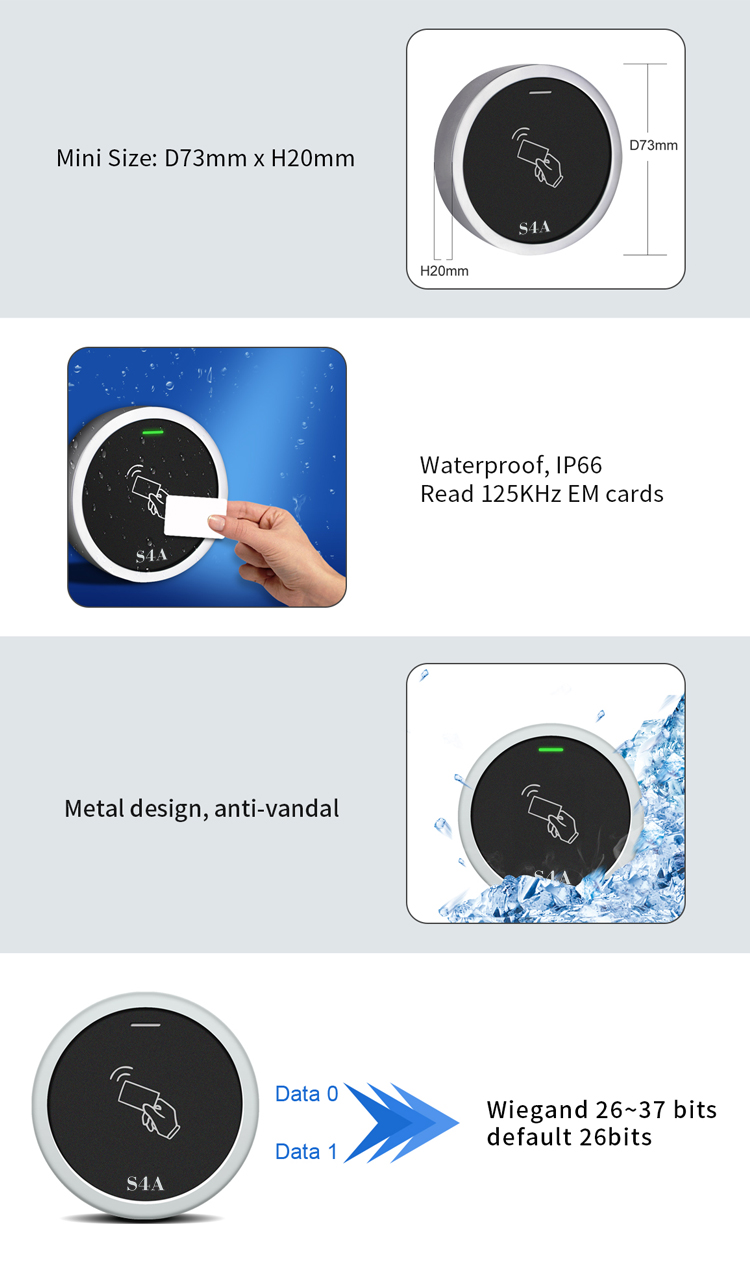

Features:
> Metal Case, anti-vandal
> Waterproof, conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: EM card
> Reading range: 3~8cm
> External LED Control & External Buzzer Control
Operating Voltage | 9~24V DC |
Frequency | 125KHz |
Card Type | EM Card |
Reading Distance | 3~8 CM |
Output Format | Wiegand 26 bits |
(26~37 bits available upon request) | |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Standby Current | <25mA |
Operating Humidity | 10%~98% RH |
Index of Protection | IP66 |
Dimensions | Diameter: 73mm, Thickness: 20mm |
