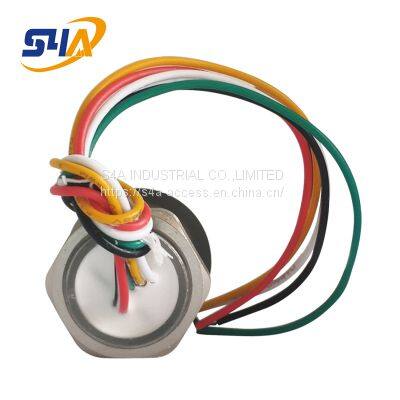

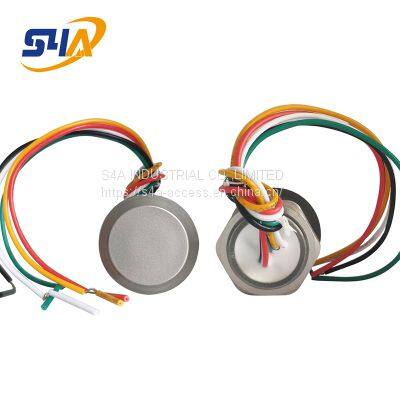

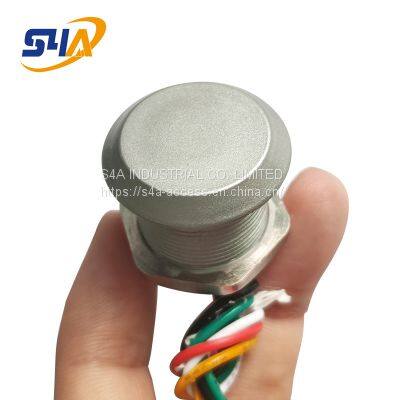

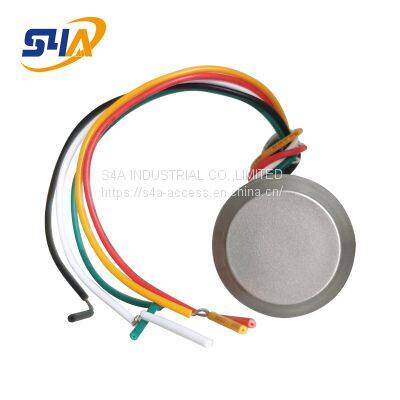

Metal Access Control Waterproof Mini Card Reader RFID Access Card Reader with IButton
Model No.: iButton EM, MF
iButton RFID embedded reader is designed for using in the network and standalone access control systems. iButton embedded reader supports 125KHz or 13.56MHz keys and connects to the controllers via Wiegand-26/34 protocol.
Model No. | iButton EM | iButton MF |
Purpose | ACS reader | |
Operating frequency | 125KHz | 13.56 MHz |
Key types | RFID (Proximity) | |
Reader standard | TK4100 | M1, Mifare Classic 1K, Mifare Classic 4K, |
Reader protocol | Wiegand-26, Wiegand-34 | |
RFID reading range (cm) | 0-3 | |
Keypad | No | |
Anti-vandal case | Yes | |
Waterproof and dustproof case | Yes | |
Keys copying protection | Yes | |
Current consumption (mA) | 35mA | |
Visual indication | 1 x Red LED | |
External control of LEDs and buzzer | No | |
Operating temperature (°C) | -30...+40 | |
Case material | Polyamide | |
Dimensions (mm) | D25 x 22 | |
