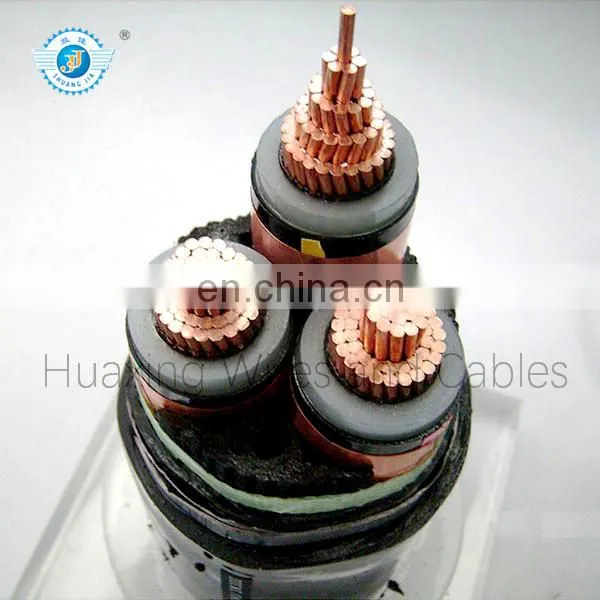

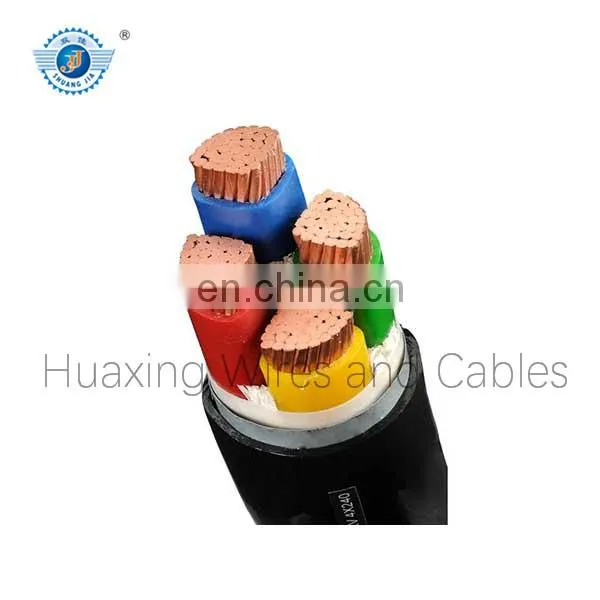

High Voltage three layers Co-extrusion XLPE Power Cable
- 1000 Meter / Meters per Month
- T/T Credit Card
- 35mm2 XLPE Insulated and PVC Sheathed Power Cable Power Cable
- 35mm2 XLPE Insulated and PVC Sheathed Power Cable Power Cable
- Hot Sale 240Mm2 Overhead Copper Power Cable
- Hot Sale 240Mm2 Overhead Copper Power Cable
- Transmission Line Copper Xlpe Insulated 6/10kv 800mm2 High Voltage Power Cable
- 0.6/1KV MCMK AMCMK THREE PHASE SPLIT CONCENTIC Screen-protected Power Cable
Product Details
Brand Name: | Shuangjia | Place of Origin: | China | Model Number: | Variety |
Type: | High Voltage | Application: | Overhead | Insulation Material: | XLPE |
Jacket: | PVC | Conductor Material: | Copper |
Product Description
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400
Part B : Construction:
Conductor: Solid or stranded Copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Part C : Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
Part D :Operating Features:
1.The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2.Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable
The hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;
Our alliance with our clients is forged by our commitment to Quality and pursuit for excellence. We take great pride in the customer service aspect of business. We believe that the Quality never exceeds the Cost of Failure.
Henan Huaxing Wires and Cable CO..lTD is a ISO9001/14001/18001 ,CCC,UL certificated Manufacturer of different kinds of Cables , products have exported to more than 50 countries .
It was found in 1984 and expanded in 2005, the workshop covers an area of 67,000 m2, building area is about 28,000 m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
"Huaxing Cable" is the Long-term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us
"Huaxing Cable" are certified by ISO 9001 ,14001,18001,CCC certificate ,UL Certificated and so on .
We Established controlling system of complete and liable quality and providing customers with the first - rate products;
We practice "Quality First" principle to each manufacturing location and "Quality Focus" principle to all the processes.
Packing :Wooden Drum /Wooden-Steel Drum
Packing Requirement : Customized
Delivery Port :Qingdao ,Tianjin Port ,China
