1.Description:
6/10kv XLPE Insulated cables
CU/XLPE/ PVC

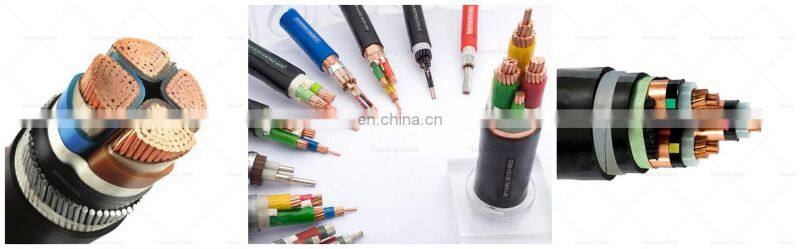

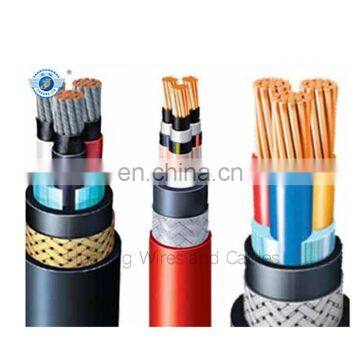

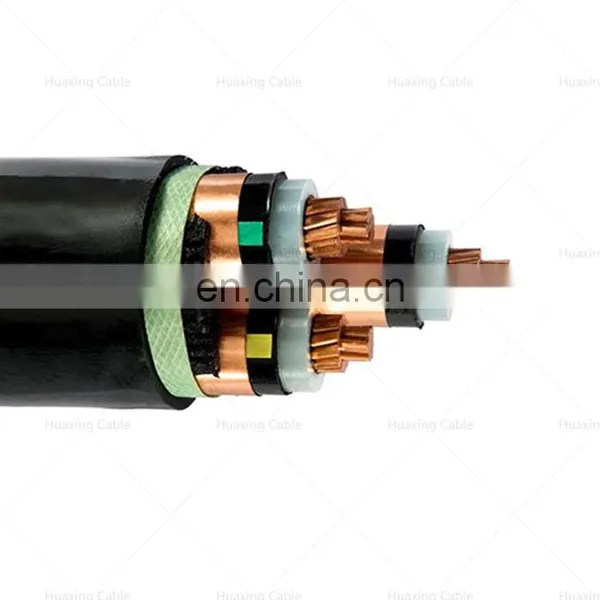

2.Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or customer requirement
3.Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
4.Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
5.Technical data
Rated voltage: 6/10kv
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
6.Certificates
CE, RoHS, CCC, ISO and more others at request
Technical Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. | Approx. |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1 × 25 | 7/2.14 | 3.4 | 2 | 20.0 | 598 | 0.727 | 21 | 140 | 150 |
| 1 × 35 | 7/2.52 | 3.4 | 2 | 22.0 | 719 | 0.524 | 21 | 175 | 180 |
| 1 × 50 | 10/2.52 | 3.4 | 2 | 23.0 | 884 | 0.387 | 21 | 205 | 215 |
| 1 × 70 | 14/2.52 | 3.4 | 2 | 24.0 | 1097 | 0.268 | 21 | 260 | 265 |
| 1 × 95 | 19/2.52 | 3.4 | 2 | 26.0 | 1378 | 0.193 | 21 | 315 | 315 |
| 1 × 120 | 24/2.52 | 3.4 | 2 | 28.0 | 1658 | 0.153 | 21 | 365 | 360 |
| 1 × 150 | 30/2.52 | 3.4 | 2 | 30.0 | 1967 | 0.124 | 21 | 415 | 405 |
| 1 × 185 | 37/2.52 | 3.4 | 2 | 31.0 | 2335 | 0.0991 | 21 | 475 | 455 |
| 1 × 240 | 48/2.52 | 3.4 | 2 | 34.0 | 2908 | 0.0754 | 21 | 565 | 530 |
| 1 × 300 | 61/2.52 | 3.4 | 2 | 36.0 | 3507 | 0.0601 | 21 | 645 | 595 |
| 1 × 400 | 61/2.97 | 3.4 | 2.5 | 39.0 | 4503 | 0.0470 | 21 | 750 | 680 |
| 1 × 500 | 61/3.23 | 3.4 | 2.5 | 42.0 | 5479 | 0.0366 | 21 | 865 | 765 |
| 1 × 630 | 61/3.50 | 3.4 | 2.5 | 48.0 | 6952 | 0.0283 | 21 | 990 | 860 |
| 1 × 800 | 91/3.20 | 3.4 | 2.6 | 52.0 | 7120 | 0.0221 | 21 | 1140 | 950 |
| 1 × 1000 | 91/3.75 | 3.4 | 2.8 | 57.0 | 10500 | 0.0176 | 21 | 1250 | 1040 |
| 3 × 25 | 7/2.14 | 3.4 | 2.3 | 41.0 | 895 | 0.727 | 21 | 120 | 125 |
| 3 × 35 | 7/2.52 | 3.4 | 2.4 | 44.0 | 2293 | 0.524 | 21 | 145 | 155 |
| 3 × 50 | 10/2.52 | 3.4 | 2.5 | 46.0 | 2812 | 0.387 | 21 | 175 | 180 |
| 3 × 70 | 14/2.52 | 3.4 | 2.6 | 50.0 | 3508 | 0.268 | 21 | 220 | 220 |
| 3 × 95 | 19/2.52 | 3.4 | 2.7 | 53.0 | 4402 | 0.193 | 21 | 265 | 265 |
| 3 × 120 | 24/2.52 | 3.4 | 2.8 | 56.0 | 5319 | 0.153 | 21 | 305 | 300 |
| 3 × 150 | 30/2.52 | 3.4 | 2.9 | 59.0 | 6309 | 0.124 | 21 | 350 | 340 |
| 3 × 185 | 37/2.52 | 3.4 | 3.0 | 62.0 | 7319 | 0.0991 | 21 | 395 | 380 |
| 3 × 240 | 48/2.52 | 3.4 | 3.2 | 68.0 | 9218 | 0.0754 | 21 | 470 | 435 |
| 3 × 300 | 61/2.52 | 3.4 | 3.4 | 72.0 | 11159 | 0.0601 | 21 | 535 | 485 |
| 3 × 400 | 61/2.97 | 3.4 | 3.6 | 81.0 | 15107 | 0.0470 | 21 | 610 | 520 |
We would like to introduce ourselves as an ISO9001/14001/18001 ,CCC ,UL certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .
Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
We are also the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
