1.U0/U: 0.6/1kV
2.Standard: IEC60502, BS7870, GB/T12706
3.Max. working temperature: 90 °C , can be 110 °C as requirement
4.Conductor: Class 1/2 annealed bare copper/aluminum solid or strands
5.Insulation: XLPE/PVC
6.Armored: STA
7.Sheath: PVC
8. Cross section area: 1.5~630mm2
9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E
10. Packing:Wooden drum or as requirement
11.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB
12.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
Applications

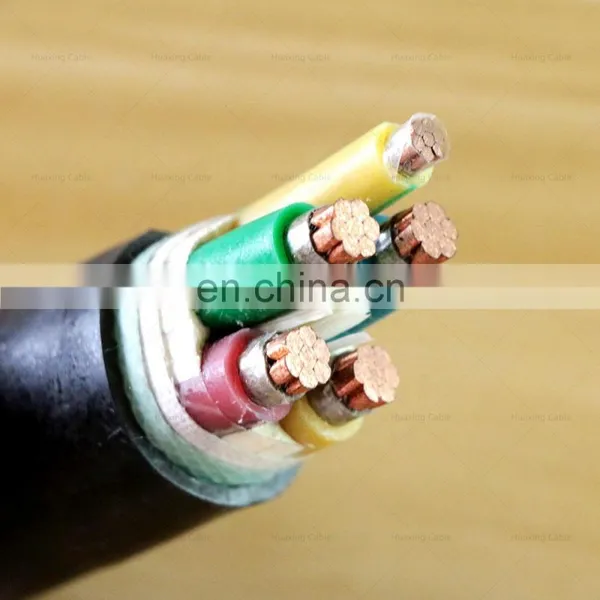

STA Armored Electric Cable YJV22 4+1 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.
For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.

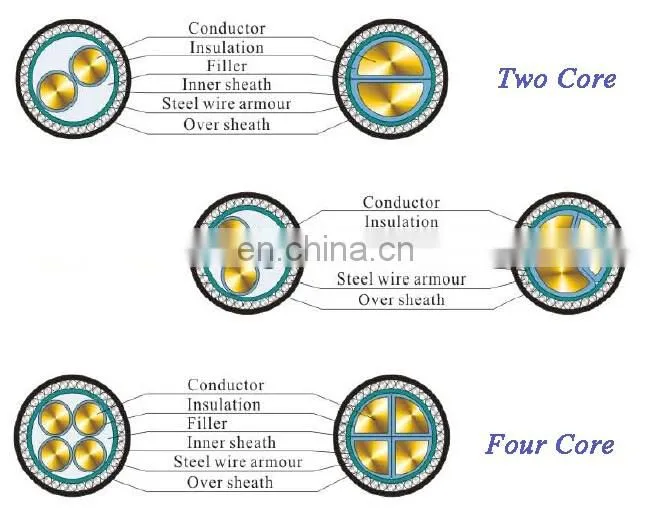

YJ: XLPE insulation
V: PVC insulation
V: PVC sheath
22: Galvanized steel tape armoring
32: Galvanized steel wire armoring
Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Covering Thickness | Steel Tape Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 2 × 4 | 1/2.25 | 0.7 | 1.2 | 2 × 0.2 | 1.8 | 15.0 | 433 | 4.61 | 3.5 | 34 | 45 |
| 2 × 6 | 1/2.76 | 0.7 | 1.2 | 2 × 0.2 | 1.8 | 16.0 | 500 | 3.08 | 3.5 | 43 | 57 |
| 2 × 10 | 7/1.38 | 0.7 | 1.4 | 2 × 0.2 | 1.8 | 19.0 | 673 | 1.83 | 3.5 | 60 | 77 |
| 2 × 16 | 7/1.78 | 0.7 | 1.4 | 2 × 0.2 | 1.8 | 21.0 | 857 | 1.15 | 3.5 | 83 | 105 |
| 2 × 25 | 7/2.14 | 0.9 | 1.6 | 2 × 0.2 | 1.8 | 24.0 | 1173 | 0.727 | 3.5 | 105 | 125 |
| 2 × 35 | 7/2.52 | 0.9 | 1.6 | 2 × 0.2 | 1.8 | 26.0 | 1449 | 0.524 | 3.5 | 125 | 155 |
| 2 × 50 | 10/2.52 | 1.0 | 1.8 | 2 × 0.2 | 1.8 | 25.0 | 1877 | 0.387 | 3.5 | 160 | 185 |
| 2 × 70 | 14/2.52 | 1.1 | 1.8 | 2 × 0.2 | 1.8 | 27.0 | 2454 | 0.268 | 3.5 | 200 | 225 |
| 2 × 95 | 19/2.52 | 1.1 | 2.0 | 2 × 0.2 | 1.9 | 30.0 | 2483 | 0.193 | 3.5 | 245 | 270 |
| 2 × 120 | 24/2.52 | 1.2 | 2.0 | 2 × 0.2 | 2.0 | 33.0 | 4213 | 0.153 | 3.5 | 285 | 310 |
| 2 × 150 | 30/2.52 | 1.4 | 2.0 | 2 × 0.5 | 2.0 | 38.0 | 5087 | 0.124 | 3.5 | 325 | 345 |

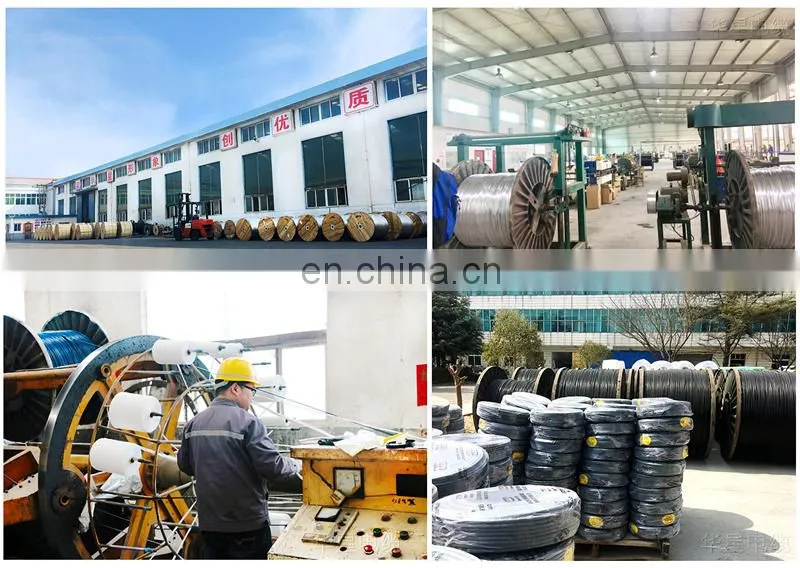

Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees ,our products have exported to more than 50 countries.
We are the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
