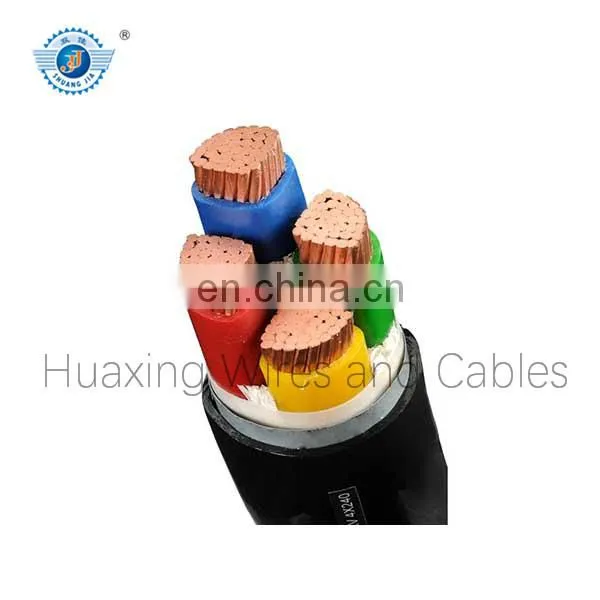

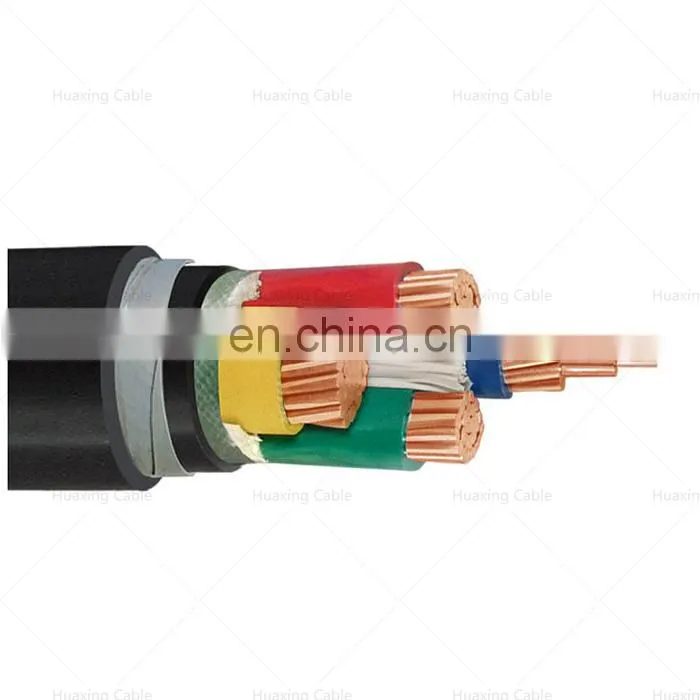

Help Center4 Core Armoured Electrical Cable Low Voltage 0.6 /1KV 4Cx120mm Double Steel Tape
Related Products
-
0.6/1kv Low Voltage 2 Phase Steel Tape Armoured Electrical Power CableUS$ 1 - 10MOQ: 3000 Meters -
N2xh, N2xh-J, N2xh-O, 0.6/1kv Solid Copper Halogen-Free and Flame-Resistant Power CableUS$ 0.1 - 2MOQ: 2000 Meters
-
Solar CableUS$ 0.2 - 5.8MOQ: 2000 Meters
-
Solar CableUS$ 0.2 - 6MOQ: 1 Meter
-
High Quality Solar Cable PV Cable WireUS$ 0.2 - 6MOQ: 1 Meter

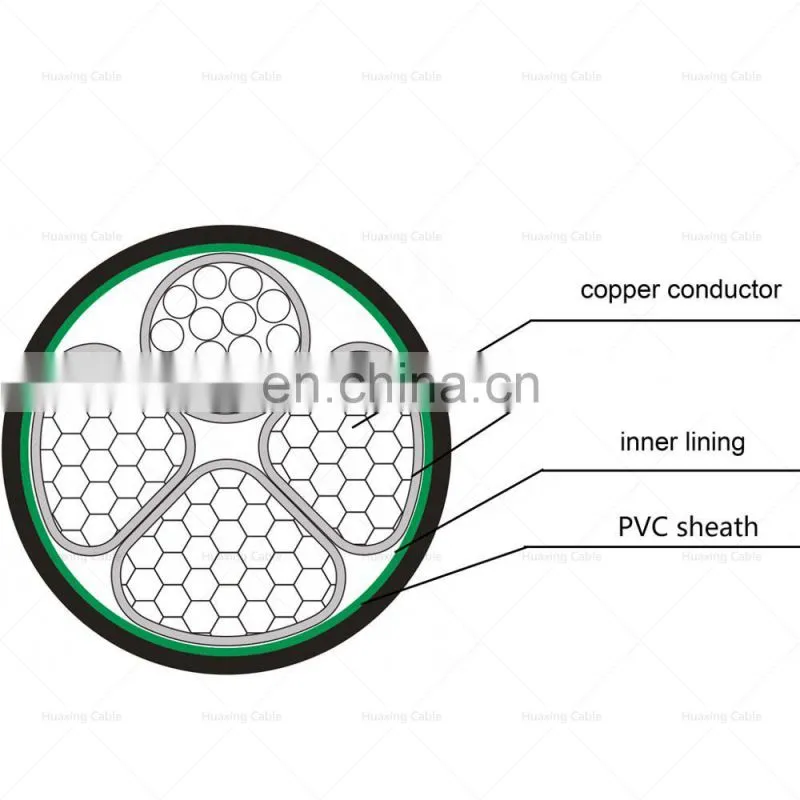

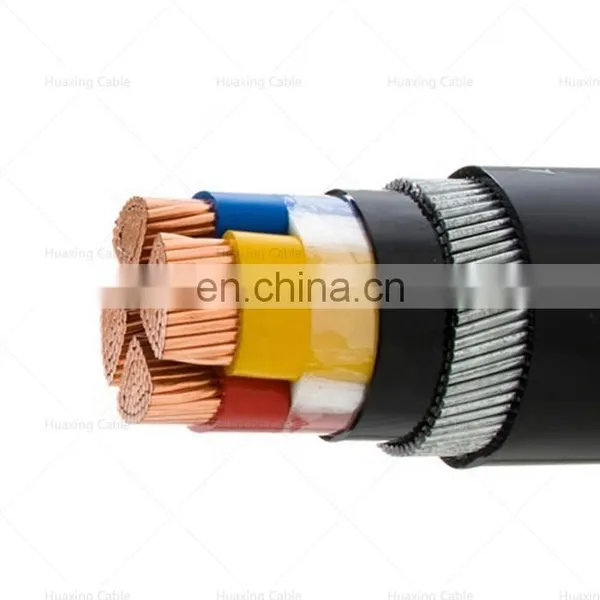

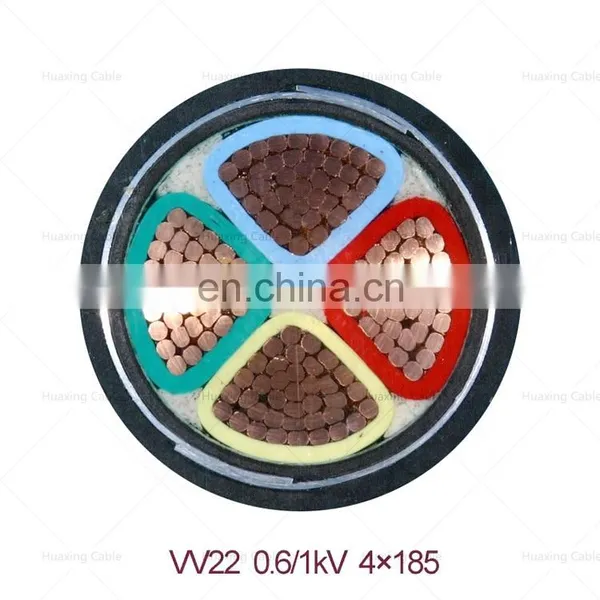

1.Construction
| Conductor | Compact Stranded Copper Conductor, Class 2 as per IEC 60228 |
| Circular solid Copper Conductor, Class 1 as per IEC 60228 | |
| Insulation | XLPE(Cross-linked polyethylene) |
| Filler | PP Filler |
| Wrapping Tape | Non woven |
| Inner Covering | Extruded PVC |
| Armour | Steel Wire |
| Overall Sheath | Termite Resistant PVC |
2.Applications
Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism,
heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple
structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
3.Standard
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
4.Technical data
Rated voltage: 0.6/1kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
5.Specifications
| Size | Strands | Insulation Thickness | Inner Cover Thicknes | Dia of Armour Wire | Sheath Thickness | App.O.D | App.Weight kg/km | Max.D.C Resistance at 20 ℃ | Testing Voltage A.C | Current Rating (A) | |
| mm2 | / | mm | mm | mm | mm | mm | Ω /km | kV/5min | in Air | In Soil | |
| 4 × 4 | 7/0.85 | 0.7 | 1.0 | 0.9 | 1.8 | 18.0 | 699 | 4.61 | 3.5 | 34 | 45 |
| 4 × 6 | 7/1.04 | 0.7 | 1.0 | 1.25 | 1.8 | 19.0 | 820 | 3.08 | 3.5 | 43 | 57 |
| 4 × 10 | 7/1.38 | 0.7 | 1.0 | 1.25 | 1.8 | 22.0 | 1233 | 1.83 | 3.5 | 60 | 77 |
| 4 × 16 | 7/1.78 | 0.7 | 1.0 | 1.6 | 1.8 | 24.5 | 1550 | 1.15 | 3.5 | 83 | 105 |
| 4 × 25 | 7/2.14 | 0.9 | 1.0 | 1.6 | 1.8 | 29.2 | 2036 | 0.727 | 3.5 | 105 | 125 |
| 4 × 35 | 7/2.52 | 0.9 | 1.0 | 2.0 | 1.9 | 32.5 | 2501 | 0.524 | 3.5 | 125 | 155 |
| 4 × 50 | 10/2.52 | 1.0 | 1.0 | 2.0 | 2.0 | 33.0 | 3064 | 0.387 | 3.5 | 160 | 185 |
| 4 × 70 | 14/2.52 | 1.1 | 1.0 | 2.0 | 2.1 | 37.0 | 3974 | 0.268 | 3.5 | 200 | 225 |
| 4 × 95 | 19/2.52 | 1.1 | 1.2 | 2.0 | 2.3 | 43.0 | 5032 | 0.193 | 3.5 | 245 | 270 |
| 4 × 120 | 24/2.52 | 1.2 | 1.2 | 2.5 | 2.5 | 45.0 | 6327 | 0.153 | 3.5 | 285 | 310 |
| 4 × 150 | 30/2.52 | 1.4 | 1.4 | 2.5 | 2.7 | 51.0 | 7765 | 0.124 | 3.5 | 325 | 345 |
| 4 × 185 | 37/2.52 | 1.6 | 1.4 | 2.5 | 2.8 | 56.0 | 9205 | 0.0991 | 3.5 | 375 | 390 |
| 4 × 240 | 48/2.52 | 1.7 | 1.4 | 2.5 | 3.0 | 62.0 | 11444 | 0.0754 | 3.5 | 440 | 450 |
| 4 × 300 | 61/2.52 | 1.8 | 1.6 | 2.5 | 3.2 | 67.0 | 13830 | 0.0601 | 3.5 | 505 | 515 |
| 4 × 400 | 61/2.97 | 2.0 | 1.6 | 3.15 | 3.5 | 74.0 | 19673 | 0.0470 | 3.5 | 570 | 575 |
