Armored Cable Copper conductor underground power cable 33KV

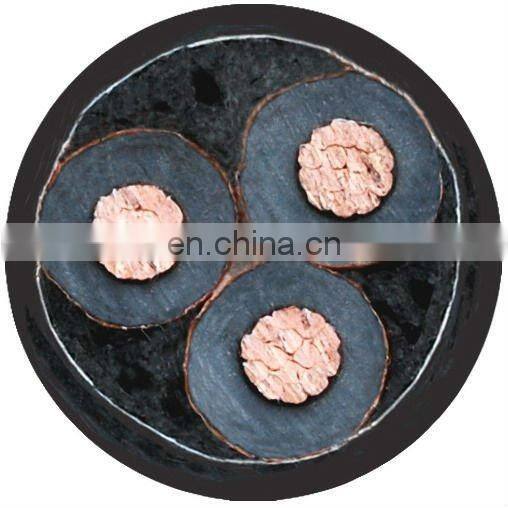

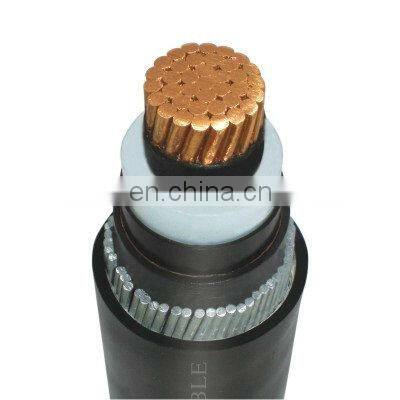

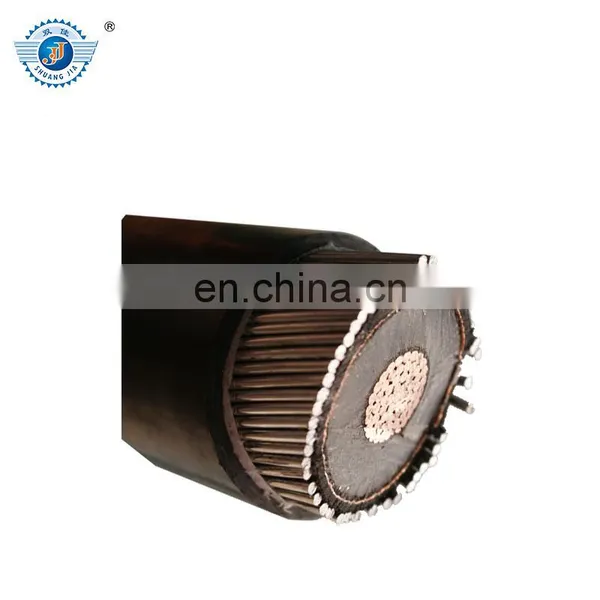

Constructions
1Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
2Insulation: XLPE(cross-linked polyethylene) rated at 90C Deg
3Sheath: PVC type ST2 to IEC 60502, black
Applications
Suitable for use in power distribution lines or fixed installationswith rated voltage up to 35KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.
Standards
International: IEC 60502, IEC 60228
Chinese standard: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Performance characteristics:
Max conductor operating temperature: 90 °C
Short circuit temperature: 250 °C no more than 2 seconds
Environment temperature of laying: 25 °C (in air) 15 °C (underground)
Depth of laying in direct: 100cm
Coefficient of thermal resistivity of soil: 100 °C .cm/w
Coefficient of thermal resistivity of PVC: 700 °C .cm/w
