Specificate:
This product is widely used in the construction of buildings airports, power transportation, urban and rural power network refor

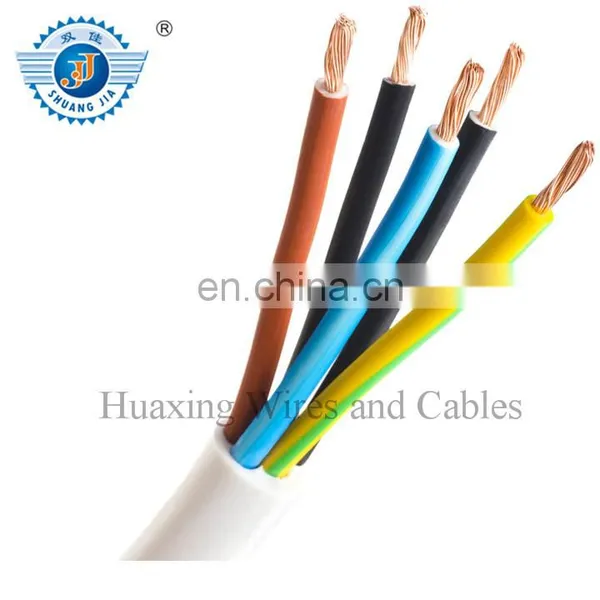

0.6/1kv PVC sheath cable.
Number Of core: 1 core, 2 core, 3 core, 4 core, 5 core
Voltage: 0.6/1KV
1) Copper (aluminum) cores / XLPE insulated / PVC(PE) sheathed power cable
2) Copper (aluminum) cores /XLPE insulated /steel tape armored/ PVC ( PE) sheathed power cable
3) Copper (aluminum) cores /XLPE insulated / thin steel wire armored/ PVC ( PE) sheathed power cable
4) Copper (aluminum) cores /XLPE insulated / thick steel wire armored/ PVC ( PE) sheathed power cable
The products can be produced according to our factory specification which is equivalent to the standard IEC60502. Their structures are simple. The permissible maximum operating temperature is 90C. It is convenient for using, and they can be laid with no restriction of different elevation.
Feature:
Model | Name | Main Application |
V V VLV | PVC Insulated Sheathed Power Cable | For laying in doors, pipe and kin tunels, but unable to bear pulling force. |
V V22 VLV22 | PVC Insulated steel tape armoured and PVC sheathed power cable | For laying on in indoor, tunels and underground, able to bear pulling force and pressure |
V V32 VLV32 | PVC insulated fine steel wire armoured and PVC sheathed power cable | For laying indoor, tunels and water, bear certain axis pulling force |
ZR-V V ZR-VLV | PVC insulated PVC sheathed flame retardant power cable | For laying indoor, pipe and kin tunels, but unable to bear pulling force and pressure. |
ZR- VLV22 | PVC insulated steel tape armoured and PVC sheathed flame retardant power cable | For laying indoor, tunnels and underground, able to bear pulling force and pressure |
ZR-V V32 ZR-VLV 32 | PVC insulated fine steel wire armoured and PVC sheathed flame retardant power cable | For laying indoor, tunnels and water, able to bear pulling force and pressure. |
ZR-V V42 ZR-VLV42 | PVC insulated steel wire armoured and PVC sheathed flame retardant power cable | For laying tunels, water and other upright place, bear certain axis pulling force |
Packing: Standard wooden drum
Shipping: FOB/CIF QINGDAO
