Specifications
1. 240mm2 power cable
2. Voltage: 0.6KV-35KV
3. Armored or unarmored is OK
4. OEM, OBM is welcomed

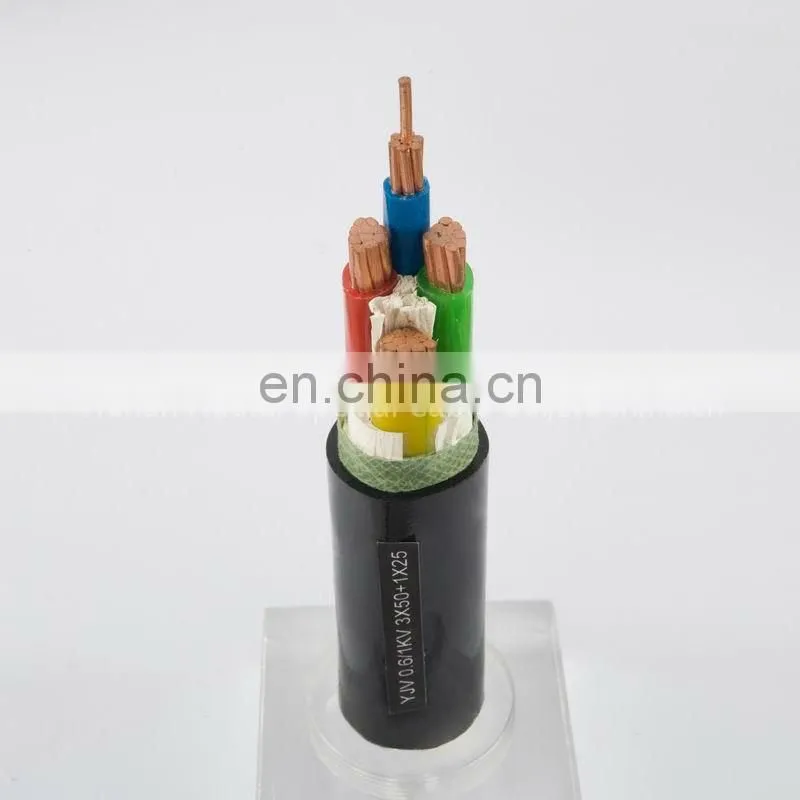

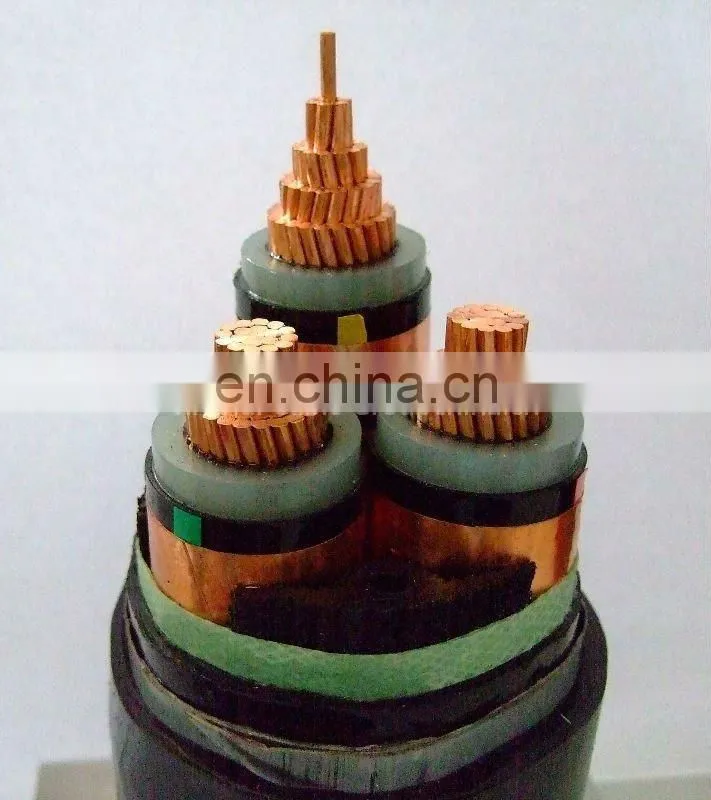

0.6/1KV PVC Insulated 240mm2 POWER CABLE
Application:
It is used to transmit and distribute power in power transmission and distribution system of 1kV. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Using features:
1. Rated voltage: Uo/U:3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).
2. No. of core: Single core or three cores.
3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250oC.
Type |
Name |
Application |
|
CU |
AL |
||
VV |
VLV |
PVC insulated & sheathed power cable |
For laying indoors,in tunnels and in ducts,unable to bear extarnal mechanical forces. |
VV22 |
VLV22 |
PVC insulated & sheathed steel tape armour power cable |
Laying in the ground, a fire-resistant, unable to bear extarnal mechanical forces |
ZRVV |
ZRVLV |
flame resistance PVC insulated & sheathed power cable |
For laying indoors,in tunnels and in ducts,unable to bear extarnal mechanical forces. |
ZRVV22 |
ZRVLV22 |
flame resistance PVC insulated & sheathed steel tape armour power cable |
Laying in the ground, a fire-resistant, unable to bear extarnal mechanical forces |
NHVV |
NHVLV |
fire resistance PVC insulated & sheathed power cable |
For laying indoors,in tunnels and in ducts,unable to bear extarnal mechanical forces. |
